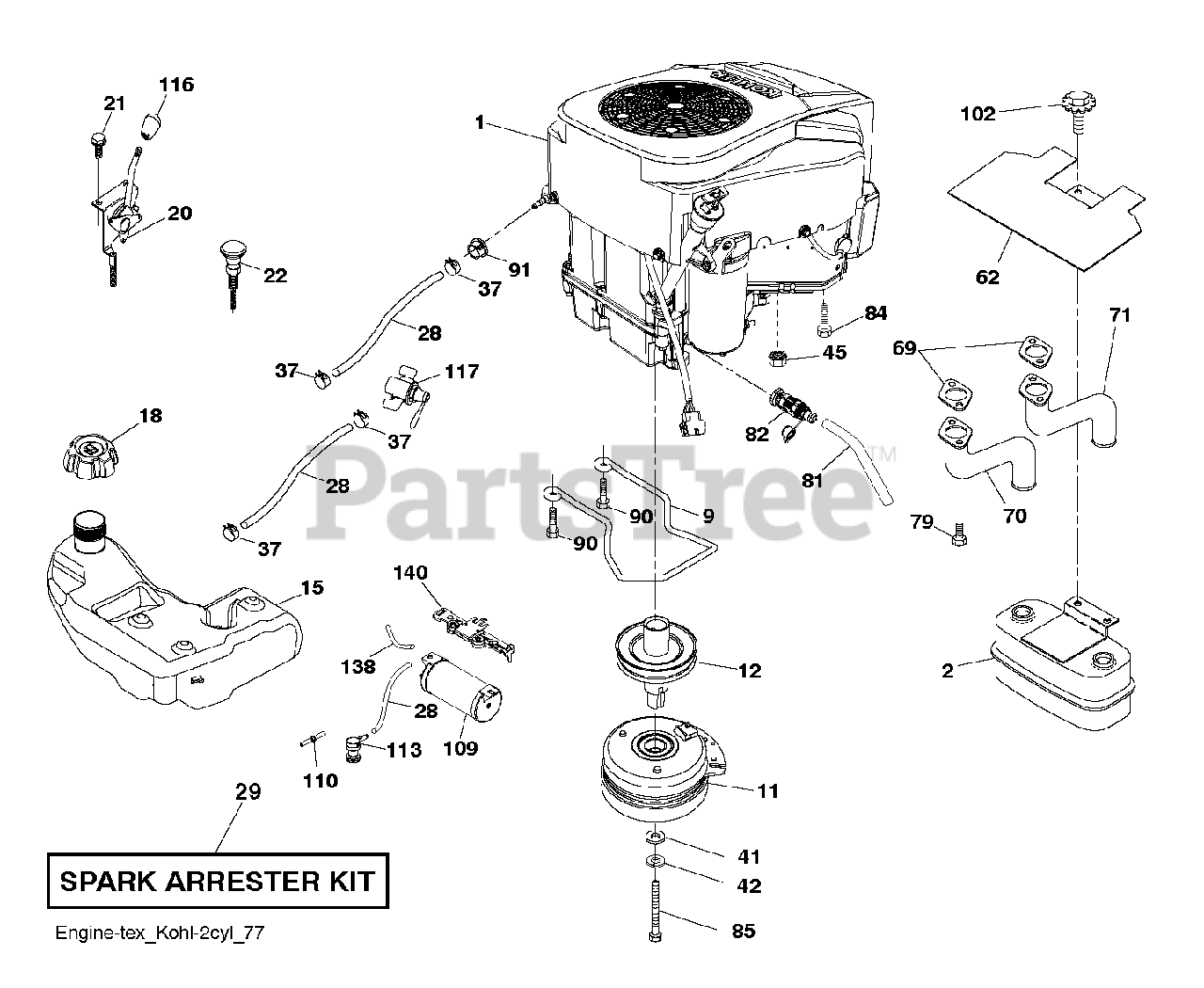

YT 42 DXLS (960430281-00) - Husqvarna 42" Yard Tractor (2017-11) ENGINE Parts Diagram

42" Yard Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KAWA MODEL NO FR651V-AS28 (581411101)

$

$

Not available

2

Husqvarna 589818701

Muffler Assembly, Twin MN

$44.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$278.99

$

In Stock, only 1 left!

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$30.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532422901

TANK.ASM.FUEL.4R.GAL.CARB.17
(Superseded to 532422902)

$

$

Not available

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587631703

THROTTLE.KOHL.PRO.#88PAD_46"

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, only 2 left!

0

28

Husqvarna 587044864

Fuel Hose, 1/4" Low Perm

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 19

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

70

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

$17.99

$

In Stock, Qty 10

0

71

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

$17.99

$

In Stock, Qty 9

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 13

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$4.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

109

Husqvarna 585977401

CANISTER CARB, FLEX TECH, 6.3

$48.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

$

$

Not available

116

Husqvarna 539132624

KNOB - SHIFT

$7.49

$

In Stock, Qty 12

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 1 left!

0

138

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

$

$

Not available

140

Husqvarna 585977301

BRACKET BRACKET, CARBON CAN, F

$4.99

$

Usually ships in 3-10 days

0
