YT 42 DXLS (960480084-01) - Husqvarna 42" Yard Tractor (2015-07) ENGINE Parts Diagram

42" Yard Tractor

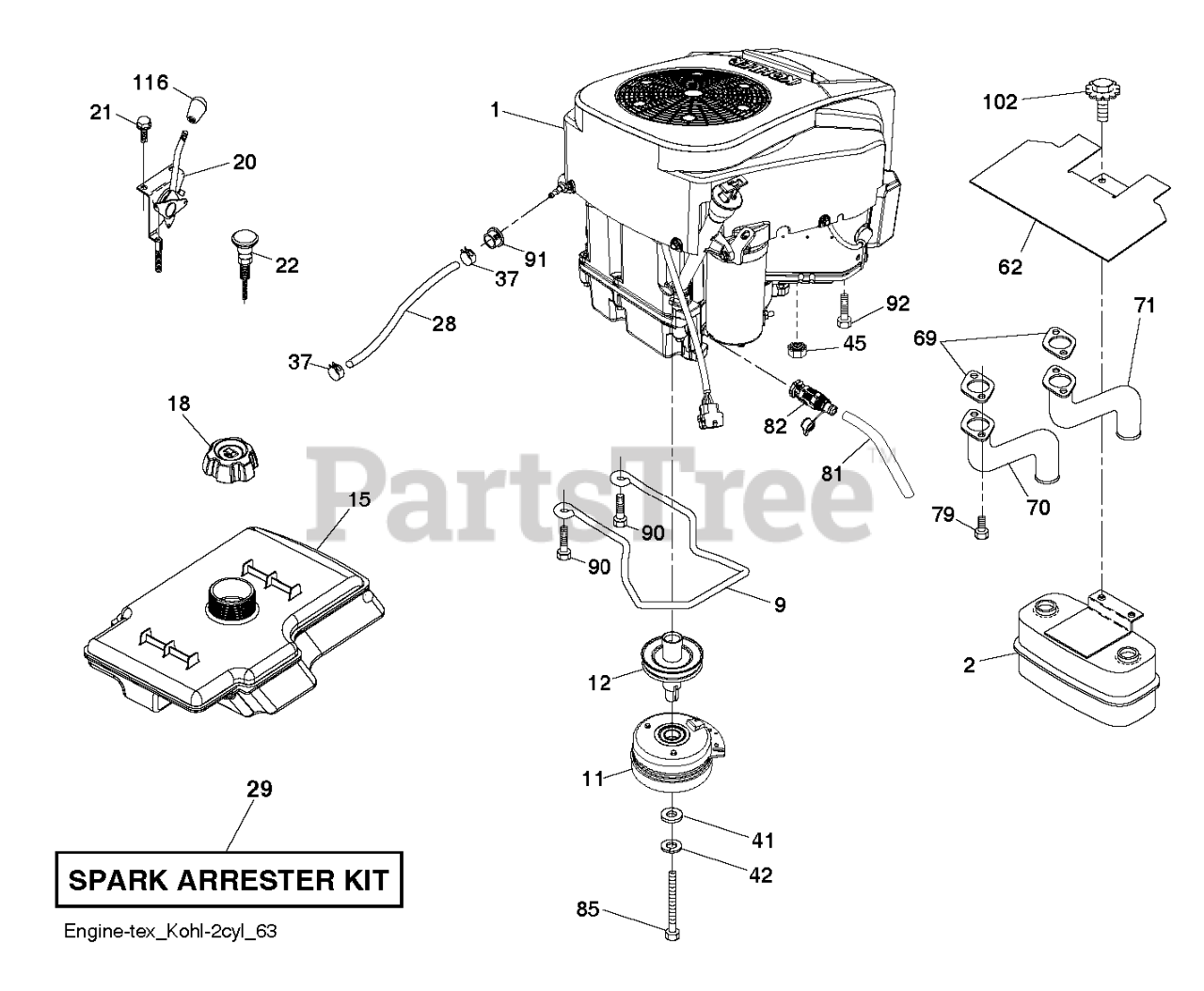

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KOHLER MODEL KT735-3022 (585446201)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

9

Husqvarna 584908001

KEEPER BELT ENGINE
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$359.99

$

In Stock, only 1 left!

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$39.99

$

In Stock, only 1 left!

0

15

Husqvarna 532418179

FUEL TANK
(Superseded to 583462301)

$

$

Not available

18

Husqvarna 584248701

CAP.ASSY.FUEL.3".N-EPA.BLK.428

$17.99

$

In Stock, only 2 left!

0

20

Husqvarna 532426184

CONTROL.THROTTLE.PRO.KOHLER

$39.99

$

In Stock, only 2 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, only 4 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

$26.99

$

In Stock, Qty 6

0

71

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

$22.99

$

In Stock, only 3 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

85

Husqvarna 871170780

BOLT.HEX.7/16-20 X 5
(Superseded to 501606701)

$7.49

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532132624

AXLE PIN

$

$

Not available
