YT 42 LS (960430230-00) - Husqvarna 42" Yard Tractor (2016-09) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

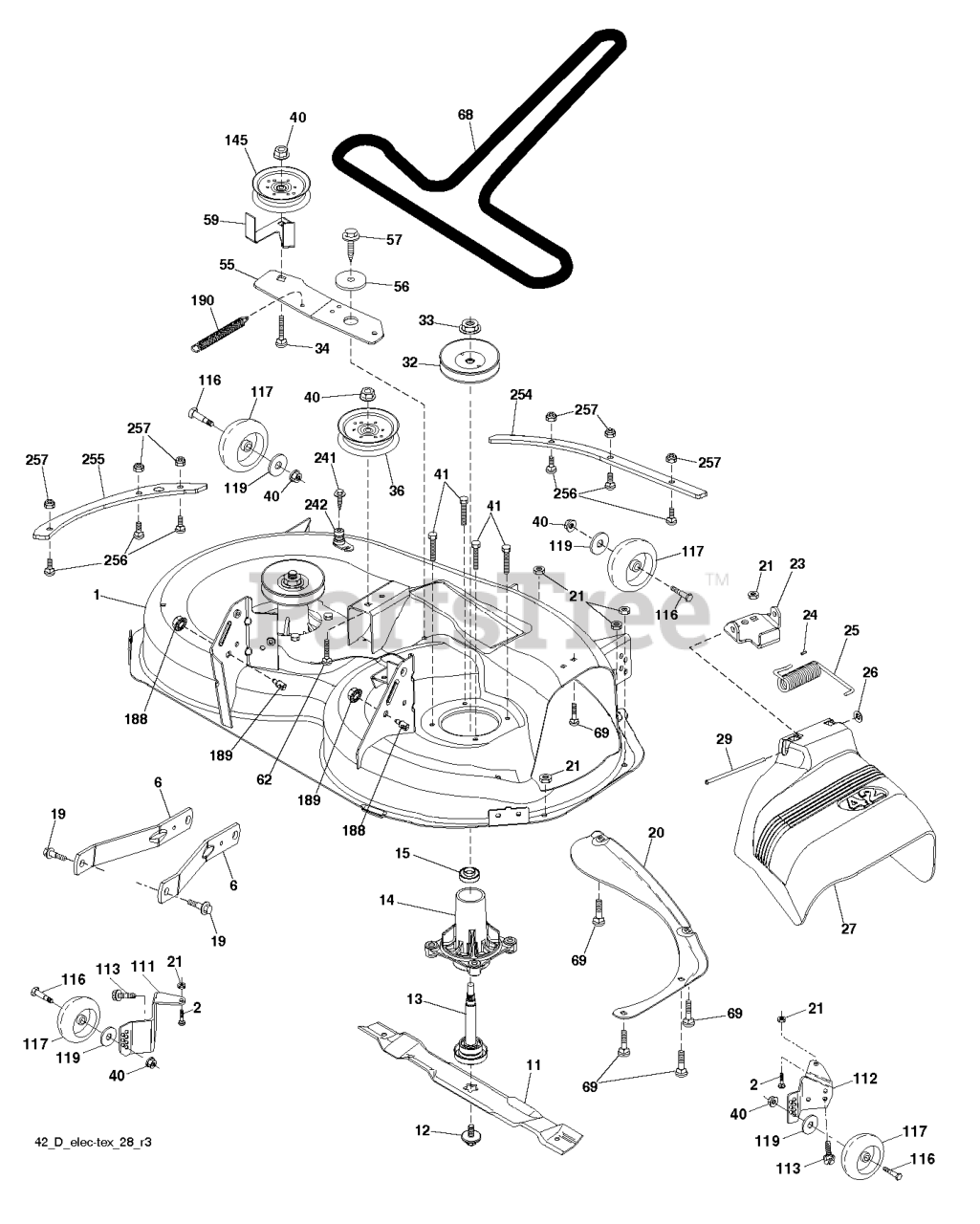

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

256

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$21.99

$

In Stock, Qty 20+

0

257

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 16

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

--

Husqvarna 532416405

COUPLING.QUICK CONNECT

$9.99

$

In Stock, Qty 14

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 532441275

DECK.SVC.42"2GW
(Superseded to 532418283)

$478.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 18

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$3.99

$

In Stock, Qty 17

0

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: "INCL HOUSING, SHAFT ASSEMBLY, AND BEARING ONLY- PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCL"

$71.99

$

In Stock, Qty 20+

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$37.99

$

In Stock, Qty 11

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$43.99

$

In Stock, Qty 20+

0

62

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 6

0

68

Husqvarna 532144959

BELT V SECONDARY

$41.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$33.99

$

In Stock, Qty 20+

0

Husqvarna 586449701

DECK.ASM.SVC.42B.E.4GWB.TEX
(Superseded to 598602801)

$478.99

$

Usually ships in 3-10 days

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 15

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$21.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 17

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

255

Husqvarna 585317005

PLATES.RENFRCE.42DECK.X431SIDE

$15.99

$

In Stock, only 2 left!

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

190

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$14.99

$

In Stock, Qty 20+

0

55

Husqvarna 532437110

IDLER.ARM.42"
(Superseded to 531171201)

$7.49

$

In Stock, Qty 15

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.99

$

In Stock, Qty 20+

0

111

Husqvarna 532404784

BRKT.WHEEL.GAUGE.LH.42"
(Superseded to 531170801)

$17.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$14.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

116

Husqvarna 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED
(Superseded to 532110485)

$17.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 5

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

112

Husqvarna 532404785

BRKT.WHEEL.GAUGE.RH.42"
(Superseded to 531170901)

$15.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 15

0

20

Husqvarna 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 6

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

254

Husqvarna 585316805

PLATES.RENFRC.42DECK.PT431FRNT

$14.99

$

Usually ships in 3-10 days

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0
