YT 950 KH (13AQ91GP897) - Columbia 50" Yard Tractor (2012) Mower Deck 50-Inch Parts Diagram

50" Yard Tractor

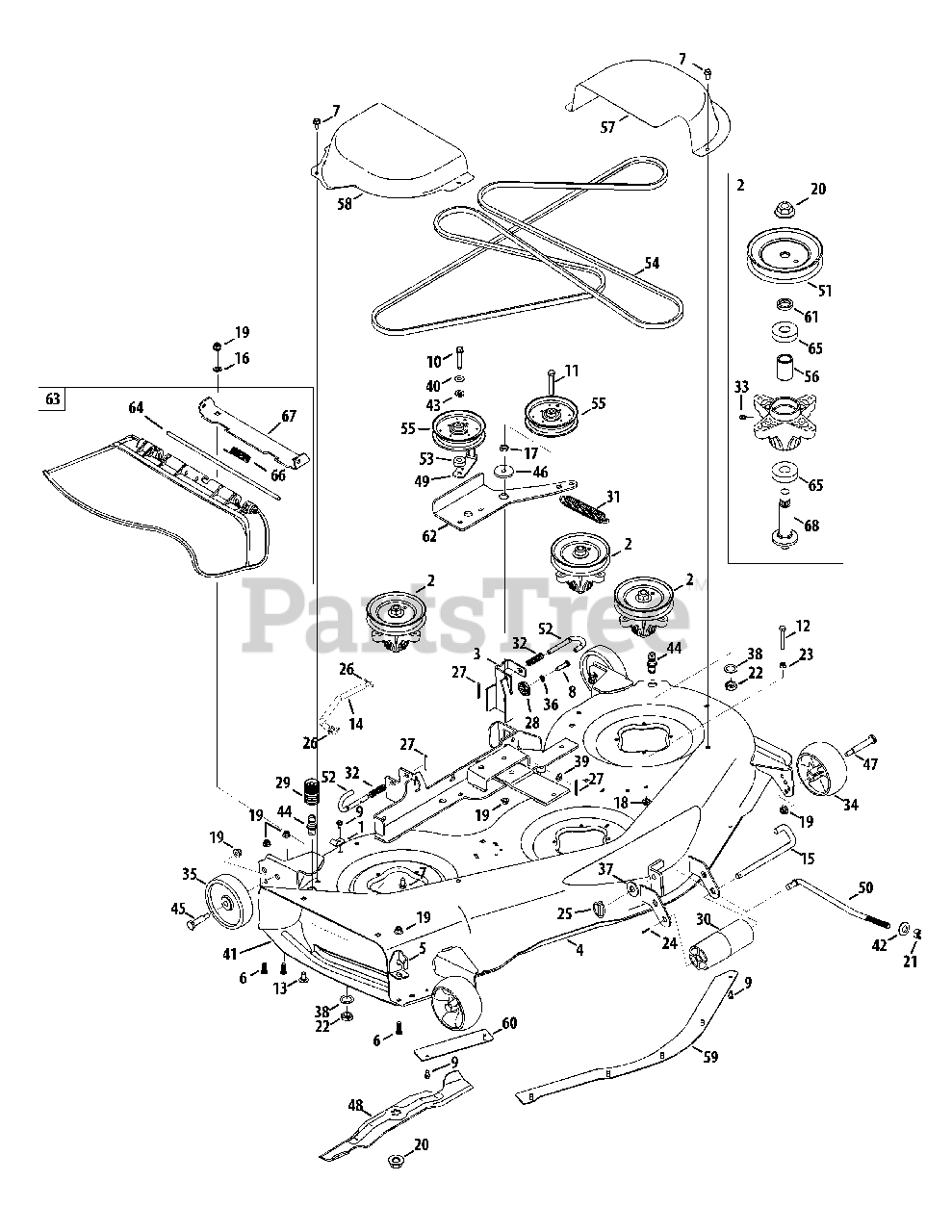

Mower Deck 50-Inch Parts Diagram

  • Title

1

MTD 96606

Retainer Hook Brkt.

$6.99

$

In Stock, Qty 14

0

2

MTD 918-05016

Spindle Assembly

$150.99

$

In Stock, Qty 19

0

3

MTD 683-0254B-0606

Deck Hanger Bracket Ass'y
(Superseded to 683-0254B-0637)

$46.99

$

Usually ships in 3-6 days

0

4

MTD 983-04648-0606

Deck Assembly
(Superseded to 983-04648A-0606)

$859.99

$

Usually ships in 3-6 days

0

5

MTD 703-3279-0606

Chute Deflector Stop
(Superseded to 703-3279)

$37.99

$

In Stock, only 2 left!

0

6

MTD 710-04095

Screw, 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-04484

Hex Wash Hd. Tapp Screw. 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-1008

Hex Wash S-Tapp Screw 5/16-16 x 1.875

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-3011

Hex Bolt 3/8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

12

MTD 710-3103

Hex Hd Cap Screw. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 17

0

13

MTD 710-3178

Short Neck Car riage Bolt 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

14

MTD 747-05279

Deck Support Rod

$14.99

$

In Stock, Qty 9

0

15

MTD 911-3314

Roller Pin
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

16

MTD 712-0229

Push Nut 3/8

$3.49

$

In Stock, Qty 20+

0

17

MTD 912-0240

Jam Nut 7/16 -20, Gr. 2

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 712-04243

Flexlock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

22

MTD 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

23

MTD 912-3010

Hex Nut 5/16-18 hd. (Gr. t5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 914-0111

Cotter Pin 3/32 x 1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

25

MTD 753-04070

Lynch Pin, .1875

$9.49

$

In Stock, Qty 20+

0

26

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

27

MTD 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

28

MTD 917-04074

Deck adjustment Gear

$12.99

$

In Stock, Qty 20+

0

29

MTD 921-04041

Water Nozzle Adap tor

$21.99

$

In Stock, Qty 20+

0

30

MTD 731-05679

Front Roller
(Superseded to 731-05679B)

$16.99

$

In Stock, Qty 20+

0

31

MTD 732-04649

Extension Spring 1.0 x 6.10

$14.99

$

In Stock, Qty 9

0

32

MTD 732-04652

Compression Spring .535 OD x 1.75" Lg.

$6.49

$

In Stock, Qty 20+

0

33

MTD 937-3000

Grease Fitting

$4.49

$

In Stock, Qty 20+

0

34

MTD 734-04155

Deck Wheel 5.0

$19.99

$

In Stock, Qty 20+

0

35

MTD 734-0973

Wheel Ass’y - Deck 5" x 1.38"

$12.99

$

In Stock, Qty 20+

0

36

MTD 936-0119

L-Wash 5/16 ID

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0179

Flat Washer .531 ID x 1.25 OD x .100
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0225

L-Washer Internal

$3.99

$

In Stock, Qty 11

0

39

MTD 936-0275

Flat Washer .344 ID x .688 OD x .065
(Superseded to 736-0275)

$

$

Not available

40

MTD 936-0300

Flat Washer .406 ID x .875 OD x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

41

MTD 703-3511A-0637

Finger Guard
(Superseded to 703-3511B-0637)

$65.99

$

In Stock, Qty 20+

0

42

MTD 736-0317

Cupped Washer .63 x 1.25 x .18

$7.49

$

In Stock, Qty 20+

0

43

MTD 736-3010

Flat Washer .407 ID x .812 OD x .135

$4.49

$

In Stock, Qty 19

0

44

MTD 737-04003D

Port, Water

$21.99

$

In Stock, Qty 18

0

45

MTD 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$8.49

$

In Stock, Qty 20+

0

46

MTD 738-04162A

Spacer, Shoulder .884 x .190
(Superseded to 738-04162C)

$12.99

$

In Stock, Qty 20+

0

47

MTD 938-3056

Shoulder Screw

$8.99

$

In Stock, Qty 20+

0

48

MTD 942-04053C

Blade 17.90

$28.99

$

In Stock, Qty 20+

0

49

MTD 783-06368A-0606

Belt Guard Bracket
(Superseded to 783-06368A-0637)

$19.99

$

In Stock, Qty 20+

0

50

MTD 747-05067A

Front Deck Lift Rod

$19.99

$

In Stock, Qty 14

0

51

MTD 756-04216

Idler Pulley

$30.99

$

In Stock, Qty 13

0

52

MTD 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

53

MTD 750-3119

Spacer .406 x 1.0 x .38

$10.99

$

In Stock, Qty 20+

0

54

MTD 954-04240

V-Belt

$94.99

$

In Stock, Qty 20+

0

55

MTD 756-04129B

Idler Pulley
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

56

MTD 750-1096

Spacer .800 x 1.10 x 1.530

$7.99

$

Usually ships in 3-6 days

0

57

MTD 783-04399-0606

LH Belt Cover
(Superseded to 783-04399-0637)

$88.99

$

In Stock, only 3 left!

0

58

MTD 783-04400-0606

RH Belt Cover

$88.99

$

Usually ships in 3-6 days

0

59

MTD 783-04414A-0606

Deck Skirt Cen ter

$32.99

$

In Stock, only 2 left!

0

60

MTD 783-04415-0606

Deck Shirt RH

$28.99

$

In Stock, Qty 5

0

61

MTD 750-0434

Spacer .750 x 1.150 x .230

$6.49

$

Usually ships in 3-6 days

0

62

MTD 783-06361A

Idler Bracket Arm

$55.99

$

In Stock, Qty 16

0

63

MTD 631-04092B

Chute Ass'y
(Superseded to 631-04092C)

$56.99

$

Usually ships in 3-6 days

0

64

MTD 711-04565

Hinge Pin .3125 x 7.96

$14.99

$

In Stock, Qty 5

0

65

MTD 941-0919A

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

66

MTD 732-04372

Torsion Spring

$9.49

$

In Stock, Qty 20+

0

67

MTD 783-05030

Chute Bracket

$27.99

$

In Stock, Qty 7

0

68

MTD 738-0976

Spindle Shaft 4.1250

$48.99

$

In Stock, Qty 5

0
