YTA 18542 - Husqvarna 42" Yard Tractor (Original) ENGINE Parts Diagram

42" Yard Tractor

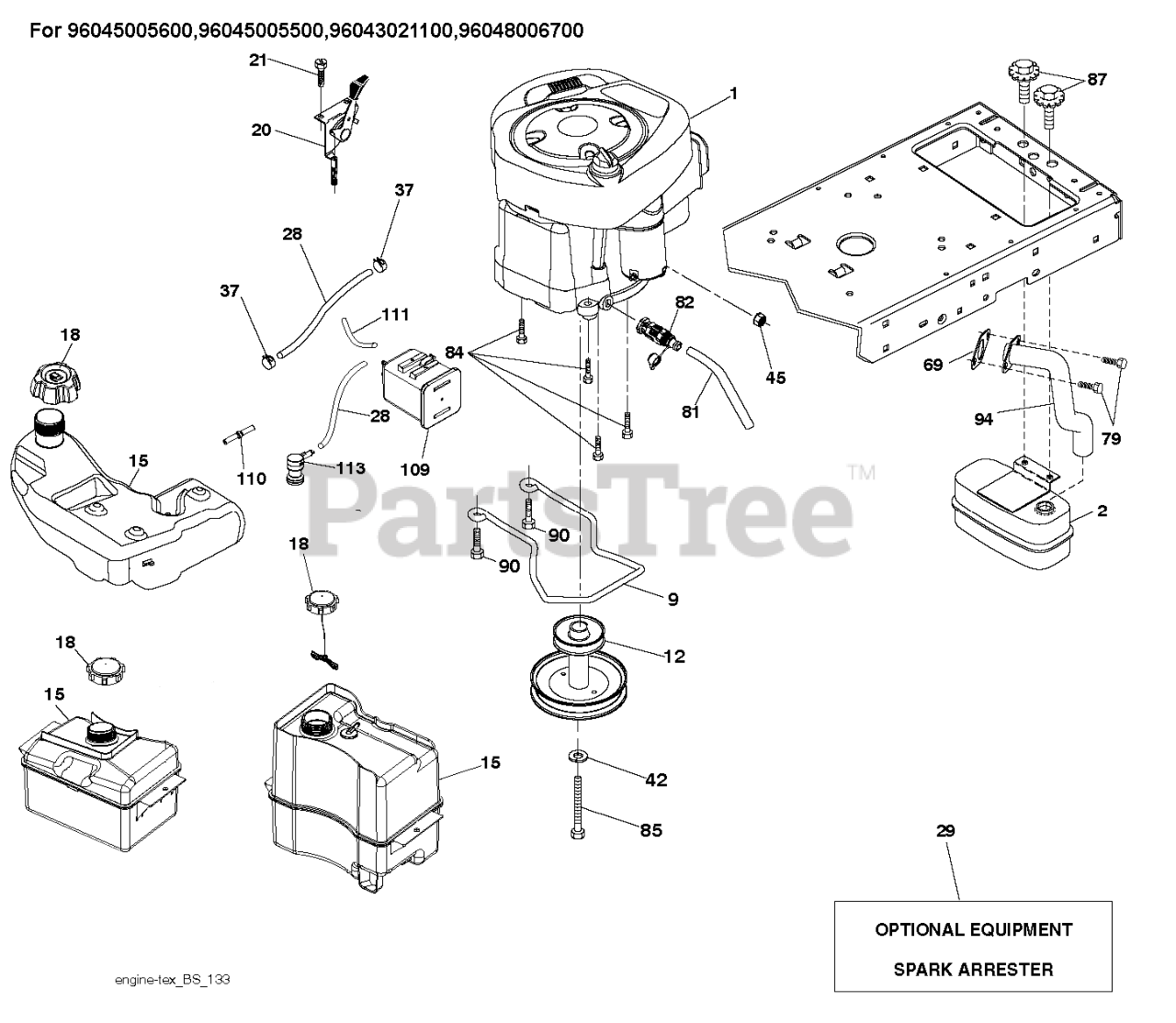

ENGINE Parts Diagram

  • Title

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

Note: For 96045005600

$27.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532433004

TANK.ASM.FT.2.5GAL.W/CAP.EPA17
(Superseded to 532433005)

Note: Fits 2.75" filler neck. For 96043021100, 96045005500

$

$

Not available

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$27.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

Note: Fits 2.75" filler neck. For 96048006700

$27.99

$

In Stock, Qty 5

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

20

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

Note: For 96048006700

$14.99

$

In Stock, Qty 17

0

12

Husqvarna 586729001

PULLEY.ENGINE

$33.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 8

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 581176101

CAP.FUEL.2 WAY VENT

Note: Fits 2.75" filler neck. For 96043021100, 96045005500

$39.99

$

In Stock, only 2 left!

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

Note: For 96048006700, 96043021100, 96045005500

$14.99

$

In Stock, only 2 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

Note: Fits 2.75" filler neck. For 96048006700

$131.99

$

In Stock, Qty 6

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$59.99

$

In Stock, Qty 5

0

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

Note: For 96048006700, 96043021100, 96045005500

$3.99

$

In Stock, only 1 left!

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$14.99

$

In Stock, only 2 left!

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

Note: For 96045005600, 96045005500, 96043021100

$35.99

$

In Stock, Qty 20+

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 96045005600

$23.99

$

In Stock, only 4 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

Note: For 96045005600

$3.99

$

In Stock, only 1 left!

0

15

Husqvarna 589900501

TANK.ASM.FUEL.3GA.CARB.17
(Superseded to 532420709)

Note: Fits 2.75" filler neck. For 96045005600

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

1

000000000

Note: ENGINE B&S MODEL NO. 31R777-0009-G1 (588640901)

$

$

Not available

9

Husqvarna 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

$8.49

$

Usually ships in 3-10 days

0
