YTA 18542 - Husqvarna 42" Yard Tractor (Original) SEAT Parts Diagram

42" Yard Tractor

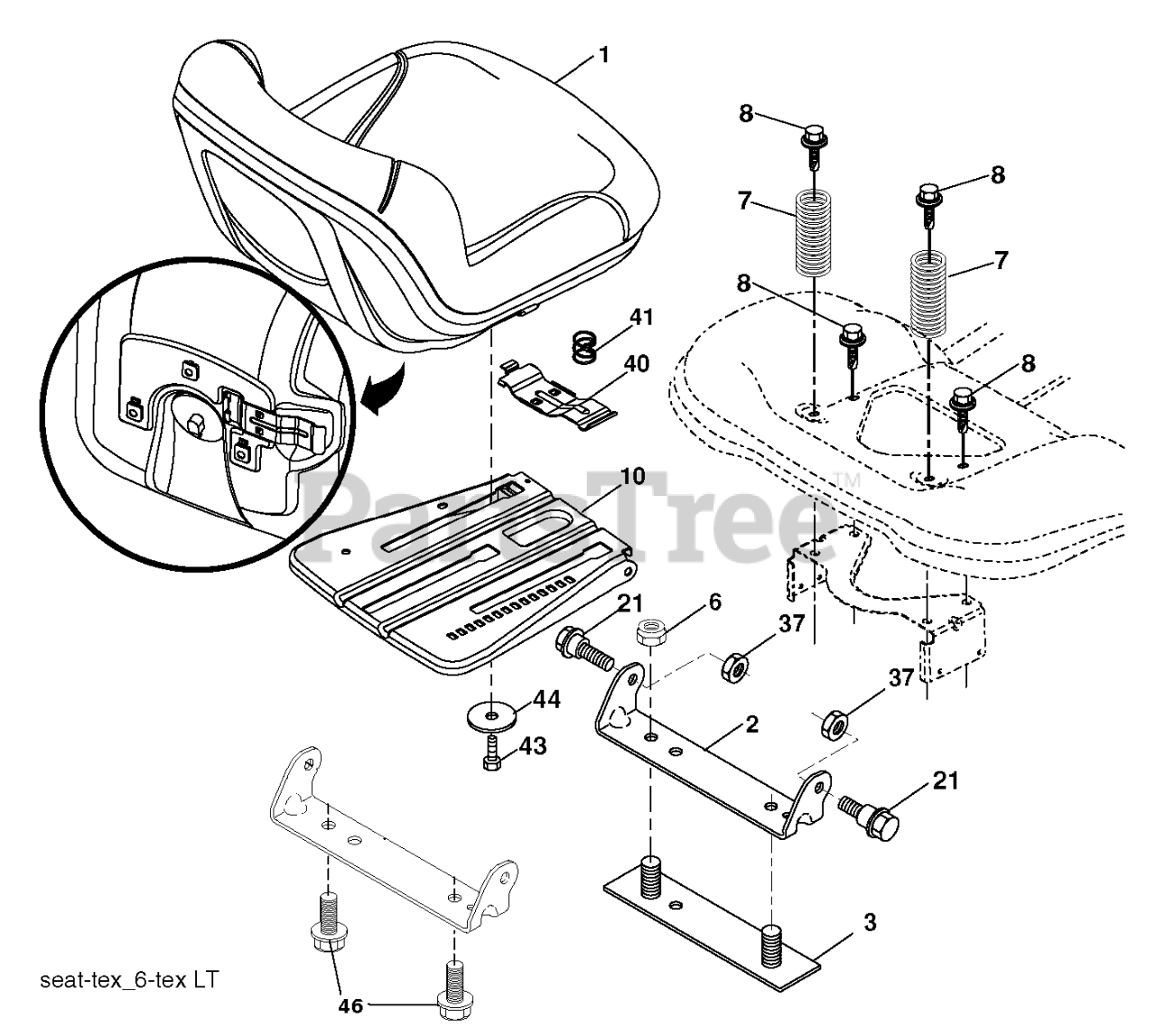

SEAT Parts Diagram

  • Title

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 532140675

STRAP
(Superseded to 588090401)

$6.99

$

Usually ships in 3-10 days

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

44

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

Note: For 96048006700, 96043021100, 96045005500

$4.99

$

In Stock, Qty 8

0

10

Husqvarna 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$62.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$4.99

$

In Stock, Qty 8

0

7

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.99

$

In Stock, Qty 8

0

44

Husqvarna 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

Note: For 96045005600

$

$

Not available

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

In Stock, Qty 10

0

1

Husqvarna 532439709

SEAT.TH110.HUSQ.TEX.GREY
(Superseded to 583544801)

Note: For 96048006700

$262.99

$

In Stock, only 1 left!

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

Usually ships in 3-10 days

0

43

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

1

Husqvarna 532439819

SEAT.TH130.GREY.HUSQ.TEX

Note: For 96045005600, 96045005500, 96043021100

$262.99

$

In Stock, only 1 left!

0

46

Husqvarna 588090401

BOLT.3/8-16X1;1.25OD.WSHR.SEMS

Note: For 96048006700, 96043021100, 96045005500

$6.99

$

Usually ships in 3-10 days

0
