YTA 19K42 (960430139-01) - Husqvarna 42" Yard Tractor (2012-10) DRIVE Parts Diagram

42" Yard Tractor

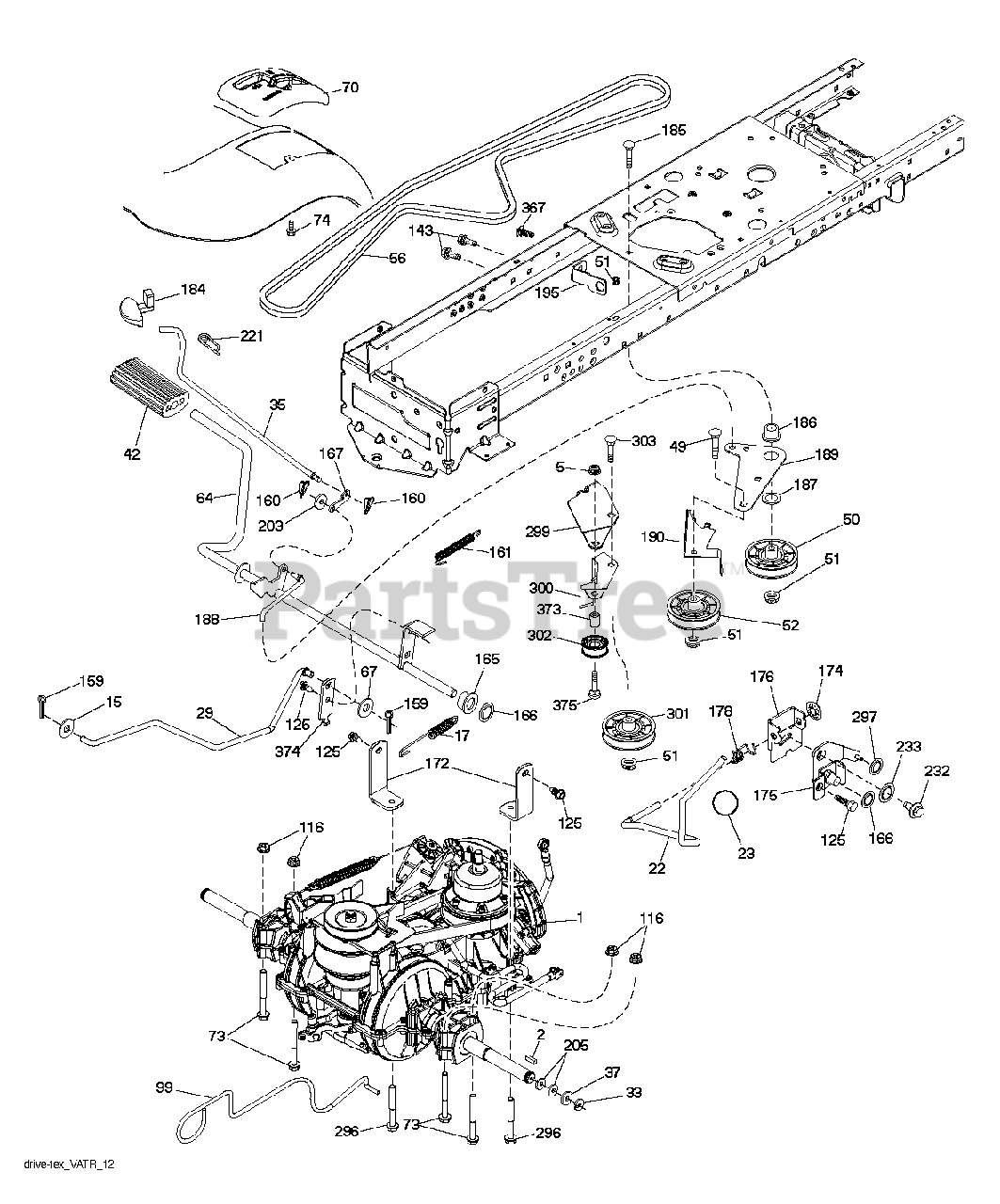

DRIVE Parts Diagram

  • Title

1

000000000

Note: TRANSMISSION GENTRANS VATR (580486301)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 873680600

LOCKNUT

$

$

Not available

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, Qty 16

0

22

Husqvarna 532421063

ROD.SHIFT.LT.TEX.VARIATOR

$

$

Not available

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 581479301

RB ROD.BRAKE.VARIATOR.SD2
(Superseded to 584823102)

$22.99

$

In Stock, only 1 left!

0

33

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 532435486

ROD.BRAKE.PARTK.HUSQ.TEX
(Superseded to 583864502)

$13.99

$

In Stock, only 2 left!

0

37

Husqvarna 532188967

WASHER.HARDENED

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

49

Husqvarna 872110614

BOLT

$

$

Not available

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

In Stock, Qty 20+

0

56

Husqvarna 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$43.99

$

In Stock, Qty 20+

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$62.99

$

Usually ships in 3-10 days

0

67

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

70

Husqvarna 581849701

$

$

Currently unavailable

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

99

Husqvarna 532435935

ROD.BYPASS.VARIATOR.GEN2

$5.99

$

In Stock, only 2 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

159

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 6

0

160

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 9

0

161

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 17

0

165

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$4.99

$

In Stock, Qty 7

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING
(Superseded to 531152901)

$3.49

$

In Stock, Qty 8

0

172

Husqvarna 532415664

STRAP.TORQUE.VARIATOR
(Superseded to 583974201)

$7.99

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$3.49

$

In Stock, only 1 left!

0

175

Husqvarna 532415677

SHAFT.ASM.SHIFT.VARIATOR

$68.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$5.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532441455

RB HANDLE.PARKG.BRK.HUS/PRED
(Superseded to 532403118)

$13.99

$

In Stock, Qty 18

0

185

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 7

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 20+

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 18

0

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, only 4 left!

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.
(Superseded to 531169001)

$7.99

$

In Stock, only 3 left!

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, only 3 left!

0

195

Husqvarna 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$9.49

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, only 2 left!

0

232

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1
(Superseded to 596238601)

$3.49

$

In Stock, only 2 left!

0

233

Husqvarna 532405296

WASHER SERRATED
(Superseded to 596135201)

$3.49

$

Usually ships in 3-10 days

0

296

Husqvarna 532420471

SCREW.THDROL.5/16-18

$7.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532420223

NUT.PUSH.1/4

$

$

Not available

299

Husqvarna 532415683

BRACKET.MOUNT.IDLERS

$9.49

$

In Stock, only 1 left!

0

300

Husqvarna 532415681

KEEPER.IDLERS.REAR.VARIATOR
(Superseded to 531153901)

$4.99

$

In Stock, Qty 5

0

301

Husqvarna 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, only 4 left!

0

302

Husqvarna 532415666

RB PULLEY.IDLER.FLAT.2.0"OD RP
(Superseded to 581583601)

$20.99

$

In Stock, only 2 left!

0

303

Husqvarna 872110618

BOLT CARRIAGE

$5.99

$

In Stock, only 2 left!

0

367

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 2 left!

0

373

Husqvarna 581461801

SPACER.IDLER

$4.99

$

In Stock, only 3 left!

0

374

Husqvarna 581475201

ARM.CONTROL.BRAKE

$6.99

$

Usually ships in 3-10 days

0

375

Husqvarna 874760636

BOLT

$5.99

$

In Stock, only 1 left!

0
