YTA 19K42 (960430142-00) - Husqvarna 42" Yard Tractor (2011-09) DRIVE Parts Diagram

42" Yard Tractor

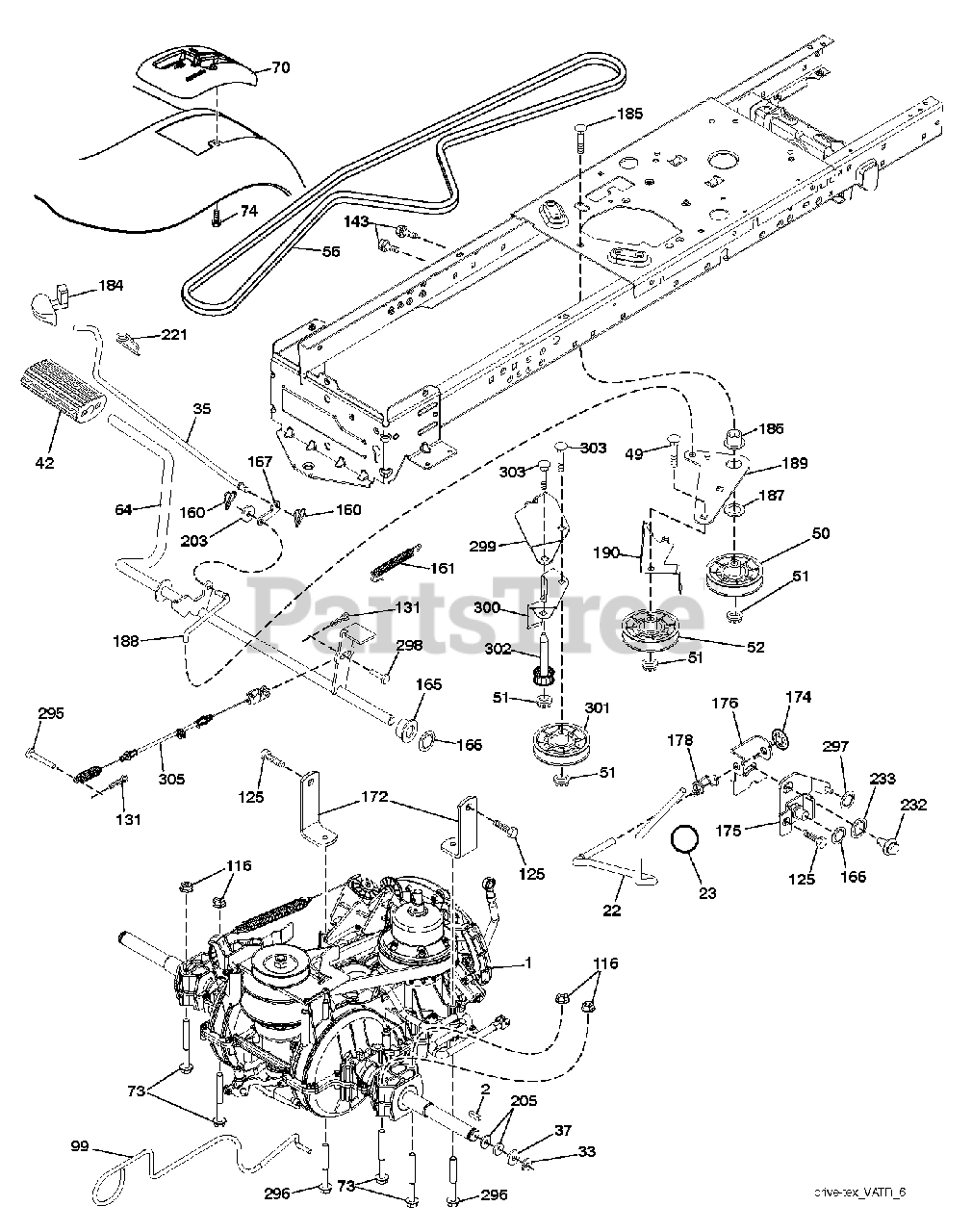

DRIVE Parts Diagram

  • Title

1

000000000

Note: TRANSMISSION GENTRANS (415663)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 532421063

ROD.SHIFT.LT.TEX.VARIATOR

$42.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 14

0

35

Husqvarna 532435486

ROD.BRAKE.PARTK.HUSQ.TEX
(Superseded to 583864501)

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

49

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$30.99

$

In Stock, Qty 20+

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532446596

CONSOLE.AUTO.VARIATOR.GRY.TEX

$21.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

99

Husqvarna 532427340

ROD.BYPASS.VARIATOR

$

$

Not available

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

131

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

165

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 1 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Husqvarna 532415664

STRAP.TORQUE.VARIATOR
(Superseded to 583974201)

$3.99

$

In Stock, only 1 left!

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532408539

SHAFT.ASM.SHFT.T2.TLT

$24.99

$

In Stock, only 1 left!

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

184

Husqvarna 532441455

RB HANDLE.PARKG.BRK.HUS/PRED
(Superseded to 532403118)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 4 left!

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 18

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 9

0

232

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

295

Husqvarna 532420306

PIN.CLEVIS.183

$4.99

$

Usually ships in 3-10 days

0

296

Husqvarna 532420471

SCREW.THDROL.5/16-18

$4.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532415694

PIN.CLEVIS.CBL.BRK.VARIATOR.TX

$2.99

$

Usually ships in 3-10 days

0

298

Husqvarna 532415694

PIN.CLEVIS.CBL.BRK.VARIATOR.TX

$2.99

$

Usually ships in 3-10 days

0

299

Husqvarna 532415683

BRACKET.MOUNT.IDLERS

$10.99

$

In Stock, only 2 left!

0

300

Husqvarna 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 20+

0

301

Husqvarna 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 20+

0

302

Husqvarna 532415666

RB PULLEY.IDLER.FLAT.2.0"OD RP
(Superseded to 581583601)

$31.99

$

In Stock, Qty 6

0

303

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

305

Husqvarna 532415692

CABLE.BRAKE.VARIATOR.TEX

$

$

Not available
