YTA 19K42 (960450033-00) - Husqvarna 42" Yard Tractor (2011-09) ENGINE Parts Diagram

42" Yard Tractor

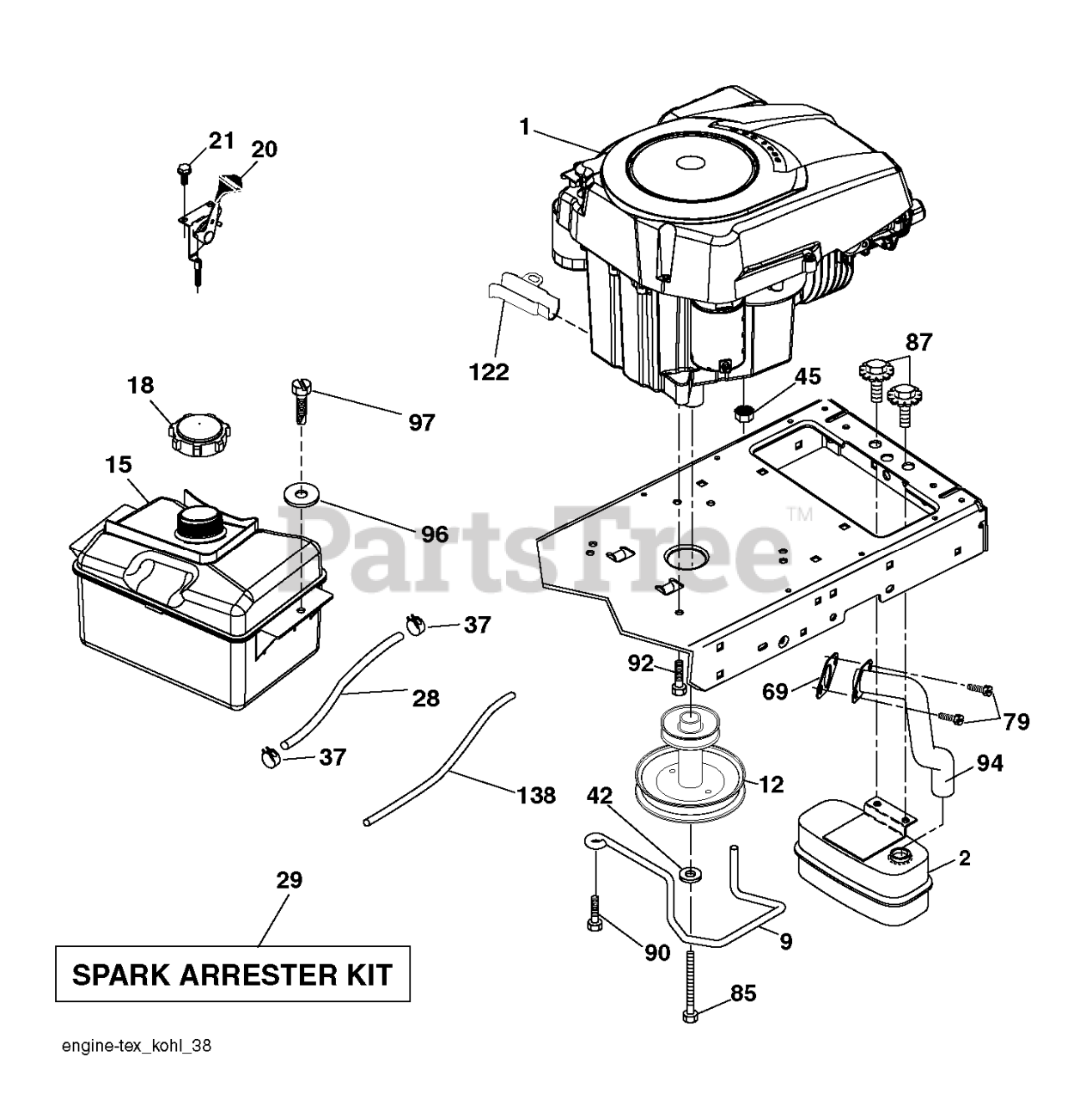

ENGINE Parts Diagram

  • Title

1

000000000

Note: Engine Kohler Model No SV590-3223 (438346)

$

$

Not available

2

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$53.99

$

In Stock, Qty 19

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, only 4 left!

0

12

Husqvarna 532401985

PULLEY ENGINE
(Superseded to 586729001)

$33.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532433007

TANK.ASM.FRT.2.5 GAL.W/CAP.EPA
(Superseded to 532433005)

$

$

Not available

18

Husqvarna 532198282

$

$

Currently unavailable

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$31.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 6

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

29

Husqvarna 532131780

SPARK ARRESTOR KIT

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, Qty 7

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, Qty 13

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 14

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$35.99

$

In Stock, Qty 20+

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 1 left!

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0

138

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0
