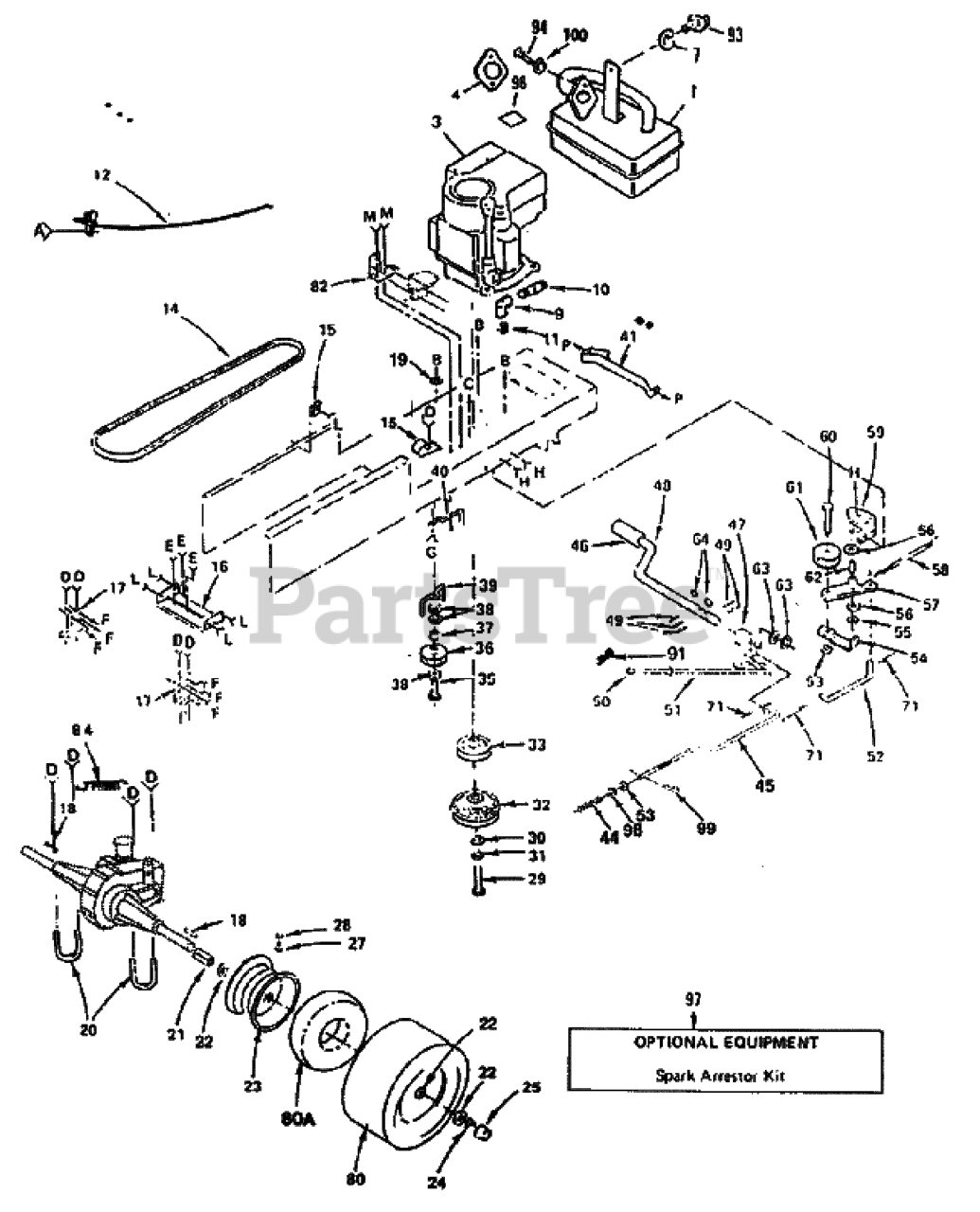

YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Drive Parts Diagram

Yard Tractor

Drive Parts Diagram

  • Title

1

Husqvarna 532125799

MUFFLER

$

$

Not available

2

Husqvarna 532009151

SNAP BUSHING T

$

$

Not available

3

UNKNOWN

$

$

Not available

4

Husqvarna 532002949

GASKET T

$

$

Not available

5

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

6

Bolt - Hex 1/4- 20 x 1

$

$

Not available

7

Washer, Lock 1/4

$

$

Not available

8

Screw - Hex Hd. No.8 - 32 x 3/8

$

$

Not available

9

UNKNOWN

$

$

Not available

10

UNKNOWN

$

$

Not available

11

UNKNOWN

$

$

Not available

12

Husqvarna 532121527

CONT THROT CHOKE
(Superseded to 532132765)

$

$

Not available

14

Husqvarna 532123461

V BELT DR

$

$

Not available

15

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

16

Husqvarna 532121187

BRKT,MTG NLA

$

$

Not available

17

Husqvarna 532121191

BRKT TRANSAXLE**
(Superseded to 532126649)

$

$

Not available

18

Husqvarna 532124928

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, Qty 20+

0

19

Nut - Keps 3/8 - 16

$

$

Not available

20

Husqvarna 532121189

U BOLT

$

$

Not available

21

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

22

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532106108

RIM.ASM.8X7.REAR.SILVER

$125.99

$

In Stock, only 2 left!

0

24

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124578

CAP,HUB REAR

$

$

Not available

27

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 17

0

28

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 7

0

29

Husqvarna 874610764

BOLT,HEX**
(Superseded to 871130768)

$

$

Not available

30

Washer, 15/32 x 1 - 1/2 x 7/32

$

$

Not available

31

Washer, Lock 7/16

$

$

Not available

32

Husqvarna 532108218

CLUTCH ELEC HYT
(Superseded to 532142600)

$

$

Not available

33

Husqvarna 532109841

ENGINE PULLEY YT
(Superseded to 532140189)

$

$

Not available

35

Bolt, Hex 3/8 - 16 x 2-3/4

$

$

Not available

36

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

37

Husqvarna 532004470

SPACER T
(Superseded to 532124965)

$4.99

$

Usually ships in 3-10 days

0

38

Washer, 13/32 x 13/16 x 12 Ga.

$

$

Not available

39

Husqvarna 532105730

KEEPER,BLT ENG LT

$

$

Not available

40

Husqvarna 532121218

KEEPER BELT ENGLH

$

$

Not available

41

Husqvarna 532109169

KIT RETAINER YTH
(Superseded to 532109172)

$

$

Not available

42

Pin, Cotter 1/8 x 3/4

$

$

Not available

44

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 20+

0

45

Husqvarna 532121200

ROD BRAKE
(Superseded to 532132654)

$

$

Not available

46

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 1 left!

0

47

Husqvarna 532122395

ARM BRAKE

$

$

Not available

48

Husqvarna 532122409

SHAFT NLA

$

$

Not available

49

Husqvarna 532001572

PIN.ROLL.3/16 X 1"

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 532124236

CAP
(Superseded to 532071673)

$5.99

$

In Stock, only 2 left!

0

51

Husqvarna 532125637

ROD BRAKE PARK
(Superseded to 532133261)

$

$

Not available

52

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

53

Nut, Lock, 3/8 16

$

$

Not available

54

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

55

Husqvarna 812000039

KLIP RING

$

$

Not available

56

Husqvarna 532110812

WASHER LT

$

$

Not available

57

Husqvarna 532123789

ARM IDLER

Note: (Incl. Key No.62)

$

$

Not available

58

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

59

Husqvarna 532123103

BRKT,SUPPORT NLA

$

$

Not available

60

Bolt, Hex,3/8-16 x 1-1/2

$

$

Not available

61

Husqvarna 532123766

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

62

Husqvarna 532105706

BEARING LT (2 2)

$6.99

$

In Stock, Qty 14

0

63

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532125096

KEY STD (1373) DANA

$7.99

$

Usually ships in 3-10 days

0

65

Screw, Hex Thread Cut.1/4 - 20 x 1/2

$

$

Not available

66

Bolt, Hex Washer Thrd. Rolling 3/8 16 x 1-1/2

$

$

Not available

67

Washer - Lock Ext Tooth 3/8

$

$

Not available

68

Bolt, Hex 3/8-16 x 3/4

$

$

Not available

69

Bolt,Hex 3/8-16x1

$

$

Not available

70

Bolt, Carr., 3/8- 16 x 3/4

$

$

Not available

71

Pin, Cotter, 1/8 x 3/4

$

$

Not available

79

Washer,Lock 3/8

$

$

Not available

80

Husqvarna 532106268

TIRE HEAVY DUTY
(Superseded to 532420531)

$96.99

$

Usually ships in 3-10 days

0

80A

Husqvarna 532007152

TUBE - UNIVERSAL FOR 8" RIM

Note: (not furnished with tractor)

$56.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532108236

BRACKET LT

$

$

Not available

83

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

84

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

88

Washer 9/32 x 5/8 x 16 Ga.

$

$

Not available

89

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 13

0

90

Nut - Lock 5/16-18

$

$

Not available

91

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

93

Bolt-Hex1/4-20x1

$

$

Not available

94

Screw - Hex Hd. Socket 5/16-18 x 5/8

$

$

Not available

95

Screw. Spider Lock #8 x 1/2

$

$

Not available

97

Spark Arrestor Kit

Note: Optional Equipment

$

$

Not available

98

Nut, Hex Jam 3/8 X 16 UNC

$

$

Not available

99

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 17

0

100

Washer Lock 5/16

$

$

Not available
