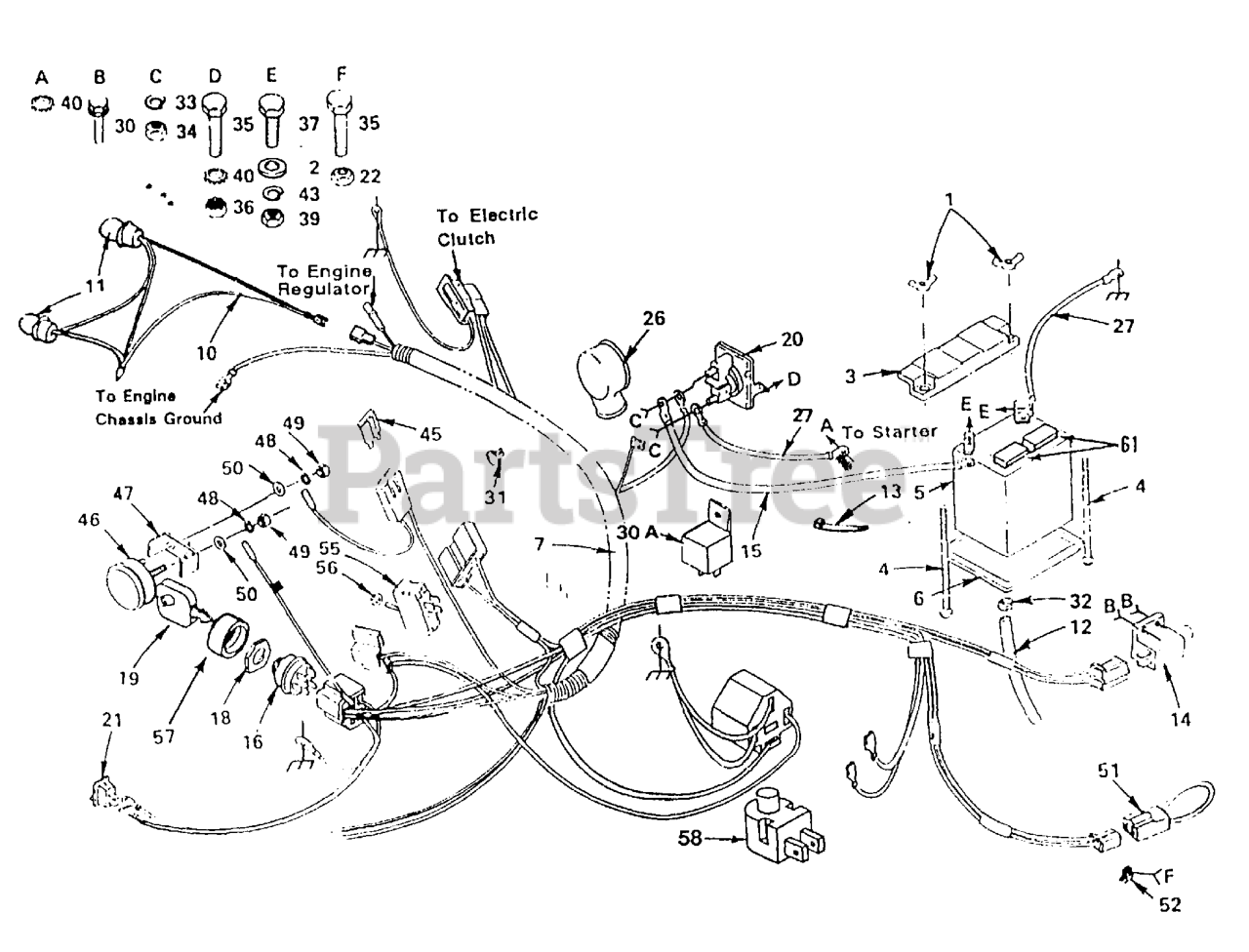

YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Electrical Parts Diagram

Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

2

Washer 9/32 x 5/8 x 16 Ga

$

$

Not available

3

Husqvarna 532102476

TERMINAL GRD YTV
(Superseded to 532150109)

$

$

Not available

4

Husqvarna 872240460

BOLT

$

$

Not available

5

Husqvarna 532121537

BATTERY
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

6

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532123826

HARNESS IGNITION

Note: (Includes item 30A)

$

$

Not available

10

Husqvarna 532110859

HARNESS T

$

$

Not available

11

Husqvarna 532007662

BULB-LIGHT T
(Superseded to 532004152)

$5.99

$

In Stock, Qty 20+

0

12

Tube-Battery Tray

$

$

Not available

13

Husqvarna 532124756

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$23.99

$

In Stock, Qty 20+

0

15

Husqvarna 532124503

CABLE,BATTERY

$

$

Not available

16

Husqvarna 532102972

SWITCH YTV
(Superseded to 532158913)

$56.99

$

In Stock, only 1 left!

0

18

Husqvarna 532109788

NUT
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

20

Husqvarna 532125701

SENSOR LOW VOLT**
(Superseded to 532127385)

$

$

Not available

21

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

22

Nut - Crownlock 1/4-20

$

$

Not available

26

Husqvarna 532124783

TERMINAL COVER
(Superseded to 532131563)

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 532124773

CABLE T
(Superseded to 532004207)

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

30A

Husqvarna 532109748

RELAY.ASSY.T

$23.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

32

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

33

Washer.Lock.External.Tooth 3/

$

$

Not available

34

UNKNOWN

$

$

Not available

35

Bolt-Hex 1/4-20 x 1/2 Gr.5

$

$

Not available

36

Nut- Keps, Hex 1/4-20

$

$

Not available

37

Bolt-Hex 1/4-20 x 3/4

$

$

Not available

39

Nut-Hex 1/4-20

$

$

Not available

40

Washer-Lock 1/4 Ext. Tooth

$

$

Not available

43

Lockwasher 1/4

$

$

Not available

45

Husqvarna 532108824

FUSE HYT

$

$

Not available

46

UNKNOWN

$

$

Not available

47

UNKNOWN

$

$

Not available

48

Washer.Lock.External.Tooth 3/

$

$

Not available

49

UNKNOWN

$

$

Not available

50

UNKNOWN

$

$

Not available

51

Husqvarna 532102501

LOOP-WIRE YTV

$

$

Not available

52

Husqvarna 532124995

CLIP T NLA

$

$

Not available

55

Husqvarna 532126018

SWITCH,PTO

$

$

Not available

56

Husqvarna 532004022

HEX NUT T (1 2)

$

$

Not available

57

Husqvarna 532109787

BEZEL.SWITCH.IGNITION
(Superseded to 584446901)

$

$

Not available

58

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$15.99

$

In Stock, Qty 14

0

61

Husqvarna 532121264

CAP BATTERY NLA

$

$

Not available

62

Husqvarna 532124524

LIGHT PACKAGE NLA

$

$

Not available

63

Husqvarna 532121549

DECAL NLA

$

$

Not available

64

Bolt.Fin.Hex 1/4-20 UNC x 1/2 G

$

$

Not available

65

Bolt.Fin.Hex 3/8-16 UNC x 1

$

$

Not available

Husqvarna 532101539

SHEET INSTR LT

$

$

Not available

Husqvarna 532125599

OPER MANUAL YTH1120-14 NLA

$

$

Not available

Husqvarna 532101572

INSTRUCTION SHEET

$

$

Not available

Husqvarna 532120663

Sheet, Instruction, Tractor 15° Slope (German)

$

$

Currently unavailable
