YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Lift Adjustment Parts Diagram

Yard Tractor

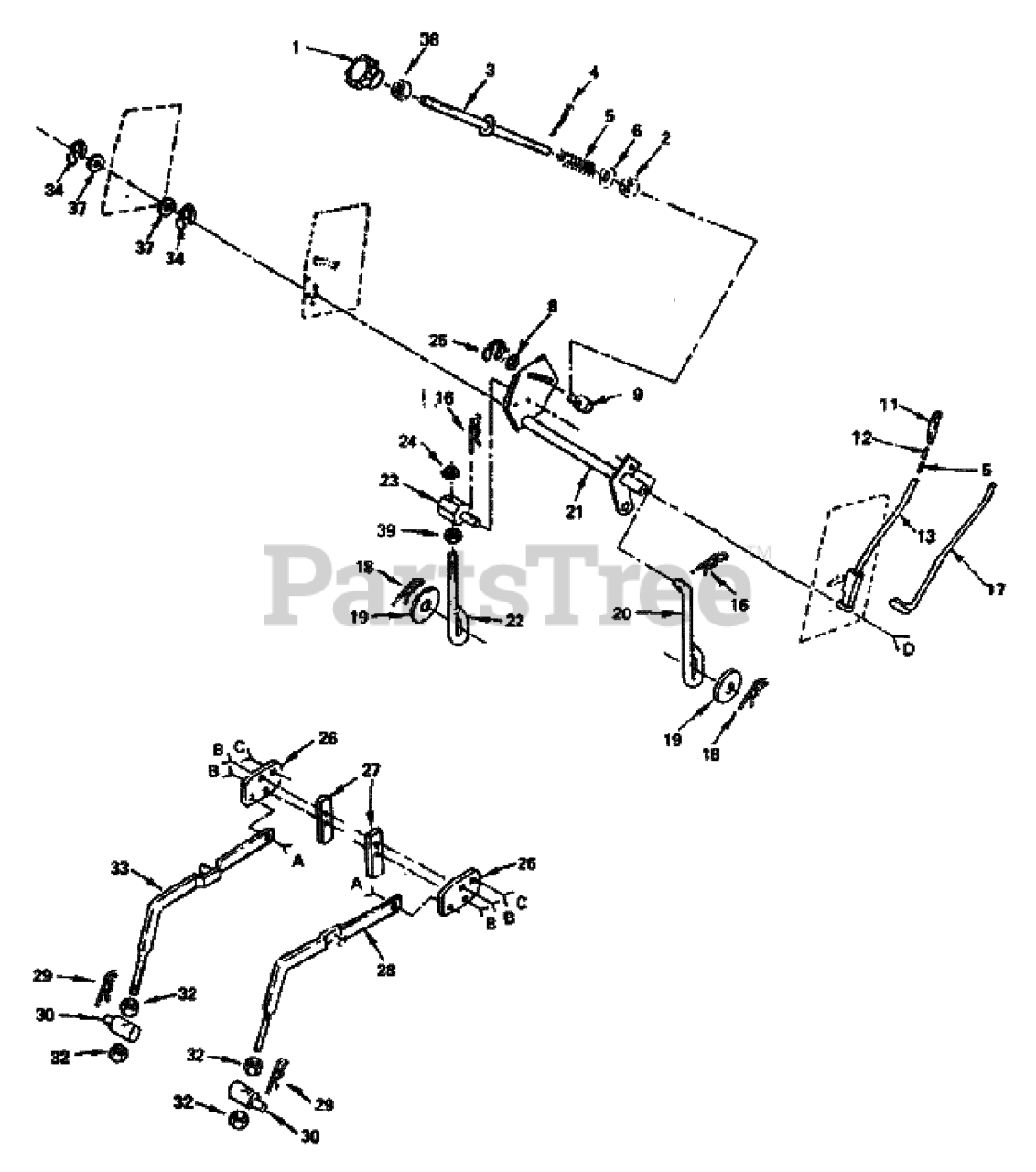

Lift Adjustment Parts Diagram

  • Title

1

Husqvarna 532121891

HDLE ADJ LIFT

$

$

Not available

2

Nut - Hex 3/8 - 16

$

$

Not available

3

Husqvarna 532110729

ROD LIFT LT

$

$

Not available

4

Pin-Cotter 3/32 x 1/2

$

$

Not available

5

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

6

Washer 13/32 x 5/8 x 16 Ga.

$

$

Not available

7

Nut - Lock 3/8- 16

$

$

Not available

8

Washer 15/32 x 3/4 x 16Ga.

$

$

Not available

9

Husqvarna 532110810

TRUNION LT

$

$

Not available

10

Husqvarna 532105848

BOLT, SHOULDER LT

$

$

Not available

11

Husqvarna 532109413

GRIP

$

$

Not available

12

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

13

Husqvarna 532121002

LIFT LEVER KIT
(Superseded to 532123096)

Note: (Includes Key No.17)

$

$

Not available

14

Husqvarna 532110739

WASHER T

$

$

Not available

15

Center Lock Flange Nut 3/8 x 16

$

$

Not available

16

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

17

Husqvarna 532121006

LEVER ROD LT

$

$

Not available

18

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

19

Washer 17/32 x 15/16 x 16 Ga.

$

$

Not available

20

Husqvarna 532110029

LIFT LINK LT

$

$

Not available

21

Husqvarna 532124517

SHAFT,LIFT NLA

$

$

Not available

22

Husqvarna 532110448

LINK ADJ T

$

$

Not available

23

Husqvarna 532110447

TRUNNION T
(Superseded to 532132793)

$

$

Not available

24

Nut - Lock 7/16- 14

$

$

Not available

25

Husqvarna 812000037

Klip Ring

$

$

Not available

26

Husqvarna 532105864

BRACKET,SUSPEN LT

$

$

Not available

27

UNKNOWN

$

$

Not available

28

Husqvarna 532121598

RH SUSP ARM ASM

$

$

Not available

29

Husqvarna 532009135

SPRING H

$

$

Not available

30

Husqvarna 532106308

TRUNION LFT LR LT
(Superseded to 532175689)

$

$

Not available

32

Nut- Hex Fin.1/2- 13

$

$

Not available

33

Husqvarna 532121599

LH SUSP ARM ASM

$

$

Not available

34

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 872140606

Bolt- Carriage 3/8- 16 x 3/4

$

$

Not available

37

Washer 29/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

38

Husqvarna 532110807

NUT T

$

$

Not available

39

Nut, Hex Jam 3/8 x 16 UNC

$

$

Not available

40

Bolt - Hex 3/8 - 16 x 1 - 1/2

$

$

Not available

41

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

42

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

43

Husqvarna 532124763

POINTER HGT INDAT
(Superseded to 532123933)

$

$

Not available
