YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Mower Parts Diagram

Yard Tractor

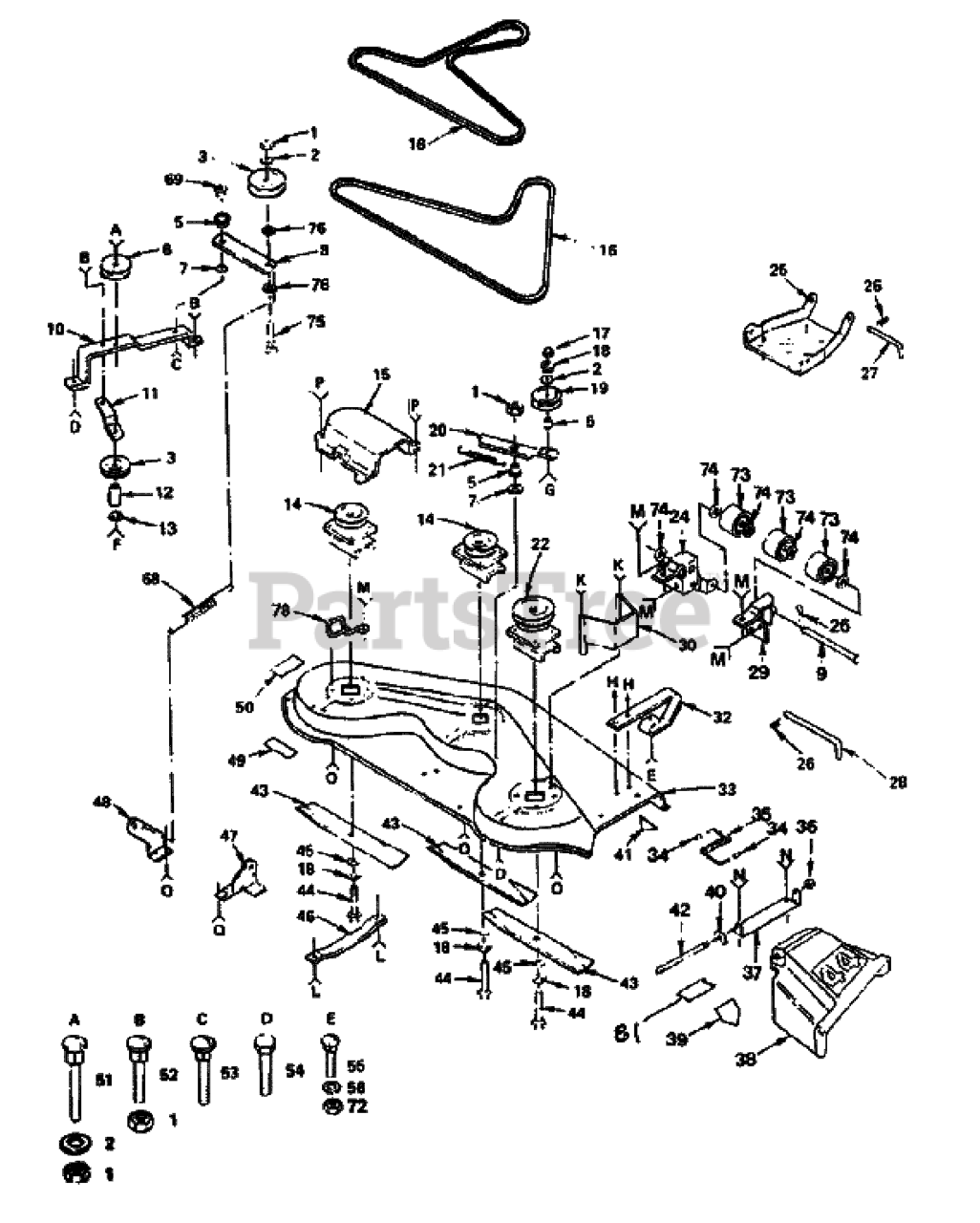

Mower Parts Diagram

  • Title

1

Nut, Lock 3/8-16

$

$

Not available

2

Washer, 13/32 x 1 x 14 Ga.

$

$

Not available

3

Husqvarna 532121316

PULLEY.IDLER.FLAT.MOWER.BLK.PT

$56.99

$

In Stock, only 4 left!

0

5

Husqvarna 532106902

SPACER RETAINER

$3.49

$

In Stock, only 2 left!

0

6

Husqvarna 532124858

IDLER-INSIDE T

$

$

Not available

7

Husqvarna 532106513

WASHER, WEAR LT (1 2)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532121425

ARM IDLER

$

$

Not available

9

Husqvarna 532109776

PIVOT PIN T

$

$

Not available

10

Husqvarna 532106523

BAR-SUPPORT YT

$

$

Not available

11

Husqvarna 532106522

BRACE-IDLER YT

$

$

Not available

12

Husqvarna 532121236

SPACER

$

$

Not available

13

Washer, 13/32 x 13/16 x 16 Ga

$

$

Not available

14

Husqvarna 532121658

JACKSHAFT YT
(Superseded to 532136819)

$

$

Not available

15

Husqvarna 532106214

GUARD YT

$

$

Not available

16

Husqvarna 532106085

V-BELT T

$51.99

$

In Stock, only 1 left!

0

17

Nut, Hex 3/8-16

$

$

Not available

18

Washer, Lock, 3/8

$

$

Not available

19

Husqvarna 532102932

IDLER.FLAT.GTV

$

$

Not available

20

Husqvarna 532106526

ARM-IDLER YT

$

$

Not available

21

Husqvarna 532124885

SPRING T
(Superseded to 532007644)

$

$

Not available

22

Husqvarna 532121705

JACKSHAFT YT

$

$

Not available

24

Husqvarna 532109599

BRACKET LH YTH

$

$

Not available

25

Husqvarna 532105662

LINK,PARALLEL

$

$

Not available

26

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532105744

ROD,FRT PARALL LT

$

$

Not available

28

Husqvarna 532109835

HINGE PIN T

$

$

Not available

29

Husqvarna 532109600

BRACKET RH YTH

$

$

Not available

30

Husqvarna 532108119

GUARD BELT HYT

$

$

Not available

32

Husqvarna 532124950

RUNNER-RH YTV
(Superseded to 532136321)

$

$

Not available

33

Husqvarna 532121423

HOUSING
(Superseded to 532144729)

$

$

Not available

34

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, Qty 17

0

36

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532109743

BRACKET T
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532109785

DEFLECTOR SHIELD

$31.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532126192

DECAL

$

$

Not available

40

Washer, 11/32 x 5/8 x 16Ga.

$

$

Not available

41

Husqvarna 532126194

DECAL

$

$

Not available

42

Husqvarna 532106735

ROD-HINGE T

$11.99

$

In Stock, only 1 left!

0

43

Husqvarna 532122265

BLADE
(Superseded to 532025034)

$

$

Not available

44

Bolt, Hex, 3/8-24 x 1-1/2 Gr.5

$

$

Not available

45

Washer, 13/32 x 1-1/4 x 12Ga.

$

$

Not available

46

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 8

0

47

Husqvarna 532123807

BRKT SUSP REAR RH

$

$

Not available

48

Husqvarna 532123808

BRKT SUSP REAR LH

$

$

Not available

49

Husqvarna 532108592

DECAL HYT

$

$

Not available

50

Husqvarna 532105185

DECAL-INST YT

$

$

Not available

51

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

52

Bolt, Hex Fin. 3/8-16UNC x 1

$

$

Not available

53

Bolt, Carriage 3/8-16UNC x 1-1/2

$

$

Not available

54

Bolt, Hex 3/8-16 x 1 -1/4

$

$

Not available

55

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

56

Washer, 11/32 x 11/16 x 16 Ga.

$

$

Not available

57

Nut, Lock 5/16-18

$

$

Not available

58

Bolt, Hex 3/8-16 x 3

$

$

Not available

59

Screw, Flat Head 3/8-16 x 2

$

$

Not available

61

Washer, 11/32 x 3/4 x 16 Ga

$

$

Not available

62

Bolt, Hex,5/16-18 x 5

$

$

Not available

65

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

66

Screw, Hex Wsh. Thdrl. 3/8-16 x 3/4

$

$

Not available

67

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/8

$

$

Not available

68

Husqvarna 532102727

SPRING.EXT.8.5"

$

$

Not available

69

Nut, Centerlock 3/8-16

$

$

Not available

70

Bolt, Carriage 5/16-18 x 3/8

$

$

Not available

72

Husqvarna 532124949

LOCKNUT

$

$

Not available

73

Husqvarna 532109729

ROLLER T

$

$

Not available

74

Washer, 15/32 x 1 x 10 Ga.

$

$

Not available

75

Husqvarna 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 20+

0

76

Washer, 13/32 x 3/4 x 10 Ga.

$

$

Not available

77

Washer, 13/32 x 7/8 x 10 Ga.

$

$

Not available

78

Husqvarna 532121352

BELT RETIANER

$

$

Not available

80

Husqvarna 532126191

DECAL

$

$

Not available

81

Husqvarna 532126196

DECAL,INST

$

$

Not available
