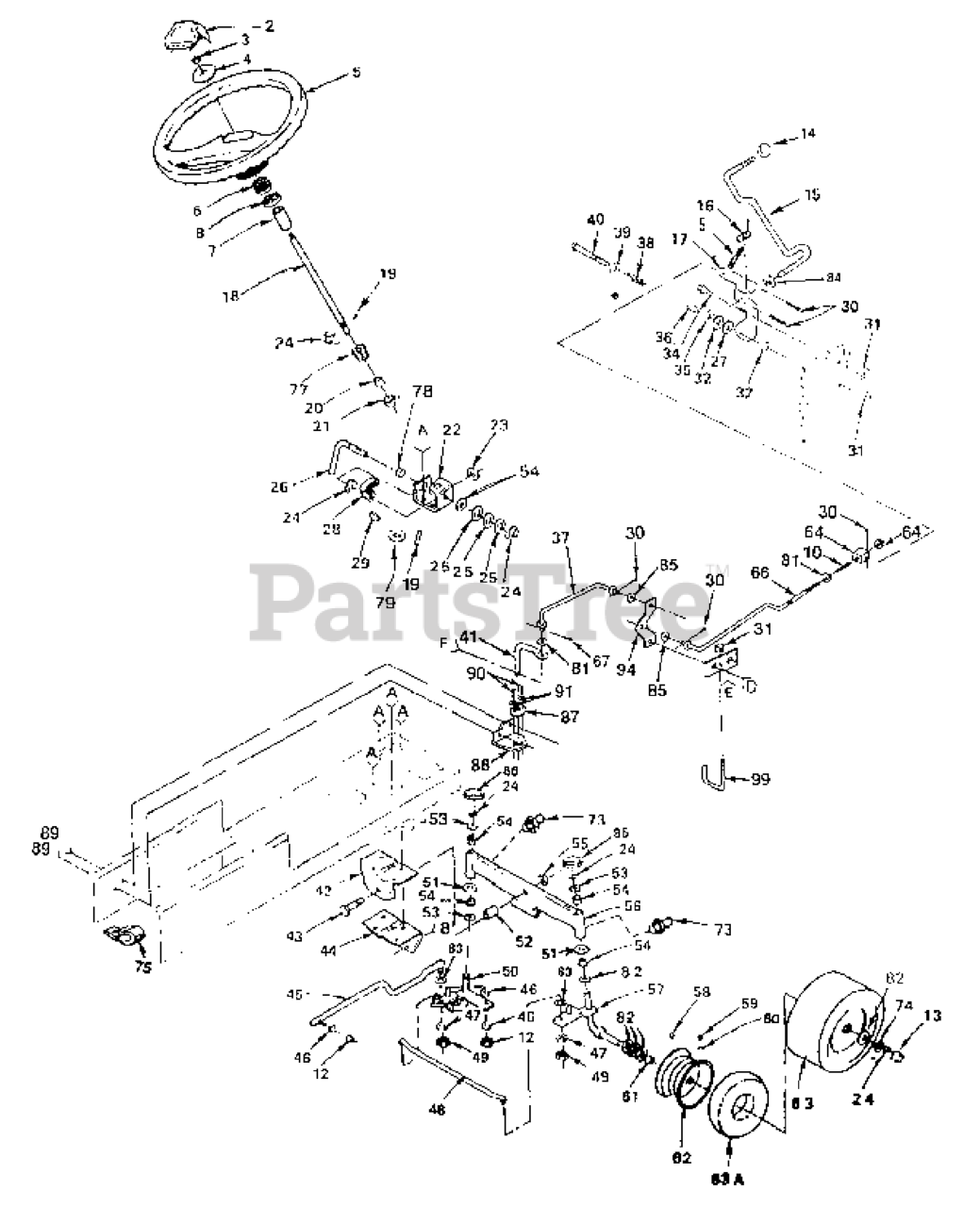

YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Steering Assembly Parts Diagram

Yard Tractor

Steering Assembly Parts Diagram

  • Title

2

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

3

Nut, Hex 3/4 - 16

$

$

Not available

4

Husqvarna 532100712

WASHER

$

$

Not available

5

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

6

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

7

UNKNOWN

$

$

Not available

8

UNKNOWN

$

$

Not available

10

Husqvarna 532102670

SPRING GTV

$

$

Not available

12

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

13

Husqvarna 532124577

COVER.FRONT.WHEEL

$

$

Not available

14

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110845

ROD YTH

$

$

Not available

16

Husqvarna 532121631

SPRING TORSION

$

$

Not available

17

Husqvarna 532108196

BRKT CONTROL HYT NLA

$

$

Not available

18

Husqvarna 532109557

STEERING SHAFT T

$

$

Not available

19

Husqvarna 532002882

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 532074580

SHAFT SPACER LT

$

$

Not available

21

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$

$

Not available

22

Husqvarna 532109432

KIT STEERING LT
(Superseded to 532110150)

$

$

Not available

23

Washer 21/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

24

Husqvarna 812000029

RING CLIP

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 532006266

WASHER THRUST

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532108683

ROD STEERING T

$

$

Not available

27

Husqvarna 532108972

WASHER HYT

$

$

Not available

28

Husqvarna 532108684

SECTOR GEAR HYT

$

$

Not available

29

Husqvarna 532106126

KEY-WOODRUFF LT

$

$

Not available

30

Pin - Cotter 1/8 x 3/4

$

$

Not available

31

Nut - Lock 3/8 - 16

$

$

Not available

32

Husqvarna 532108200

WASHER FRIC HYT

$

$

Not available

33

Washer 13/32 x 13/16 x 12 Ga.

$

$

Not available

34

Husqvarna 532108518

BOLT HYT

$

$

Not available

35

Washer 21/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

36

Husqvarna 532108201

SPACER HYT NLA

$

$

Not available

37

Husqvarna 532121202

LINK CONTROL

$

$

Not available

38

Husqvarna 532108844

SPRING HYT

$

$

Not available

39

Washer 13/32 x 1 - 1/4 x 12Ga.

$

$

Not available

40

Bolt- Hex 3/8 - 16x3

$

$

Not available

41

Husqvarna 532121209

ARM ASM PUMP

$

$

Not available

42

Husqvarna 532105663

SUPPORT-SADDLE LT NLA

$

$

Not available

43

Bolt Hex 5/8 - 11 x 3 -3/4

$

$

Not available

44

Husqvarna 532105664

SUP-SADDLE FRT LT

$

$

Not available

45

Husqvarna 532105727

LINK-DRAG LT

$

$

Not available

46

Lockwasher 3/8

$

$

Not available

47

Washer - Lock 5/16

$

$

Not available

48

Husqvarna 532121334

ROD TIE
(Superseded to 532170162)

$119.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

50

Husqvarna 532105656

SPINDLE-LH LT
(Superseded to 532156483)

$26.99

$

In Stock, only 2 left!

0

51

Washer 27/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

52

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

53

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 20+

0

55

Nut - Lock Flange 5/8-11

$

$

Not available

56

Husqvarna 532108075

AXLE ASSY T

$

$

Not available

57

Husqvarna 532105654

SPINDLE-RH LT
(Superseded to 532130524)

$

$

Not available

58

Husqvarna 532000278

FITTING LT.

$6.99

$

In Stock, Qty 20+

0

59

Husqvarna 532065139

VALVE STEM LT

$4.99

$

In Stock, Qty 17

0

60

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 7

0

61

Husqvarna 532009040

BEARING.FLANGE

$9.49

$

In Stock, Qty 20+

0

62

Husqvarna 532106732

RIM.ASM.6X4.5.FRONT.SILVER

$107.99

$

In Stock, Qty 20+

0

63

Husqvarna 532106222

TIRE HEAVY DUTY
(Superseded to 532122073)

$77.99

$

Usually ships in 3-10 days

0

63A

Husqvarna 532059904

TUBE.5.3/4.5/6

Note: (not furnished with tractor)

$23.99

$

In Stock, Qty 8

0

64

Nut - Hex Jam 3/8 - 16

$

$

Not available

65

Husqvarna 532108212

TRUNION HYT

$

$

Not available

66

Husqvarna 532121750

ROD ADJ CONTROL

$

$

Not available

67

Husqvarna 532004497

RETAINER M

$4.99

$

In Stock, Qty 16

0

69

Bolt-Hex 3/8-16x1-1/2

$

$

Not available

70

Screw- Hex Washer Thread Rolling 318- 16x3/4

$

$

Not available

71

Screw - Hex Washer Thread Rolling 5/16 - 18 x 1/2

$

$

Not available

73

Husqvarna 532006855

ZERK.GREASE.TAPERED
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

74

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 532005320

INSUL CLIP T

$

$

Not available

77

Husqvarna 532108685

GEAR PINION T

$

$

Not available

78

Husqvarna 532109816

NYLINER T (7283A)

$5.99

$

In Stock, Qty 7

0

79

Husqvarna 532101930

WASHER YTV

$

$

Not available

80

Washer 13/32 x 13/16 x 16 ga.

$

$

Not available

81

Washer 13/32 x 3/4 x 12Ga.

$

$

Not available

82

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

83

Washer 11/32 x 3/4 x 16Ga.

$

$

Not available

84

Washer 15/32 x 15/16 x 16 Ga.

$

$

Not available

85

Husqvarna 532110739

WASHER T

$

$

Not available

86

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

87

Husqvarna 532121217

GUIDE CONTROL

$

$

Not available

88

Husqvarna 532121216

BRKT NLA

$

$

Not available

89

Screw, Hex Washer Thd Rol 5/16 -18 x 3/4 TYTT

$

$

Not available

90

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

91

Washer 7/32 x 1/2 x 16 Ga.

$

$

Not available

92

Husqvarna 871011012

Bolt,10-24x3/4

$

$

Not available

93

Husqvarna 873661000

Nut,10-24

$

$

Not available

94

Husqvarna 532121204

BELLCRANK NLA

$

$

Not available

95

Husqvarna 532121206

BRKT BELLCRANK NLA

$

$

Not available

96

Husqvarna 532100536

SHOULDER BOLT LT

$

$

Not available

97

Bolt, Fin Hex 3/8 UNC - 16 x 3/4

$

$

Not available

98

Nut - Lock 5/16 - 18

$

$

Not available

99

Husqvarna 532121190

KEEPER

$

$

Not available
