YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Transaxle And Pump Assembly Parts Diagram

Yard Tractor

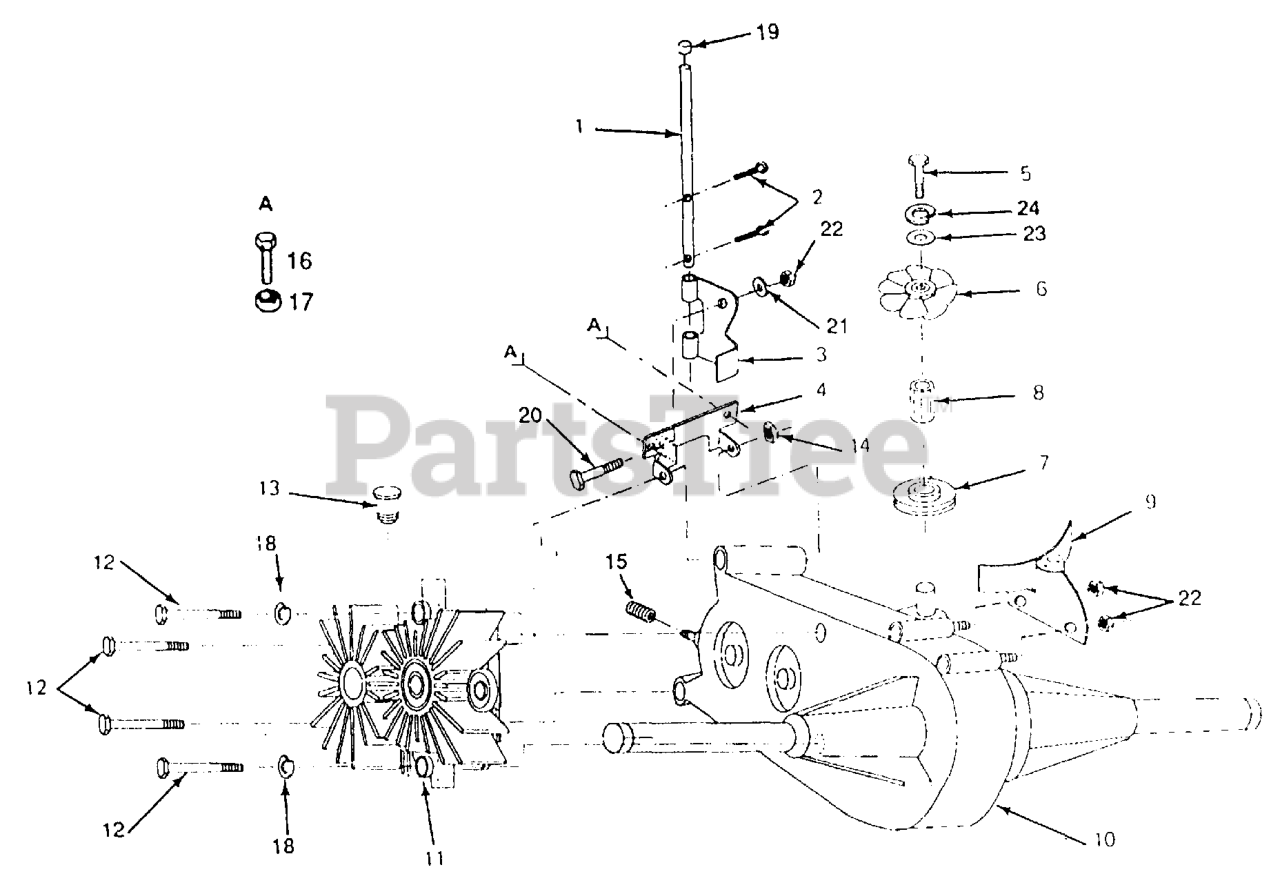

Transaxle And Pump Assembly Parts Diagram

  • Title

1

Husqvarna 532121192

ROD FREE WHL CNTR
(Superseded to 532123634)

$

$

Not available

2

Pin, Cotter 3/32 x 3/4

$

$

Not available

3

Husqvarna 532121193

CONTROL COAST**
(Superseded to 532123634)

$

$

Not available

4

Husqvarna 532121188

BRACKET

$

$

Not available

5

Bolt, Hex Hd.1/4" - 20 UNC x 3/4

$

$

Not available

6

Husqvarna 532121186

FAN NLA

$

$

Not available

7

Husqvarna 532121180

PULLEY TRANSAXLE

$

$

Not available

8

Husqvarna 532121211

STANDOFF

$

$

Not available

9

Husqvarna 532121182

GUARD ASSY

$

$

Not available

10

Differential Assembly

$

$

Not available

11

Pump Assembly

$

$

Not available

12

Bolt, Hex Fin. 5/16- 18 UNC x 4.5

$

$

Not available

13

Husqvarna 532121323

RESERVOIR
(Superseded to 506774701)

$

$

Not available

14

Nut, Crown Lock 5/16 - 18

$

$

Not available

15

Husqvarna 532121250

SPRING

$4.99

$

Usually ships in 3-10 days

0

16

Bolt, 3/8 - 16 x 3/4

$

$

Not available

17

Nut 3/8 - 16 UNC

$

$

Not available

18

Lockwasher

$

$

Not available

19

Husqvarna 532124236

CAP
(Superseded to 532071673)

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 532124815

BOLT T
(Superseded to 532007605)

$

$

Not available

21

Husqvarna 532120529

WASHER T

$

$

Not available

22

Nut, Crown lock 1/4 - 20 UNC

$

$

Not available

23

Washer 9/32 x 1 - 1/4 x 16 ga.

$

$

Not available

24

Lockwasher, 1/4

$

$

Not available
