YTH 142 (954000352-A) - Husqvarna Yard Tractor (1991-08) Drive Parts Diagram

Yard Tractor

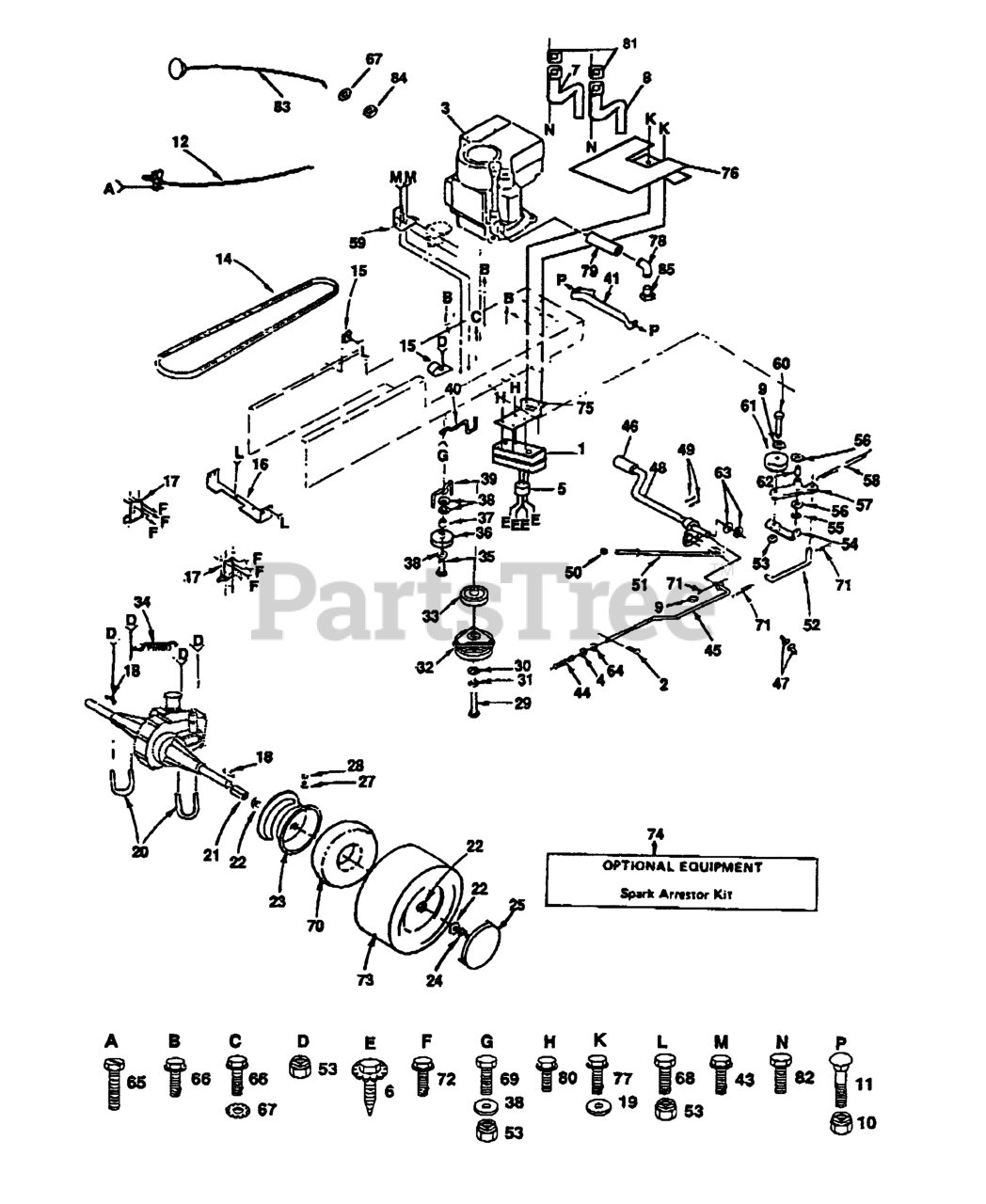

Drive Parts Diagram

  • Title

1

Husqvarna 532122440

MUFFLER

$

$

Not available

2

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

3

Engine, Briggs & Stratton, Vanguard Model #303777

$

$

Not available

4

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

6

Husqvarna 817030808

SCREW
(Superseded to 532161464)

$

$

Not available

7

Husqvarna 532122434

TUBE ASSY EXH LH

$

$

Not available

8

Husqvarna 532122435

TUBE ASSY EXH RH

$

$

Not available

9

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

11

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 532132763

Control, Throttle

$

$

Currently unavailable

14

Husqvarna 532123461

V BELT DR

$

$

Not available

15

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

16

Husqvarna 532121187

BRKT,MTG NLA

$

$

Not available

17

Husqvarna 532126649

BRKT TRANSAXLE

$

$

Not available

18

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 532121189

U BOLT

$

$

Not available

21

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

22

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124999

RIM 8"
(Superseded to 532106108)

$125.99

$

In Stock, only 2 left!

0

24

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124578

CAP,HUB REAR

$

$

Not available

27

Husqvarna 532065139

VALVE STEM LT

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532059192

VALVE CAP

$5.99

$

In Stock, Qty 11

0

29

Husqvarna 871130768

Bolt, Hex, Fin 7/16-20 UNF x 4 Grade 8

$

$

Not available

30

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

31

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 532108218

CLUTCH ELEC HYT
(Superseded to 532142600)

$

$

Not available

33

Husqvarna 532123795

ENGINE PULLEY
(Superseded to 532136906)

$

$

Not available

34

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

35

Husqvarna 874760644

BOLT

$

$

Not available

36

Husqvarna 532004859

FLAT IDLER PULLEY
(Superseded to 532123674)

$31.99

$

In Stock, only 2 left!

0

37

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 532109070

BELT KEEPER LT NLA

$

$

Not available

40

Husqvarna 532129921

KEEPER, BELT

$

$

Not available

41

Husqvarna 532109169

KIT RETAINER YTH
(Superseded to 532109172)

$

$

Not available

43

Husqvarna 817021008

SCREW

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 20+

0

45

Husqvarna 532121200

ROD BRAKE
(Superseded to 532132654)

$

$

Not available

46

Husqvarna 532123533

COVER, PEDAL (1 2)

$

$

Not available

47

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

48

Husqvarna 532122424

SHAFT FOOT PEDAL

$

$

Not available

49

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

51

Husqvarna 532133261

BRAKE PARK ROD

$

$

Not available

52

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

53

Husqvarna 873680600

LOCKNUT

$

$

Not available

54

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

55

Husqvarna 812000039

KLIP RING

$

$

Not available

56

Husqvarna 532110812

WASHER LT

$

$

Not available

57

Husqvarna 532123789

ARM IDLER

Note: (Include Key No. 62)

$

$

Not available

58

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

59

Husqvarna 532108236

BRACKET LT

$

$

Not available

60

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

61

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

62

Husqvarna 532105706

BEARING LT (2 2)

$6.99

$

In Stock, Qty 14

0

63

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, Qty 15

0

64

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

65

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

66

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

67

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 13

0

69

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

70

Husqvarna 532124926

TUBE
(Superseded to 532007152)

$56.99

$

Usually ships in 3-10 days

0

71

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, only 2 left!

0

72

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

73

Husqvarna 532122082

TIRE.TS.20X10-8
(Superseded to 532125833)

$125.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532121851

SPARK ARREST

$

$

Not available

75

Husqvarna 532122439

BRACKET MUFFLER

$

$

Not available

76

Husqvarna 532122981

HEAT SHIELD

$

$

Not available

77

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

79

Husqvarna 813280336

Nipple, Pipe

$

$

Not available

80

Husqvarna 817190408

SCREW ST
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

81

Gasket

Note: (Order from Engine Mfg.)

$

$

Not available

82

Bolt, Metric

Note: (Order from Engine Mfg.)

$

$

Not available

83

Husqvarna 532132781

CHOKE CONTROL

$

$

Not available

84

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

85

Plug, Oil Drain

Note: (Order from Engine Manufacturer)

$

$

Not available
