YTH 142 (954000352-A) - Husqvarna Yard Tractor (1991-08) Lift Adjustment Parts Diagram

Yard Tractor

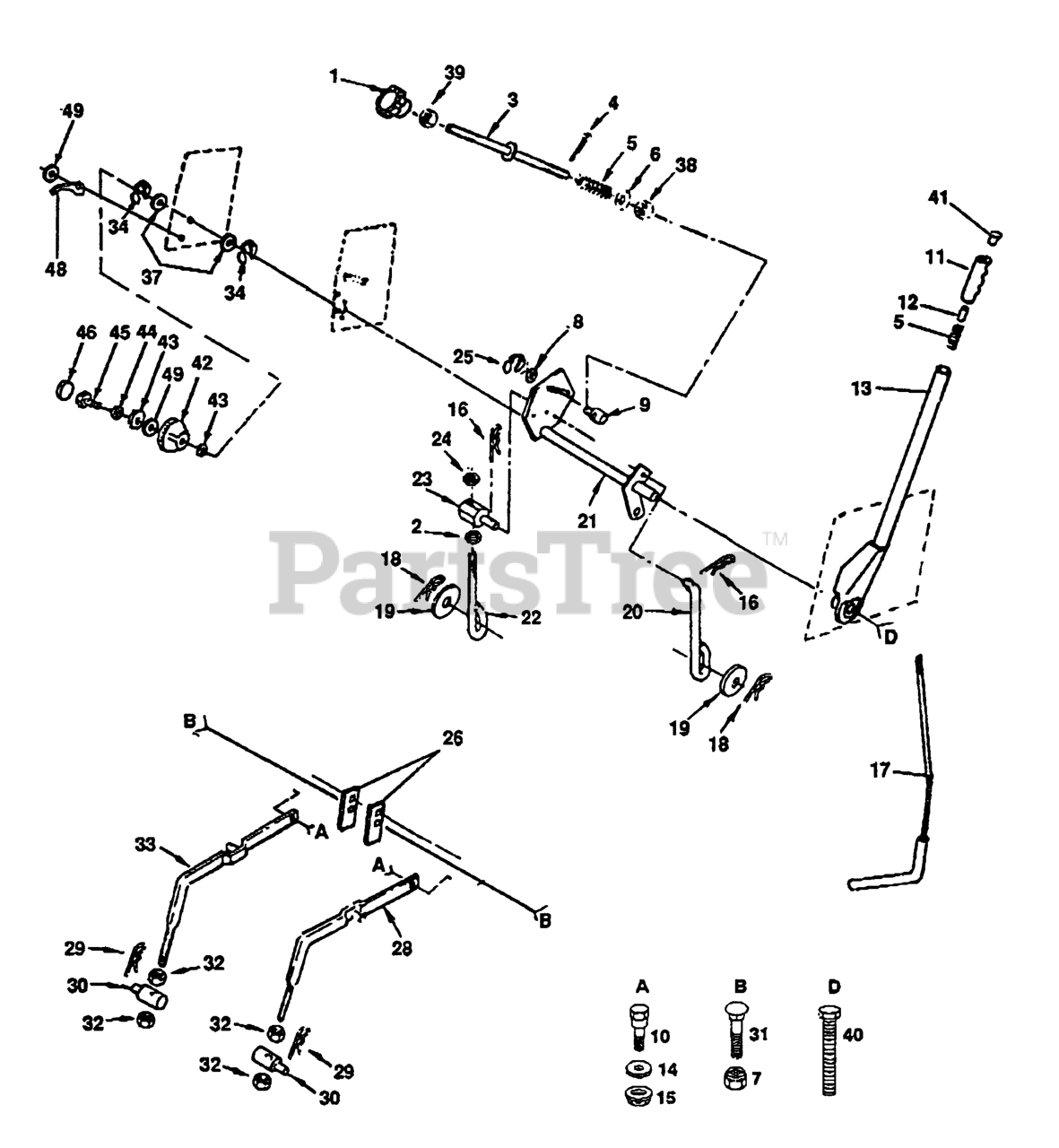

Lift Adjustment Parts Diagram

  • Title

1

Husqvarna 532121891

HDLE ADJ LIFT

$

$

Not available

2

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 532110729

ROD LIFT LT

$

$

Not available

4

Husqvarna 876020308

COTTER PIN
(Superseded to 596917601)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

7

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Gauge

$

$

Not available

9

Husqvarna 532110810

TRUNION LT

$

$

Not available

10

Husqvarna 532105848

BOLT, SHOULDER LT

$

$

Not available

11

Husqvarna 532125631

GRIP HANDLE

$8.49

$

In Stock, Qty 9

0

12

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

13

Husqvarna 532121002

LIFT LEVER KIT
(Superseded to 532123096)

$

$

Not available

14

Husqvarna 532110739

WASHER T

$

$

Not available

15

Husqvarna 873980600

NUT SPECIAL T
(Superseded to 873680600)

$

$

Not available

16

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

17

Husqvarna 532121006

LEVER ROD LT

$

$

Not available

18

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$5.99

$

In Stock, only 2 left!

0

19

Husqvarna 819171516

WASHER T
(Superseded to 596040101)

$3.99

$

In Stock, Qty 14

0

20

Husqvarna 532110029

LIFT LINK LT

$

$

Not available

21

Husqvarna 532131926

Shaft, Lift, Assembly
(Superseded to 583617901)

$

$

Not available

22

Husqvarna 532110448

LINK ADJ T

$

$

Not available

23

Husqvarna 532110447

TRUNNION T
(Superseded to 532132793)

$

$

Not available

24

Husqvarna 873710700

NUT LOCK YTH
(Superseded to 873610700)

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 812000037

Ring, Klip

$

$

Not available

26

Husqvarna 532121252

UPSTOP

$

$

Not available

28

Husqvarna 532121598

RH SUSP ARM ASM

$

$

Not available

29

Husqvarna 532124960

SPRING H
(Superseded to 532009135)

$

$

Not available

30

Husqvarna 532106308

TRUNION LFT LR LT
(Superseded to 532175689)

$

$

Not available

31

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 873220800

NUT 1/2 X 13
(Superseded to 596433401)

$3.99

$

In Stock, only 2 left!

0

33

Husqvarna 532121599

LH SUSP ARM ASM

$

$

Not available

34

Husqvarna 812000022

E-RING

$3.49

$

In Stock, only 2 left!

0

37

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 18 Gauge

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532110807

NUT T

$

$

Not available

39

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

40

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$9.99

$

In Stock, Qty 6

0

41

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

42

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

43

Husqvarna 819112410

WASHER

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

46

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

48

Husqvarna 532124763

POINTER HGT INDAT
(Superseded to 532123933)

$

$

Not available

49

Husqvarna 532120529

WASHER T

$

$

Not available
