YTH 150 (954140007) - Husqvarna Yard Tractor (1997-12) Engine Parts Diagram

Yard Tractor

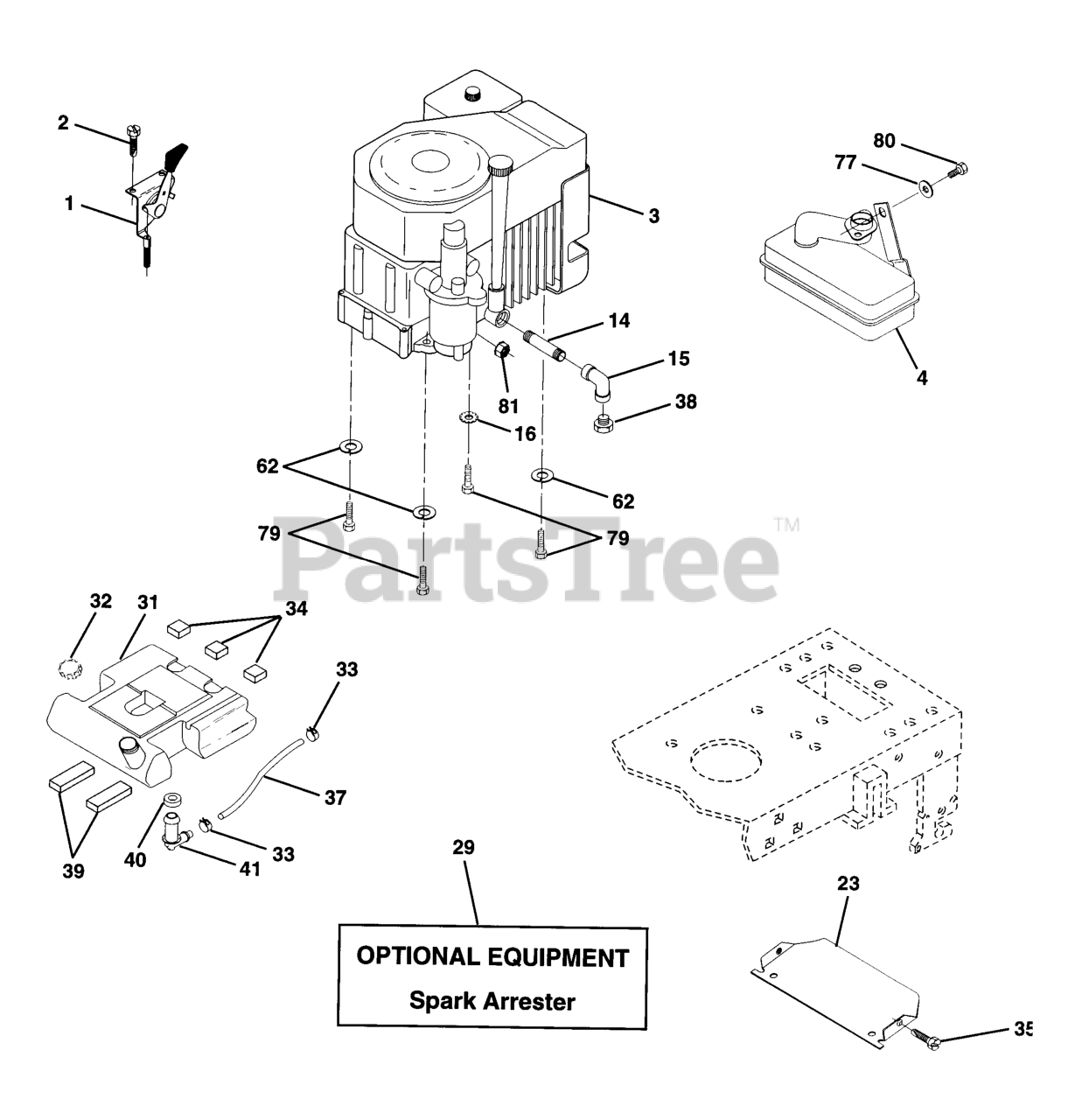

Engine Parts Diagram

  • Title

1

Husqvarna 532141296

CONTROL SWITCH 27 LH
(Superseded to 532170805)

$

$

Not available

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

3

Engine Kohler Model No. CV15s

$

$

Not available

4

Husqvarna 532137350

MUFFLER LT 12.5
(Superseded to 532159420)

$125.99

$

Usually ships in 3-10 days

0

14

Husqvarna 813280328

Nipple Pipe 3/8 Npt X 3-1/2

$

$

Not available

15

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532156123

SHIELD HEAT

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532153630

FUEL TANK
(Superseded to 532157103)

$

$

Not available

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532124923

HOSE T
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

38

Plug Oil Drain (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532139277

STEM FUEL TANK

$7.99

$

In Stock, Qty 20+

0

62

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$3.49

$

In Stock, Qty 20+

0

79

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

80

Husqvarna 874760508

Bolt Hex Hd. 5/16-18unc x 1/2

$

$

Not available

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0
