YTH 150 (954140007-J) - Husqvarna Yard Tractor (1999-03) Steering Assembly Parts Diagram

Yard Tractor

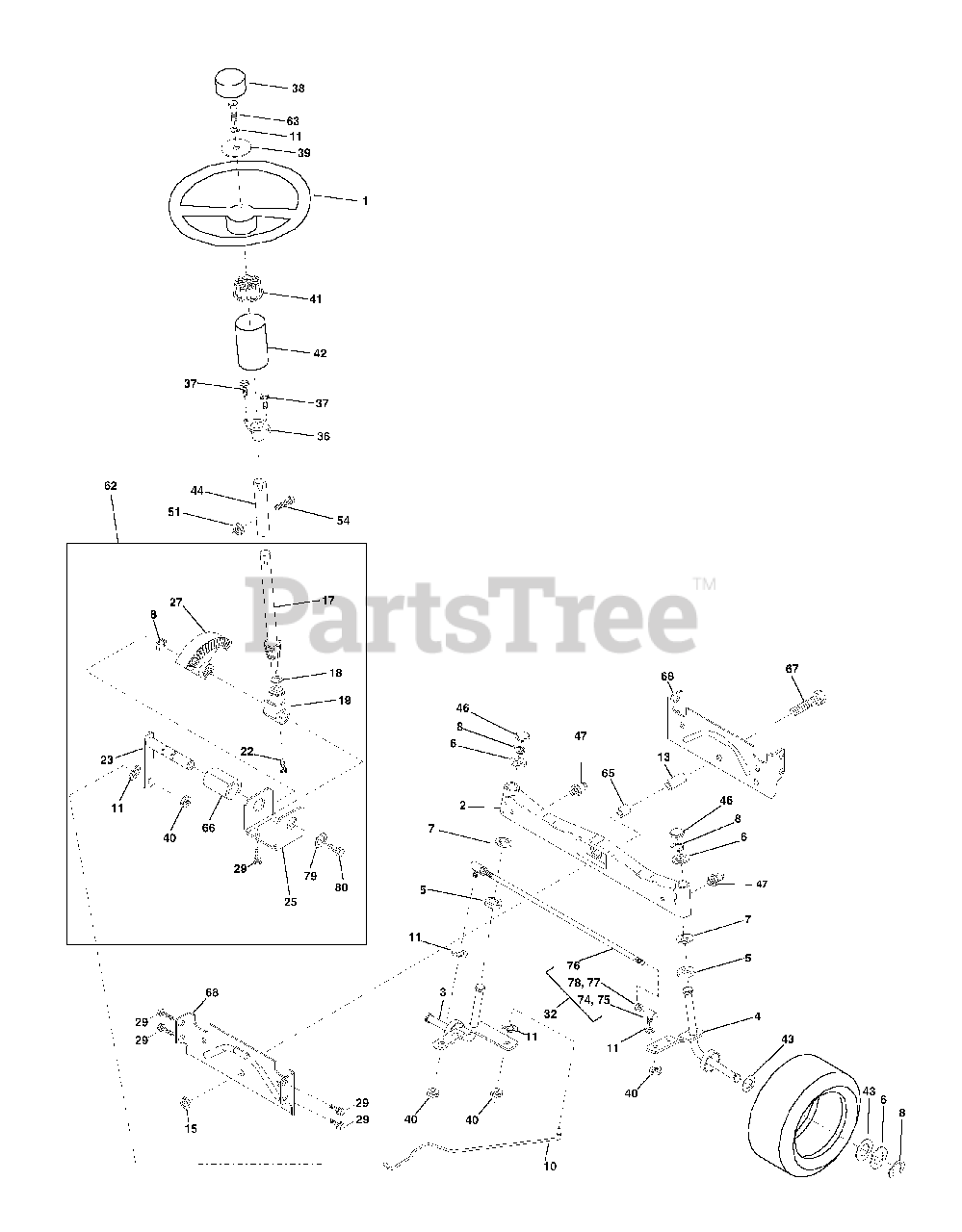

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532124415

Wheel Steering

$

$

Not available

2

Husqvarna 532137094

Axle Front Casting Machined
(Superseded to 532178557)

$

$

Not available

3

Husqvarna 532157479

Spindle Asm Cast LH

$

$

Not available

4

Husqvarna 532157478

Spindle Asm Cast RH

$

$

Not available

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532154432

Link Drag Extended Cast

$93.99

$

In Stock, Qty 5

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532167118

Bearing Axle STLT/GT

$

$

Not available

15

Husqvarna 873901000

Nut Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532156546

Shaft Asm Strg Private Label
(Superseded to 531166901)

$47.99

$

In Stock, Qty 13

0

18

Husqvarna 532057079

Washer Thrust 515x 750x 033

$6.49

$

In Stock, Qty 19

0

19

Husqvarna 532160395

Support Shaft

$9.99

$

In Stock, Qty 20+

0

22

Husqvarna 532165857

Screw Hex Wshhd Torx

$6.49

$

In Stock, only 4 left!

0

23

Husqvarna 532165851

Shaft Asm Pittman

$

$

Not available

25

Husqvarna 532154406

Bracket Steering

$8.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532136874

Gear Sector 22 Teeth

$80.99

$

In Stock, Qty 5

0

29

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

32

Husqvarna 532137347

Rod Tie
(Superseded to 532186799)

$87.99

$

In Stock, only 2 left!

0

36

Husqvarna 532155099

Bushing Strg
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Husqvarna 532152927

Screw TT #32.5 x 5 x 3/8 Flange

$7.49

$

In Stock, Qty 19

0

38

Husqvarna 532124416

Cap Wheel Steer

$

$

Not available

39

Husqvarna 819133808

Washer 13/32 x 2-3/8 x 8 Ga.
(Superseded to 819133812)

$

$

Not available

40

Husqvarna 532124701

Nut Lock Center 3/8-24 Unf
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532100711

Adaptor Wheel Strg
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

42

Husqvarna 532155092

Boot Dash Steering
(Superseded to 532145054)

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 532153720

Extension Steering Non-adjust
(Superseded to 532153721)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

51

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18 UNC

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

Bolt Fin Hex 5/16-18 UNC x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532167902

Steering Assembly
(Superseded to 584371701)

$133.99

$

In Stock, only 1 left!

0

63

Husqvarna 874780616

Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532154780

Spacer

$9.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154404

Bearing Arm Pittman

$6.49

$

In Stock, Qty 5

0

67

Husqvarna 874781044

Bolt Fin Hex 5/8-11 UNC x 2-3/4

$

$

Not available

68

Husqvarna 532154429

Brace, Axle

$21.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532109850

Joint Asm Ball Rh
(Superseded to 532121160)

$24.99

$

In Stock, only 2 left!

0

75

Husqvarna 532109851

Joint Asm Ball Lh

$31.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532137156

Rod Tie Ball J Adj
(Superseded to 532186799)

$87.99

$

In Stock, only 2 left!

0

77

Husqvarna 873700600

Nut Hex Jam 3/8-24 Unf Lh

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 873360600

Nut Hex Jam 3/8-24 Unf

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

80

Husqvarna 874950612

Bolt Hex Nylon 3/8-16 x 3/4

$6.49

$

In Stock, only 3 left!

0
