YTH 150 (960410022-03) - Husqvarna Yard Tractor (2009-01) ENGINE Parts Diagram

Yard Tractor

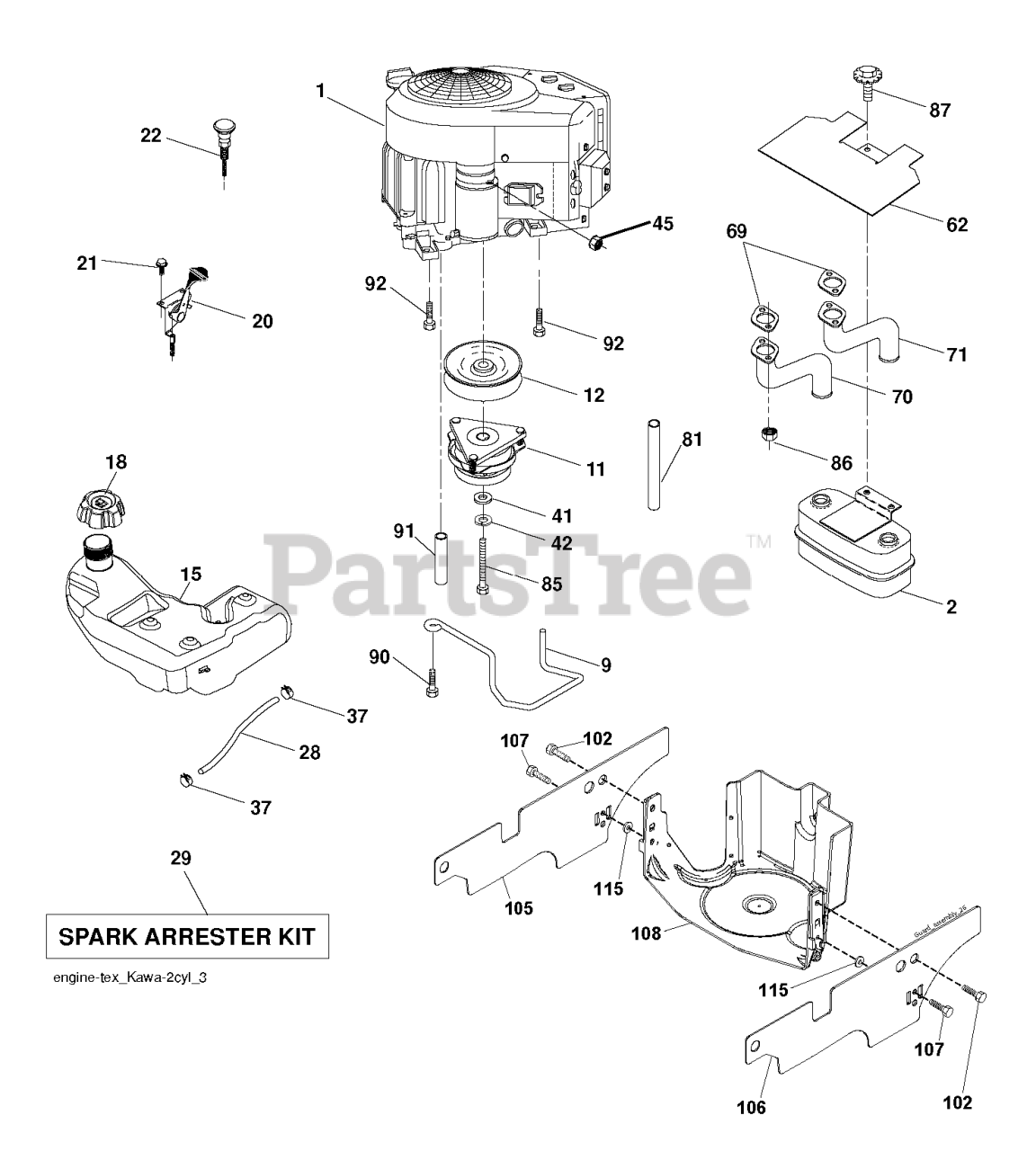

ENGINE Parts Diagram

  • Title

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$31.99

$

In Stock, only 2 left!

0

115

Husqvarna 532423062

PALNUT 1/4

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 584248702)

$20.99

$

In Stock, Qty 7

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$22.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 15

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 7

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$398.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532181442

EXHAUST TUBE RH KAWI

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.49

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$

$

Not available

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 2 left!

0

106

Husqvarna 532410529

SHIELD.SIDE.RH.3842"TEX FRENCH

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

107

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

69

NEEDS DESCRIPTION

Note: Gasket

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$39.99

$

In Stock, Qty 7

0

70

Husqvarna 532181444

EXHAUST TUBE LH KAWI

$51.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532410528

SHIELD.SIDE.LH.3842"TEX FRENCH

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$3.49

$

In Stock, only 4 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$62.99

$

In Stock, only 2 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 18

0

108

Husqvarna 532421794

ENGINE COVER
(Superseded to 583391801)

$

$

Not available
