YTH 150 XP (960110115-00) - Husqvarna Yard Tractor (2006-01) ELECTRICAL Parts Diagram

Yard Tractor

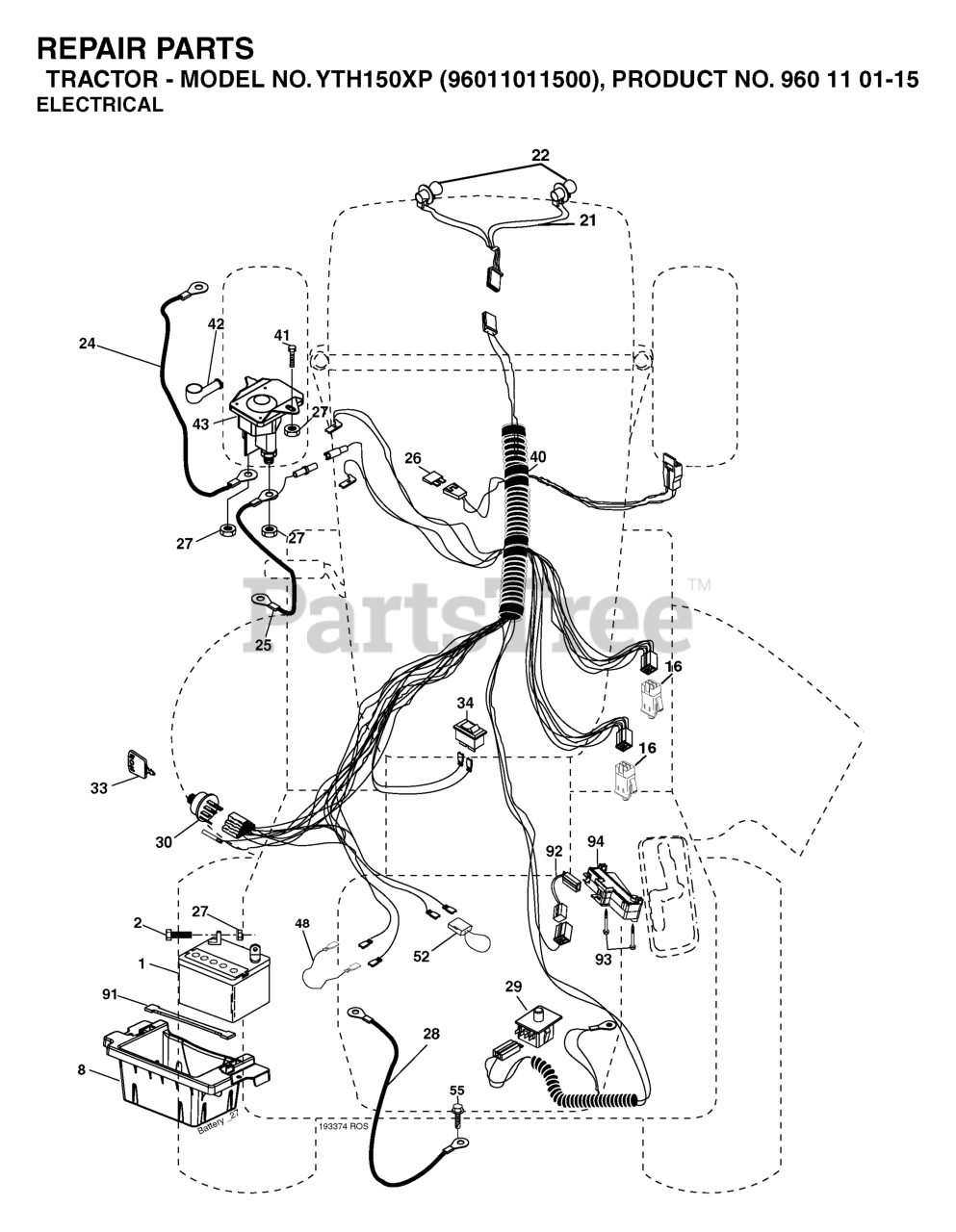

ELECTRICAL Parts Diagram

  • Title

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 10

0

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 3 left!

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

$9.99

$

In Stock, Qty 18

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532180449

COVER TERMINAL
(Superseded to 532435395)

$6.49

$

In Stock, only 1 left!

0

92

Husqvarna 532193465

HARNESS.PIGTAIL.REVERSE.SWITCH

$15.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$13.99

$

In Stock, Qty 17

0

8

Husqvarna 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 10

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

SCREW.PLASTITE

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 9

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 13

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532193370

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$37.99

$

In Stock, only 1 left!

0
