YTH 1542 (954567048-A) - Husqvarna 42" Yard Tractor (2000-11) Mower Deck Parts Diagram

42" Yard Tractor

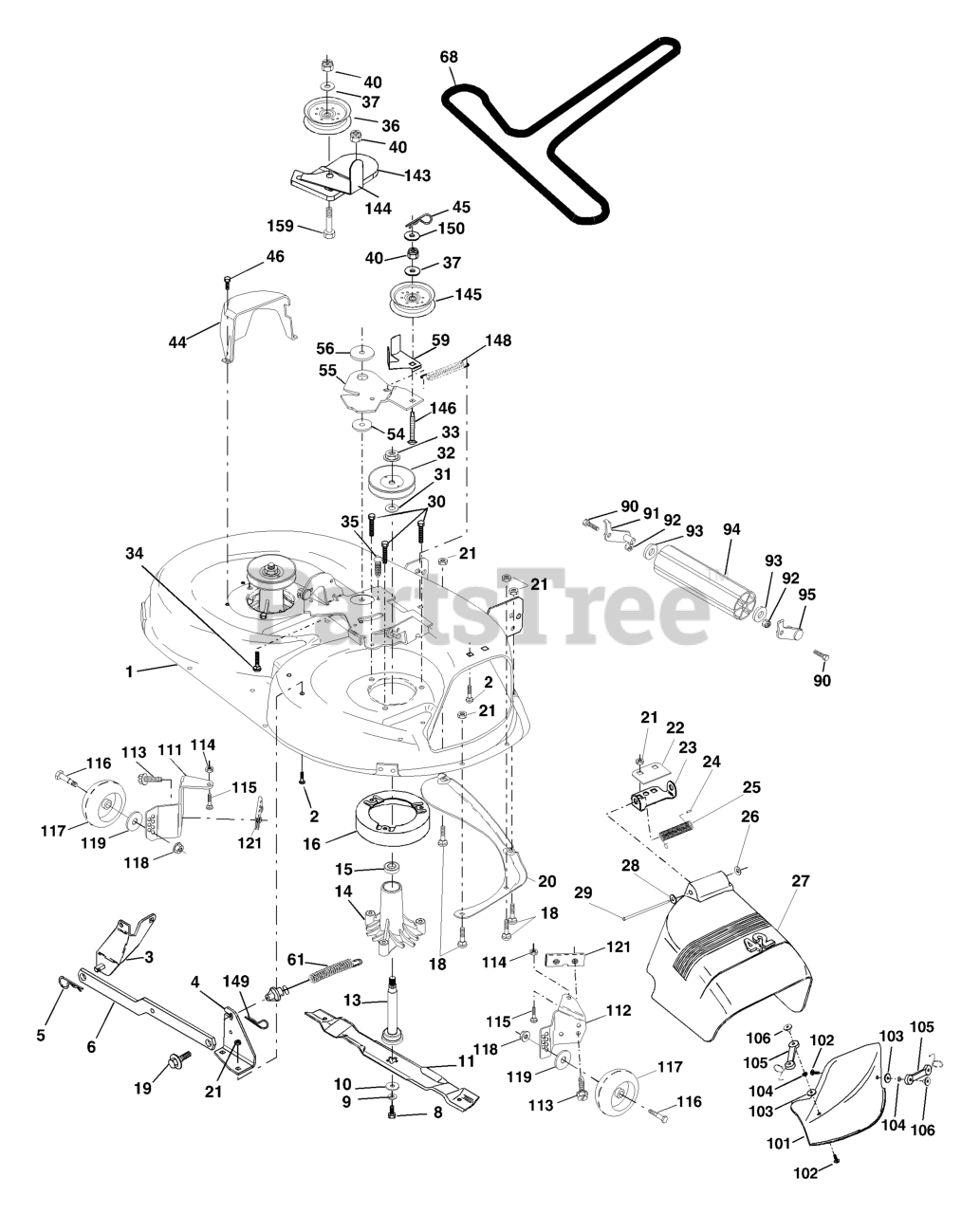

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532176822

DECAL, FENDER

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$20.99

$

In Stock, Qty 13

0

4

Husqvarna 532176935

BRACKET ASM DECK 42"
(Superseded to 532165460)

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 531149301)

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 19

0

11

Husqvarna 532138498

Blade Mower 42" High Perf.
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

11

Husqvarna 532134149

BLADE.42".MULCH

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$51.99

$

In Stock, only 1 left!

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

16

Husqvarna 532140329

STRIPPER
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Husqvarna 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

In Stock, only 3 left!

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

22

Husqvarna 532176929

BRKT, STIFF 42" DECK
(Superseded to 532134753)

$

$

Not available

23

Husqvarna 532176927

BRKT, DEFLECTOR MOWER 42"
(Superseded to 529845901)

$5.99

$

In Stock, Qty 14

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 16

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532171634

SHILED DEFLECTOR
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$1.49

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532173436

PULLEY MANDREL

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 2 left!

0

34

Husqvarna 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$39.99

$

In Stock, Qty 7

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 532176932

ARM IDLER 42"
(Superseded to 531166601)

$22.99

$

In Stock, Qty 20+

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, Qty 20+

0

59

Husqvarna 532173442

GUARD TUV IDLER
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

61

Husqvarna 532174882

SPRING EXT ELEC CLUTCH

$20.99

$

In Stock, Qty 9

0

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

90

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, only 2 left!

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

93

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, only 4 left!

0

94

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 531154101)

$14.99

$

In Stock, only 4 left!

0

101

Husqvarna 532136420

COVER MULCH 42"

$35.99

$

In Stock, Qty 10

0

102

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

103

Husqvarna 819061216

WASHER

$3.49

$

In Stock, Qty 20+

0

104

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 2 left!

0

105

532160793

LATCH ASSY

$

$

Not available

106

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

111

Husqvarna 532176933

BRKT WHL GUAGE LH 42"
(Superseded to 532181040)

$39.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532176934

BRKT WHL GUAGE RH 42"
(Superseded to 532181040)

$39.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817060514

Screw Tapping 5/16-18 Unc

$

$

Not available

114

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

115

Husqvarna 872110504

BOLT.CARR.5/16-18X1/2
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

116

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 1 left!

0

117

Husqvarna 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

121

Husqvarna 532173986

BRACKET
(Superseded to 532143723)

$

$

Not available

143

Husqvarna 532176931

BRKT ARM IDLER 42"
(Superseded to 529844301)

$9.49

$

In Stock, Qty 14

0

144

Husqvarna 532173441

KEEPER BELT 42" CLUTCH

$7.99

$

In Stock, Qty 17

0

145

Husqvarna 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, Qty 16

0

146

Husqvarna 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$6.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$4.99

$

In Stock, Qty 20+

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$4.99

$

In Stock, only 2 left!

0

150

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

159

Husqvarna 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 12

0

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

Note: (Includes Key Numbers 8-10, 13-15, 31 and 32)

$62.99

$

In Stock, Qty 20+

0

Husqvarna 532176789

DECK ASM. 42"
(Superseded to 532176207)

Note: Complete (Standard Deck, Order Separately Noseroller, Mulcher Plate and Gauge Wheel Components, Key Nos. 90-95, 101- 106 and 111-121)

$

$

Not available
