YTH 1542 (954568526-A) - Husqvarna 42" Yard Tractor (2002-01) Chassis And Enclosures Parts Diagram

42" Yard Tractor

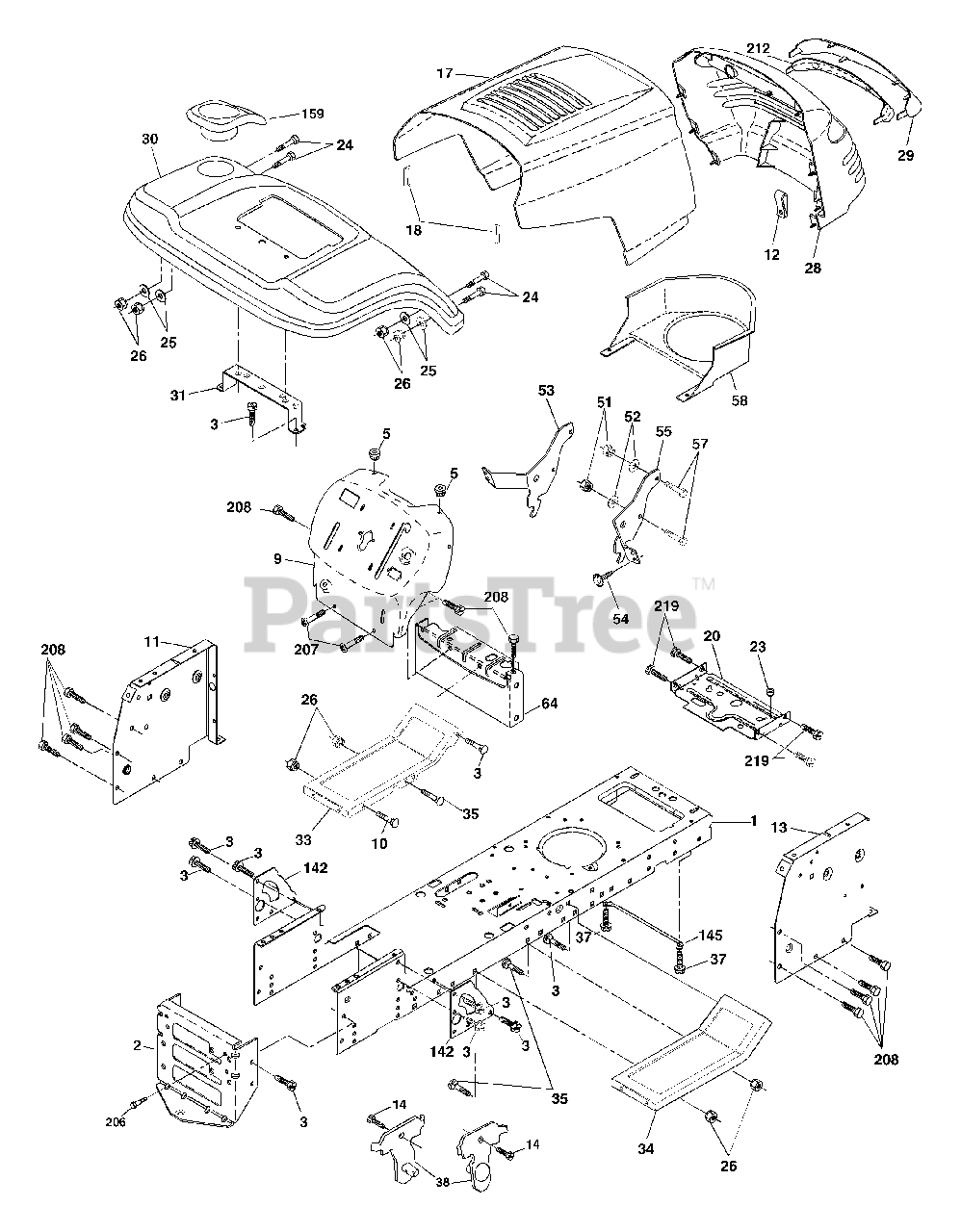

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis stamping
(Superseded to 579841401)

$241.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar, 12 Ga.

$40.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532155272

Bumper Hood/Dash

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 532171924

Dash Slkscr
(Superseded to 532168345)

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532174996

Panel Dash Lh

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532145660

Clip Tinnerman

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532181719

Panel Dash Rh
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

Hood LT/PL
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

18

Husqvarna 532126938

Bumper Hood

$

$

Not available

20

Husqvarna 532180679

Plate Mtg Battery Fuel Tank Fr

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124028

Bushing

$6.99

$

In Stock, only 3 left!

0

24

Husqvarna 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

Nut Lock Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532179845

Grille/Lens Asm

$

$

Not available

29

Husqvarna 532176645

Lens
(Superseded to 532146654)

$

$

Not available

30

Husqvarna 532177087

Fender
(Superseded to 532169470)

$132.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532136619

Bracket Fender

$

$

Not available

33

Husqvarna 532181057

Footrest Pnt Lh
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532181058

Footrest Pnt Rh
(Superseded to 532442579)

$27.99

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$9.99

$

In Stock, only 2 left!

0

51

Husqvarna 873800400

Nut Lock w/Insert 1/4-20 Unc
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532144697

Bracket Grille Lh

$

$

Not available

54

Husqvarna 532161464

Screw Hex Wsh 8-18 x 7/8

$

$

Not available

55

Husqvarna 532144696

Bracket Grille Rh

$

$

Not available

57

Husqvarna 874780412

Bolt Hex 1/4-20 x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Air Duct Engine P/L

$

$

Not available

64

Husqvarna 532154798

Dash Lower STLT

$31.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

Plate Reinforcement STLT

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532177088

Cupholder Stlt Grey
(Superseded to 532169473)

$

$

Not available

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 20+

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2

$6.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

In Stock, only 2 left!

0

212

Husqvarna 532156229

Insert Lens Reflective
(Superseded to 532174503)

$

$

Not available

219

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0
