YTH 1542 XP (954170225-F) - Husqvarna 42" Yard Tractor (2004-09) MOWER LIFT / DECK LIFT Parts Diagram

42" Yard Tractor

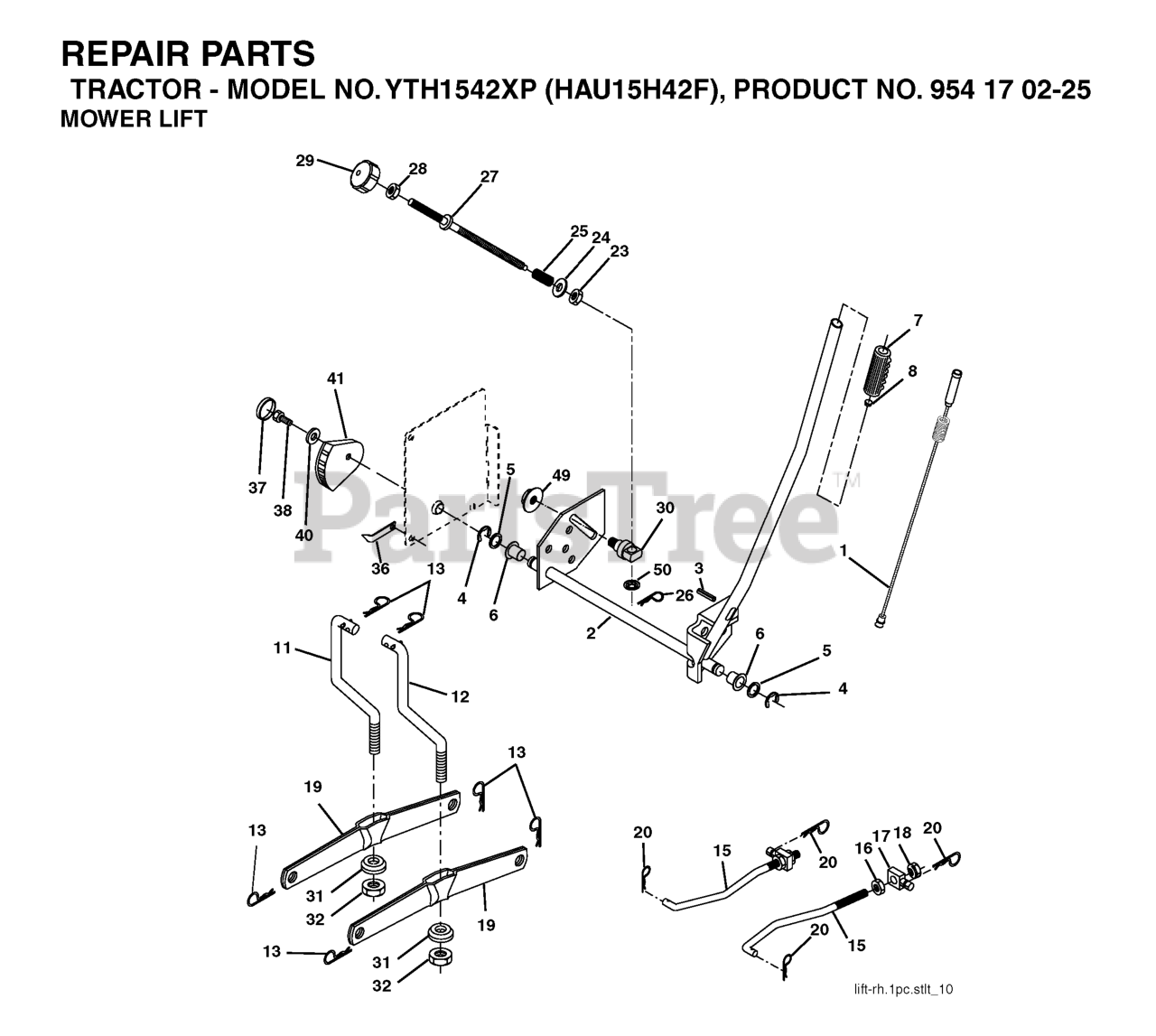

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

7

Husqvarna 532125631

GRIP HANDLE

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 532175689

TRUNNION

$

$

Not available

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532110807

NUT T

$

$

Not available

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$12.99

$

In Stock, Qty 9

0

29

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 819131016

WASHER

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532150233

TRUNNION

$12.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

5

Husqvarna 819211621

WASHER

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

3

Husqvarna 532178981

PIN GROOVE

$

$

Not available

41

Husqvarna 532155098

IND. HEIGHT STLT

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532173288

LINK.SUSPENSION.FRONT

$12.99

$

In Stock, Qty 19

0

37

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

27

Husqvarna 532164543

ROD ADJ LIFT

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532159476

SHAFT.ASM.LIFT.RH.INF

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

1

Husqvarna 532159461

WIRE.ASM.INNER.SP

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, Qty 11

0

25

Husqvarna 532164024

SPRING

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, Qty 7

0

20

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 819112410

WASHER

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532169865

BEARING.PIVOT.LIFT

$

$

Not available

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0
