YTH 1542 XP (954567253-A) - Husqvarna 42" Yard Tractor (2001-01) Engine Parts Diagram

42" Yard Tractor

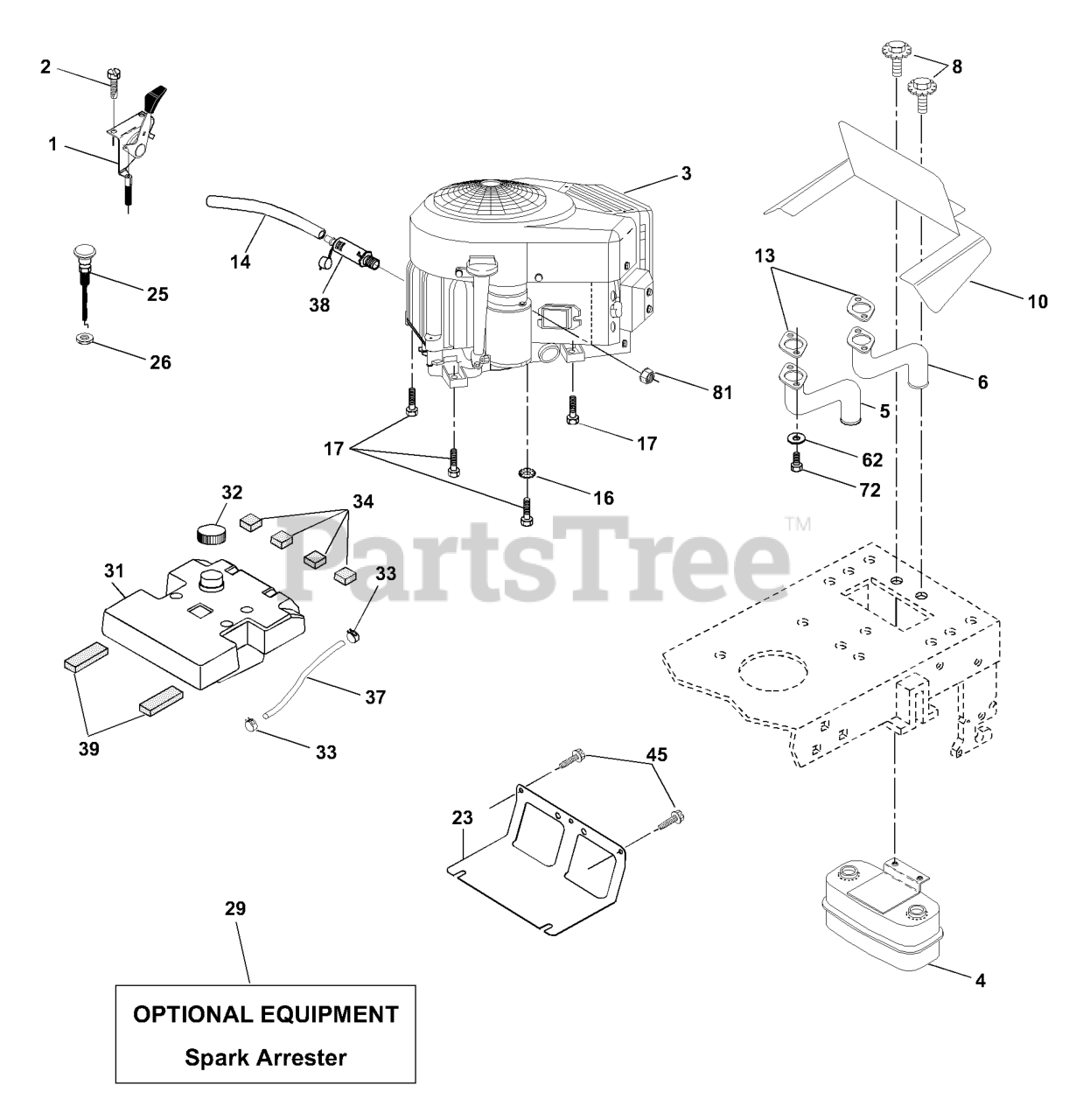

Engine Parts Diagram

  • Title

1

Husqvarna 532170863

CONTROL,TH/CH FLAG

$33.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.99

$

Usually ships in 3-10 days

0

3

Engine Kawa

Note: Model FH45IV; (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

5

Husqvarna 532176068

EXHAUST.TUBE.RH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

13

Husqvarna 532178084

GASKET.EXHAUST.KAWASAKI.15-1
(Superseded to 532178591)

$

$

Not available

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

17

UNKNOWN

$

$

Not available

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 7

0

25

Husqvarna 532145996

CONTROL, CHOKE

$

$

Not available

26

Husqvarna 873920600

Nut Keps 3/8-24

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

31

Husqvarna 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

37

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$23.99

$

In Stock, only 4 left!

0

38

Husqvarna 532148315

PLUG, OIL DRAIN EASY
(Superseded to 532181654)

$23.99

$

In Stock, Qty 20+

0

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 1 left!

0

41

Husqvarna 532139277

STEM FUEL TANK

$7.49

$

In Stock, Qty 20+

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

62

UNKNOWN

$

$

Not available

72

Husqvarna 871070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

78

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

81

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.99

$

In Stock, only 3 left!

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0
