YTH 1542 XP (954568465) - Husqvarna 42" Yard Tractor (2004-03) Chassis And Enclosures Parts Diagram

42" Yard Tractor

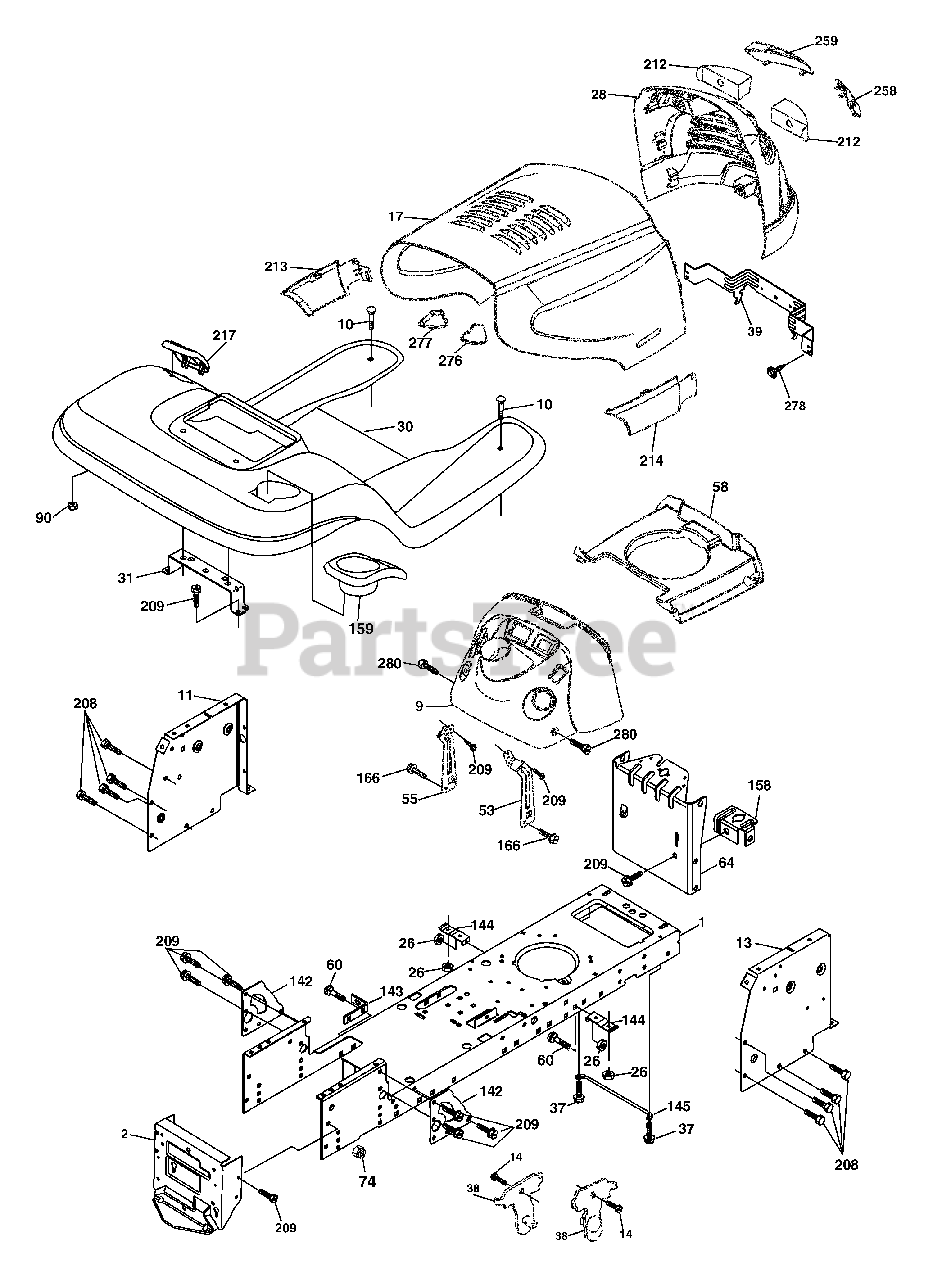

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis Stamping
(Superseded to 579841401)

$241.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar

$40.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532190251

Dash P/L Husq
(Superseded to 532193641)

$

$

Not available

10

Husqvarna 872140608

Bolt Rdhd Sqnk 3/8-16 unc x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532174996

Panel Dash Lh

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532172106

Panel Dash Rh

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532189977

Hood
(Superseded to 532188374)

$157.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

Nut Lock w/Insert 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532189980

Grille Lens Asm
(Superseded to 532188269)

Note: (Includes Key Nos. 212, 258-259)

$157.99

$

In Stock, only 1 left!

0

30

Husqvarna 532191815

Fender
(Superseded to 532192814)

$

$

Not available

31

Husqvarna 532139976

Bracket

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$9.99

$

In Stock, only 2 left!

0

39

Husqvarna 532174714

Bracket Pivot Laser
(Superseded to 532407807)

$26.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532188372

Bracket Dash RH

$

$

Not available

55

Husqvarna 532188373

Bracket Dash LH

$6.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532184460

Duct Air

$

$

Not available

60

Husqvarna 872140606

Bolt RDHD SQNK 3/8-16 x 3/4

$

$

Not available

64

Husqvarna 532174997

Dash Lower Stlt

$30.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

Nut Self-Thd. Wsh-Hd 1/4 Zinc

$4.99

$

In Stock, only 1 left!

0

142

Husqvarna 532175702

Plate Reinforcement Stlt

$7.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532186689

Bracket Swaybar Chassis

$6.49

$

In Stock, Qty 10

0

144

Husqvarna 532175582

Bracket Ft Rest

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532162037

Bracket Parking Brake

$

$

Not available

159

Husqvarna 532185434

Cupholder YTGT Grey
(Superseded to 532191120)

$10.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 20+

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2 Ty-TT

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 817000612

Screw Hex Wsh Thdr. 3/8-16 x 3/4 BL

$4.99

$

In Stock, Qty 20+

0

212

Husqvarna 532188267

Insert, Grille

$10.99

$

Usually ships in 3-10 days

0

213

Husqvarna 532189979

Skirt Side LH
(Superseded to 532188266)

$7.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532189978

Skirt Side RH
(Superseded to 532188265)

$7.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532185436

Console Fuel Window STLT
(Superseded to 532179132)

$

$

Not available

258

Husqvarna 532189981

Lens Husq. Laser LT Clear RH
(Superseded to 532188263)

$18.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532189982

Lens Husq. Laser LT Clear LH
(Superseded to 532188264)

$18.99

$

In Stock, only 1 left!

0

276

Husqvarna 532189274

Bumper Hood RH

$7.99

$

Usually ships in 3-10 days

0

277

Husqvarna 532189275

Bumper Hood LH

$

$

Not available

278

Husqvarna 532189585

Screw Quadx Wshd #10-14 x 1
(Superseded to 532191611)

$

$

Not available

280

Husqvarna 817060616

Screw 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, Qty 6

0
