YTH 1542 XP (954568625-C) - Husqvarna 42" Yard Tractor (2003-01) ENGINE Parts Diagram

42" Yard Tractor

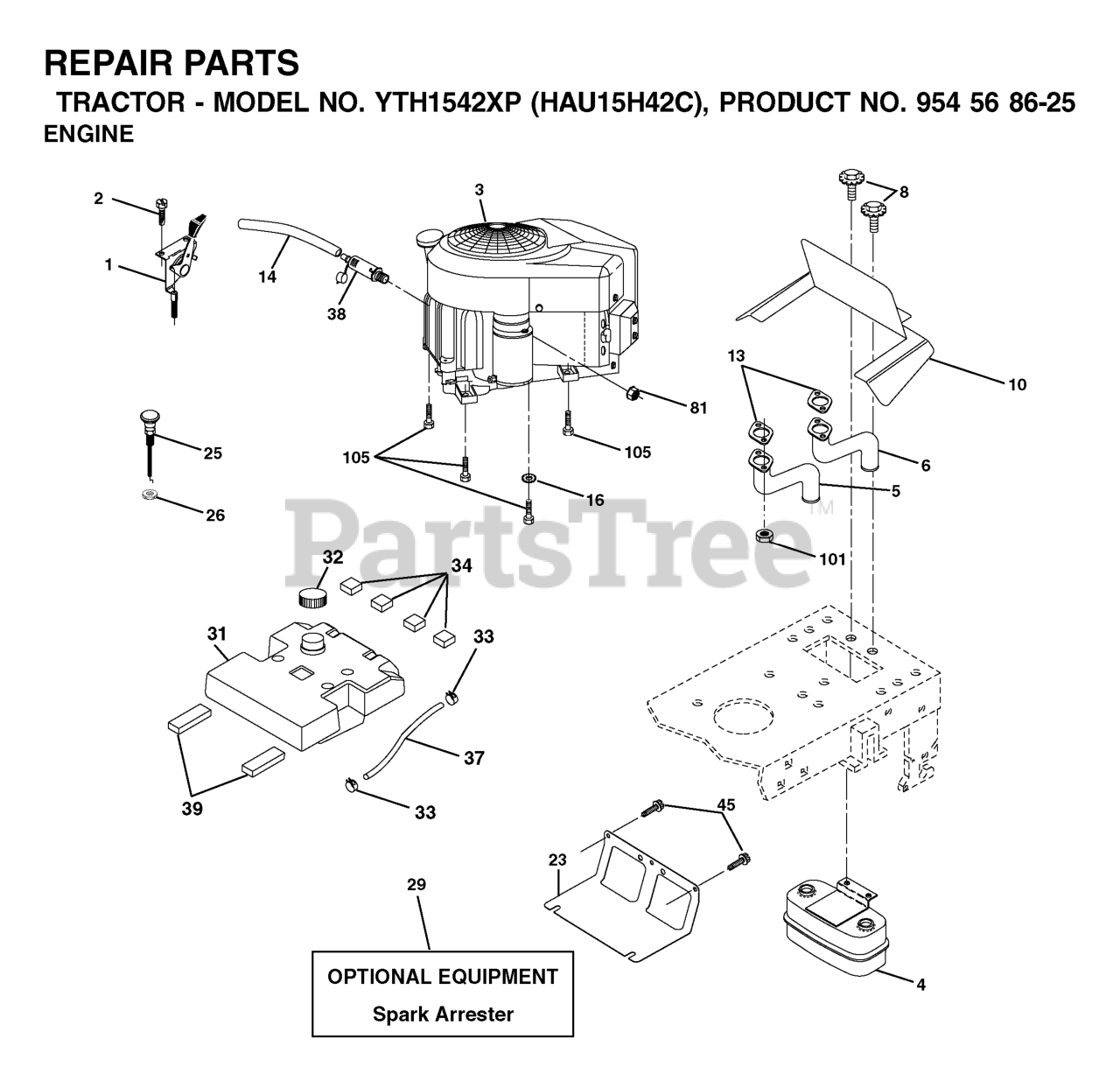

ENGINE Parts Diagram

  • Title

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, only 3 left!

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.99

$

In Stock, only 1 left!

0

25

Husqvarna 532132782

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

2

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, Qty 10

0

1

Husqvarna 532170803

CONTROL, THROTTLE

$33.99

$

In Stock, only 3 left!

0

5

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$39.99

$

In Stock, only 4 left!

0

81

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 18

0

6

Husqvarna 532176068

EXHAUST.TUBE.RH.KAWASAKI.

$131.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 4 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 7

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 6

0

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 13

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0
