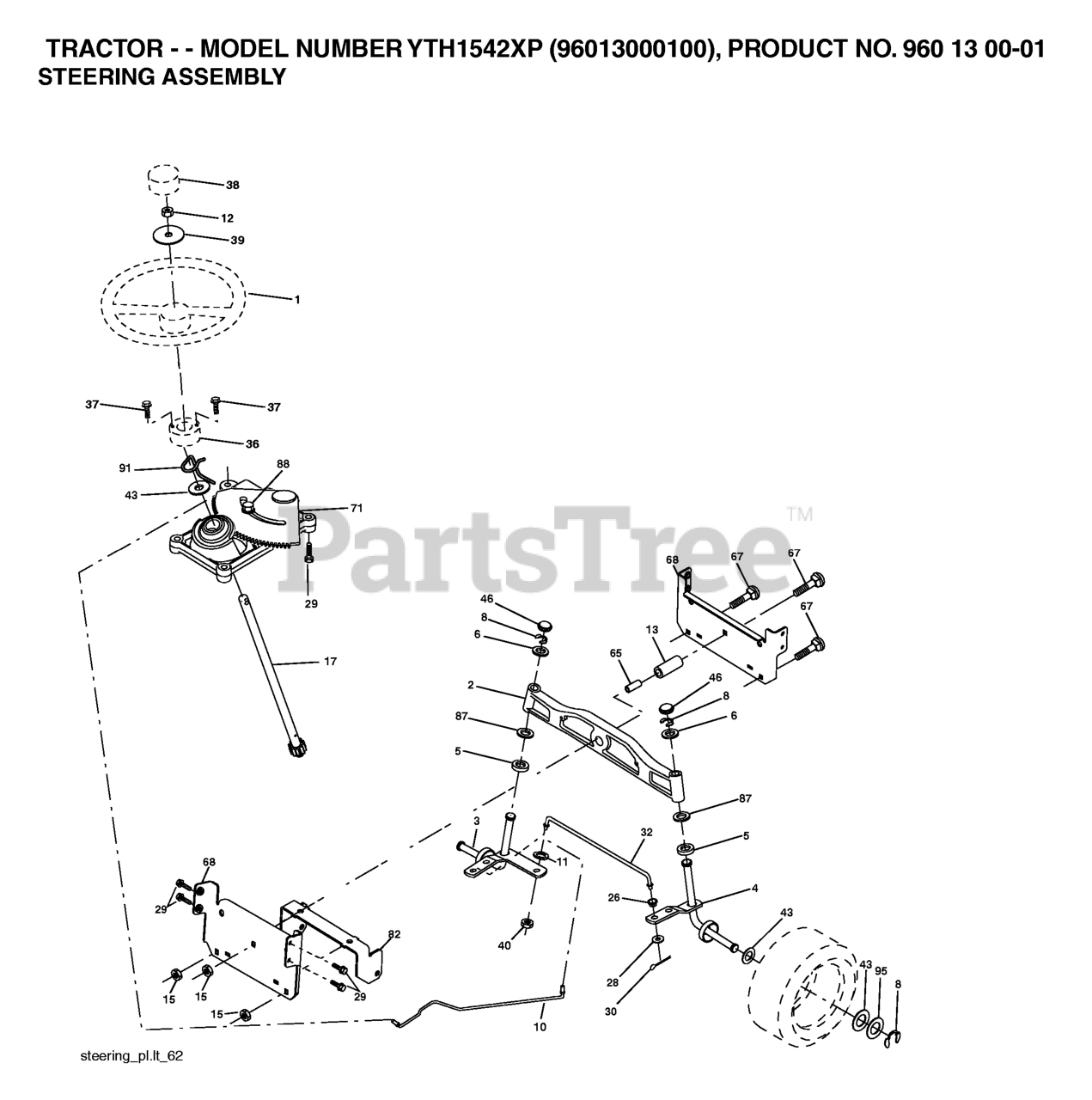

YTH 1542 XP (960130001-00) - Husqvarna 42" Yard Tractor (2005-05) STEERING Parts Diagram

42" Yard Tractor

STEERING Parts Diagram

  • Title

30

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

71

Husqvarna 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

44

Husqvarna 532180640

EXT, STEERING SHAFT
(Superseded to 532407600)

$

$

Not available

28

Husqvarna 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 4 left!

0

13

Husqvarna 532136518

TUBE, PIVOT AXLE

$9.99

$

In Stock, only 3 left!

0

68

Husqvarna 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

29

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532175121

DRAGLINK.15".TIRES.2001

$67.99

$

In Stock, Qty 20+

0

1

Husqvarna 532193651

STEERING WHEEL
(Superseded to 532186094)

$

$

Not available

3

Husqvarna 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

In Stock, only 4 left!

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532192757

ROD.TIE.WIRE.FORM

$34.99

$

In Stock, only 4 left!

0

43

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

87

Husqvarna 532173966

WASHER, FLAT .781 X 1 1/2"

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

39

Husqvarna 819183812

WASHER 9/16"ID, 2 3/8"OD

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 18

0

65

Husqvarna 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

$6.49

$

In Stock, Qty 11

0

88

Husqvarna 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

36

Husqvarna 532155105

BUSHING, STRG. BLK
(Superseded to 532155108)

$7.49

$

In Stock, Qty 8

0

17

Husqvarna 532177883

SHAFT ASM STRG

$120.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$17.99

$

In Stock, Qty 11

0

91

Husqvarna 532175553

CLIP.STEERING

$13.99

$

In Stock, only 2 left!

0

95

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$4.99

$

In Stock, Qty 14

0

40

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

67

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532184706

AXLE ASSY FRONT
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532193652

INSERT.CAP.STRG.WH.GRAY

$10.99

$

In Stock, Qty 6

0

6

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

82

Husqvarna 532169835

BRACKET
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0
