YTH 16 - Jonsered Yard Tractor (1995-01) ELECTRICAL Parts Diagram

Yard Tractor

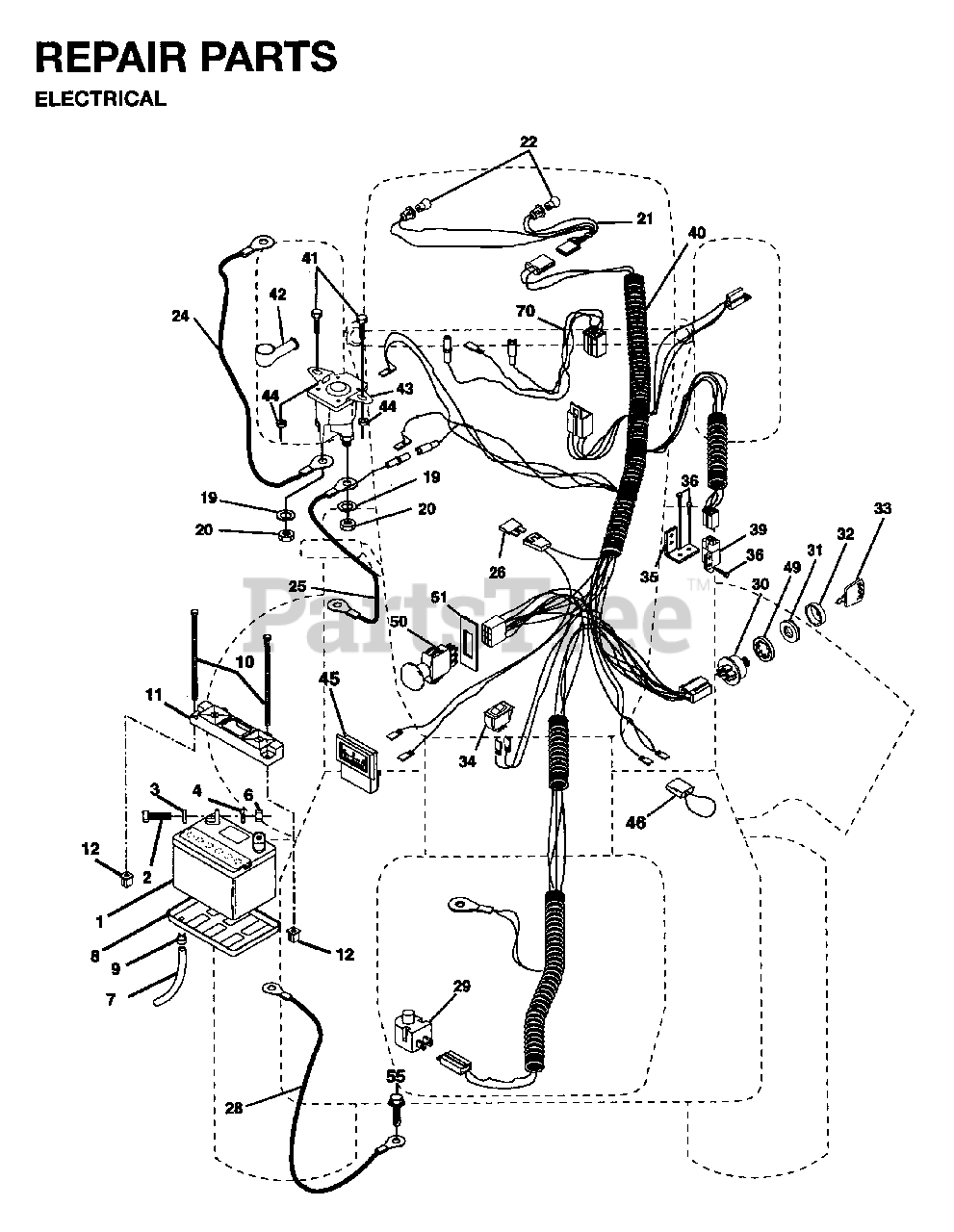

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532144926

BATTERY
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, Qty 5

0

3

Jonsered 734115301

WASHER

$

$

Not available

4

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

6

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Jonsered 532007697

PLASTIC TUBE

$

$

Not available

8

Jonsered 532007603

TRAY.BATTERY

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

11

Jonsered 532145209

HOLDDOWN, BATTERY, DASH MOUNT
(Superseded to 532150109)

$

$

Not available

12

Jonsered 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

19

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Jonsered 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532136850

HARNESS LIGHT SOCKET

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 17

0

24

Jonsered 532146136

No Description Available

$

$

Not available

25

Jonsered 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0

26

Jonsered 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

In Stock, only 1 left!

0

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

30

Jonsered 532144921

IGNITION SWITCH
(Superseded to 532145499)

$67.99

$

In Stock, only 1 left!

0

31

Jonsered 532140400

NUT, IGNITION
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 532141226

COVER SWITCH KEY

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

34

Jonsered 532110712

SWITCH LT

$8.99

$

In Stock, Qty 10

0

35

Jonsered 532108236

BRACKET LT

$2.99

$

Usually ships in 3-10 days

0

36

Jonsered 817021008

SCREW

$4.99

$

In Stock, Qty 20+

0

39

Jonsered 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

40

Jonsered 532145493

HARNESS IGN ELECT

$

$

Not available

41

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, Qty 5

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

44

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 532122822

AMMETER

$18.99

$

In Stock, only 1 left!

0

46

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

49

Jonsered 811151000

LOCKWASHER

$

$

Not available

50

Jonsered 532140404

SWITCH-PTO
(Superseded to 532154959)

$13.99

$

In Stock, Qty 20+

0

51

Jonsered 532140405

RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

55

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

70

Jonsered 532140424

No Description Available

$

$

Not available
