YTH 160 BR - Electrolux/AYP Lawn Tractor MOWER Parts Diagram

Lawn Tractor

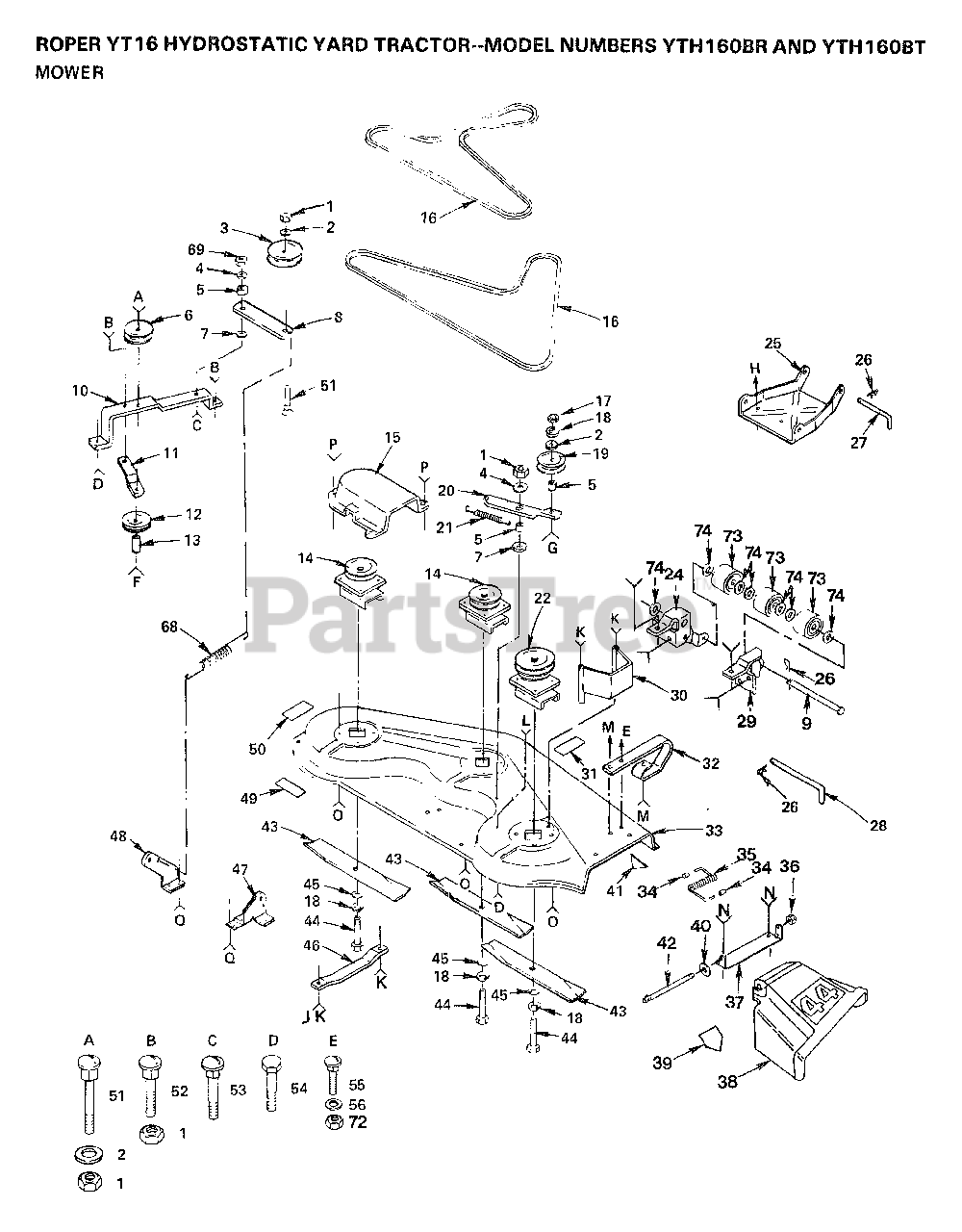

MOWER Parts Diagram

  • Title

1

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$

$

Not available

2

Murray 19131614

WASHER
(Superseded to 819131612)

$

$

Not available

3

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 106514X

SUB= 106902X

$

$

Not available

5

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 677A451

IDLER-INSIDE T
(Superseded to 532124858)

$

$

Not available

7

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 108127X

ARM IDLER HYT

$

$

Not available

9

Electrolux/AYP 109776X

PIVOT PIN T
(Superseded to 532109776)

$

$

Not available

10

Electrolux/AYP 106523X

"SUPPORT YT, BAR"
(Superseded to 532106523)

$

$

Not available

11

Electrolux/AYP 106522X

BRACE-IDLER YT
(Superseded to 532106522)

$

$

Not available

12

Electrolux/AYP 102948X

IDLER-FLAT YTV
(Superseded to 583642301)

$

$

Not available

13

Electrolux/AYP 106525X

SPACER YT

$

$

Not available

14

Electrolux/AYP 106037X

SUB= 136819

$

$

Not available

15

Electrolux/AYP 106214X

GUARD YT
(Superseded to 532106214)

$

$

Not available

16

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$51.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 102932X

IDLER.FLAT.GTV
(Superseded to 532102932)

$

$

Not available

20

Electrolux/AYP 106526X

ARM-IDLER YT
(Superseded to 532106526)

$

$

Not available

21

Electrolux/AYP 100123L

SPRING LT

$

$

Not available

24

Electrolux/AYP 109599X

BRACKET LH YTH
(Superseded to 532109599)

$

$

Not available

25

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

26

CHECK WITH SUPPLIER

$

$

Not available

27

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

28

Electrolux/AYP 109835X

HINGE PIN T
(Superseded to 532109835)

$

$

Not available

29

Electrolux/AYP 109600X

BRACKET RH YTH
(Superseded to 532109600)

$

$

Not available

30

Electrolux/AYP 108119X

GUARD BELT HYT
(Superseded to 532108119)

$

$

Not available

31

Electrolux/AYP 106679X

DECAL.WARNING.T

$

$

Not available

31

Electrolux/AYP 109819X

NLA

$

$

Not available

32

Electrolux/AYP 8418J

SUB= 136321
(Superseded to 532136321)

$

$

Not available

33

Electrolux/AYP 105690X

SUB= 144729

$

$

Not available

34

CHECK WITH SUPPLIER

$

$

Not available

35

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

36

Electrolux/AYP 5846R

SUB= 110452X

$

$

Not available

37

Electrolux/AYP 109743X

SUB= 137607
(Superseded to 532109743)

$

$

Not available

38

Electrolux/AYP 109785X

DEFLECTOR SHIELD
(Superseded to 532109785)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 78850

SUB= 85463

$

$

Not available

39

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.49

$

In Stock, Qty 20+

0

41

Electrolux/AYP 106975X

DECAL - SAFETY STANDARD

$

$

Not available

42

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$11.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 106635X

SUB= 25034
(Superseded to 532025034)

$

$

Not available

44

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$5.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$

$

Not available

46

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, only 2 left!

0

47

Electrolux/AYP 109278X

SUB= 123807X

$

$

Not available

48

Electrolux/AYP 108359X

SUB= 123808X

$

$

Not available

49

Electrolux/AYP 108592X

DECAL HYT
(Superseded to 532108592)

$

$

Not available

50

Electrolux/AYP 105185X

DECAL-INST YT
(Superseded to 532105185)

$

$

Not available

51

Electrolux/AYP 72140614

BOLT
(Superseded to 872140614)

$

$

Not available

52

Murray 72140608

SUB= 72110608

$

$

Not available

53

Electrolux/AYP 72140612

BOLT
(Superseded to 872140612)

$2.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

In Stock, only 2 left!

0

55

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

56

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

60

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$3.49

$

In Stock, Qty 13

0

68

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

69

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

71

Electrolux/AYP 72110505

BOLT
(Superseded to 872110505)

$2.49

$

In Stock, Qty 20+

0

72

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

73

Electrolux/AYP 109729X

ROLLER T
(Superseded to 532109729)

$

$

Not available

74

Electrolux/AYP 19151610

WASHER T
(Superseded to 819151610)

$

$

Not available

75

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available
