YTH 160 BT - Electrolux/AYP Lawn Tractor HARDWARE (MOWER) Parts Diagram

Lawn Tractor

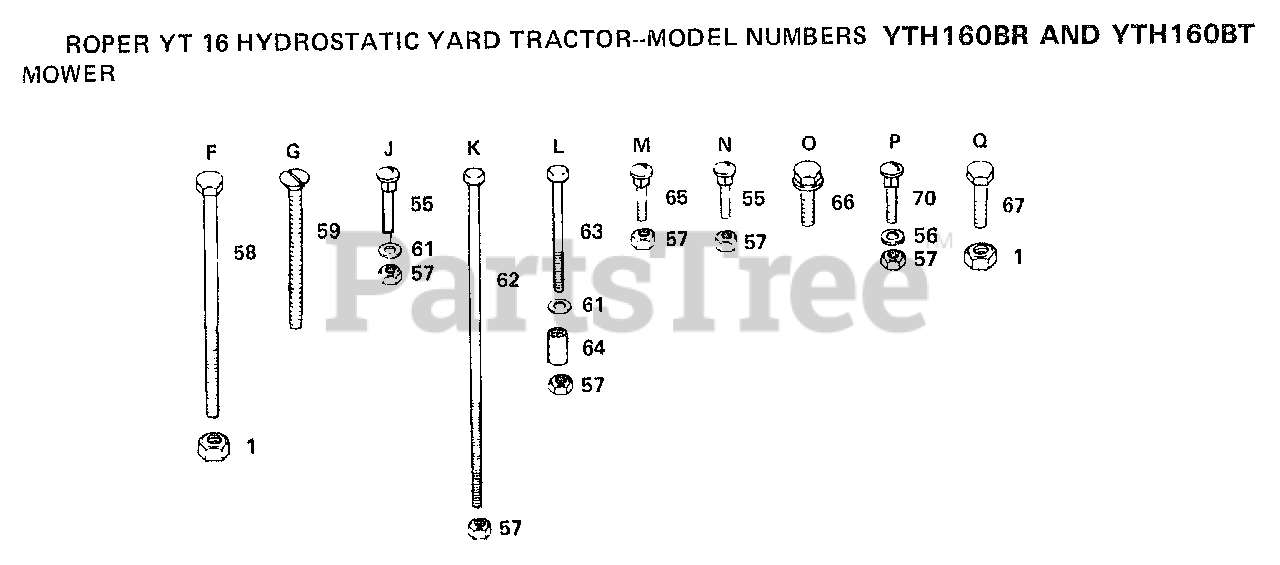

HARDWARE (MOWER) Parts Diagram

  • Title

1

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

57

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 74760648

BOLT - HEX 3/8 - 16 X 3
(Superseded to 583614301)

$

$

Not available

59

Electrolux/AYP 74110632

SCREW YT
(Superseded to 874110632)

$

$

Not available

61

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 74760580

BOLT
(Superseded to 874760580)

$2.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 9173R

SPLIT SPACER RT
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

67

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

70

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0
