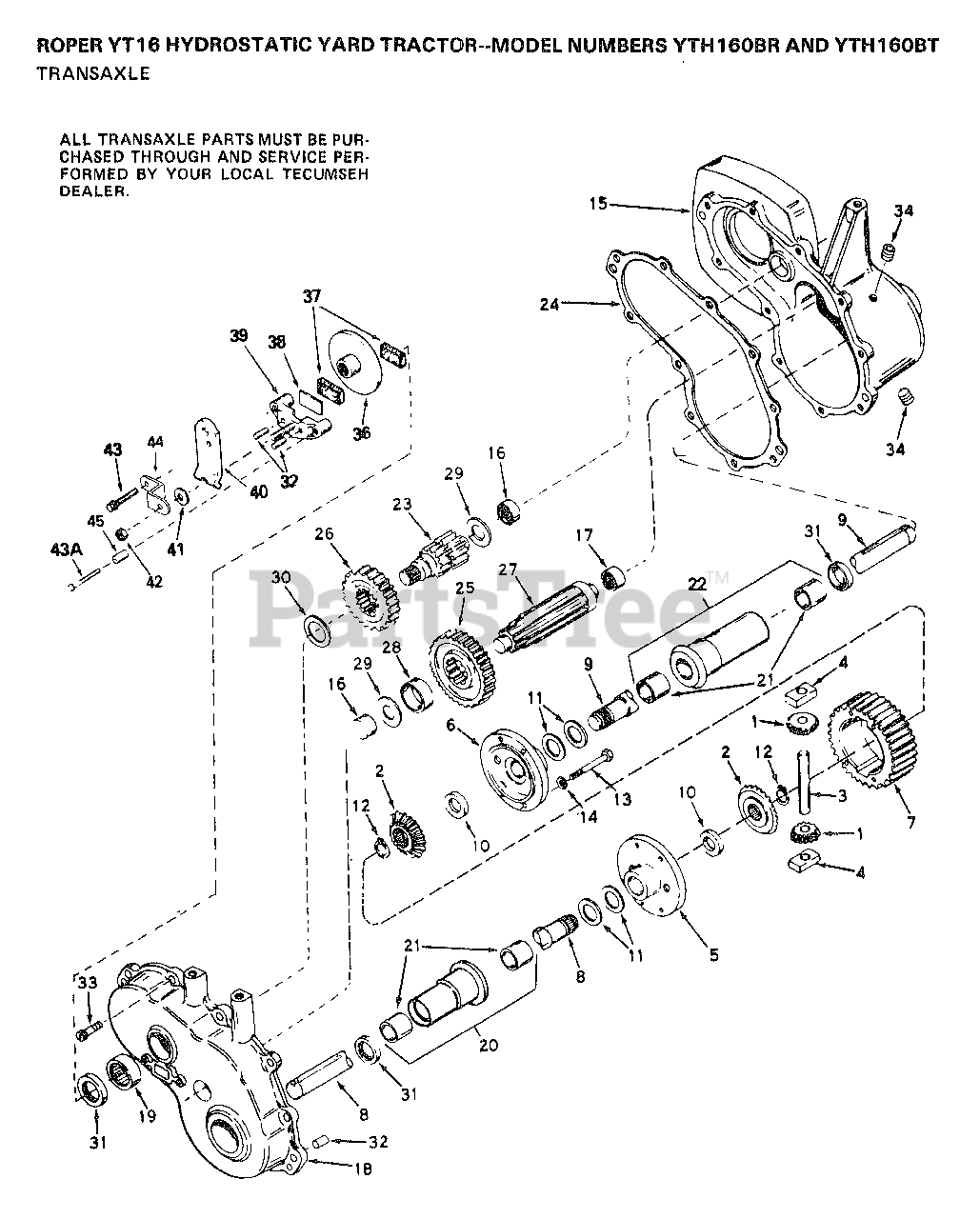

YTH 160 BT - Electrolux/AYP Lawn Tractor TRANSAXLE Parts Diagram

Lawn Tractor

TRANSAXLE Parts Diagram

  • Title

REFER TO IMAGE

$

$

Not available

1

Electrolux/AYP 778197

PINION, 10T

$

$

Not available

2

Electrolux/AYP 778198

GEAR BEVEL

$

$

Not available

3

Electrolux/AYP 786019

PIN DRIVE

$

$

Not available

4

Electrolux/AYP 786027

BLOCK DRIVE

$

$

Not available

5

Electrolux/AYP 774028A

CARRIER, DIFFERENTIAL

$

$

Not available

6

Electrolux/AYP 774029A

CARRIER, DIFFERENTIAL

$

$

Not available

7

Electrolux/AYP 778033A

GEAR, RING

$

$

Not available

8

Electrolux/AYP 774526

AXLE

$

$

Not available

9

Electrolux/AYP 774527

AXLE

$

$

Not available

10

Electrolux/AYP 780107

WASHER

$

$

Not available

11

Electrolux/AYP 780042

WASHER THRUST

$

$

Not available

12

Electrolux/AYP 792018

RING STRAP

$

$

Not available

13

Electrolux/AYP 792020

SCREW, 1/4-20 X 2-1/4

$

$

Not available

14

Electrolux/AYP 792006

WASHER LOCK 1/4

$

$

Not available

15

Electrolux/AYP 770052

CASE ASSY

$

$

Not available

16

Electrolux/AYP 780013

BEARING, NEEDLE

$

$

Not available

17

Electrolux/AYP 780088

BEARING, NEEDLE

$

$

Not available

18

Electrolux/AYP 772085

COVER ASSY

$

$

Not available

19

Electrolux/AYP 780089

BEARING, NEEDLE

$

$

Not available

20

Electrolux/AYP 782041A

HOUSING & BUSHING ASSY

$

$

Not available

21

Electrolux/AYP 780054

BUSHING

$

$

Not available

22

Electrolux/AYP 782042A

HOUSING & BUSHING ASSY

$

$

Not available

23

Electrolux/AYP 776207

SHAFT, BRAKE

$

$

Not available

24

Electrolux/AYP 788044

GASKET

$

$

Not available

25

Electrolux/AYP 778036

GEAR, OUTPUT

$

$

Not available

26

Electrolux/AYP 778083

GEAR, IDLER

$

$

Not available

27

Electrolux/AYP 778041

SHAFT, OUTPUT

$

$

Not available

28

Electrolux/AYP 786017

SPACER

$

$

Not available

29

Electrolux/AYP 780001

WASHER

$

$

Not available

30

Electrolux/AYP 780090

WASHER, THRUST

$

$

Not available

31

Electrolux/AYP 788008

SEAL, OIL

$

$

Not available

32

Electrolux/AYP 786026

PIN DOWEL

$

$

Not available

33

Electrolux/AYP 792046

SCREW

$

$

Not available

34

Electrolux/AYP 792122

PLUG

$

$

Not available

36

Electrolux/AYP 790027

DISK, BRAKE

$

$

Not available

37

Electrolux/AYP 790006

PAD BRAKE

$

$

Not available

38

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

39

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

40

Electrolux/AYP 790017

LEVER, BRAKE

$

$

Not available

41

Electrolux/AYP 792076

WASHER, FLAT

$

$

Not available

42

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

43

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

43A

Electrolux/AYP 792085

SCREW FLNG HEX 1/4-20 X 2-1/4

$

$

Not available

44

Electrolux/AYP 786086

BRKT BRAKE LEVER

$

$

Not available

45

Electrolux/AYP 786066

SPACER

$

$

Not available
