YTH 160 - Husqvarna Yard Tractor (1996-01) CHASSIS & ENCLOSURES Parts Diagram

Yard Tractor

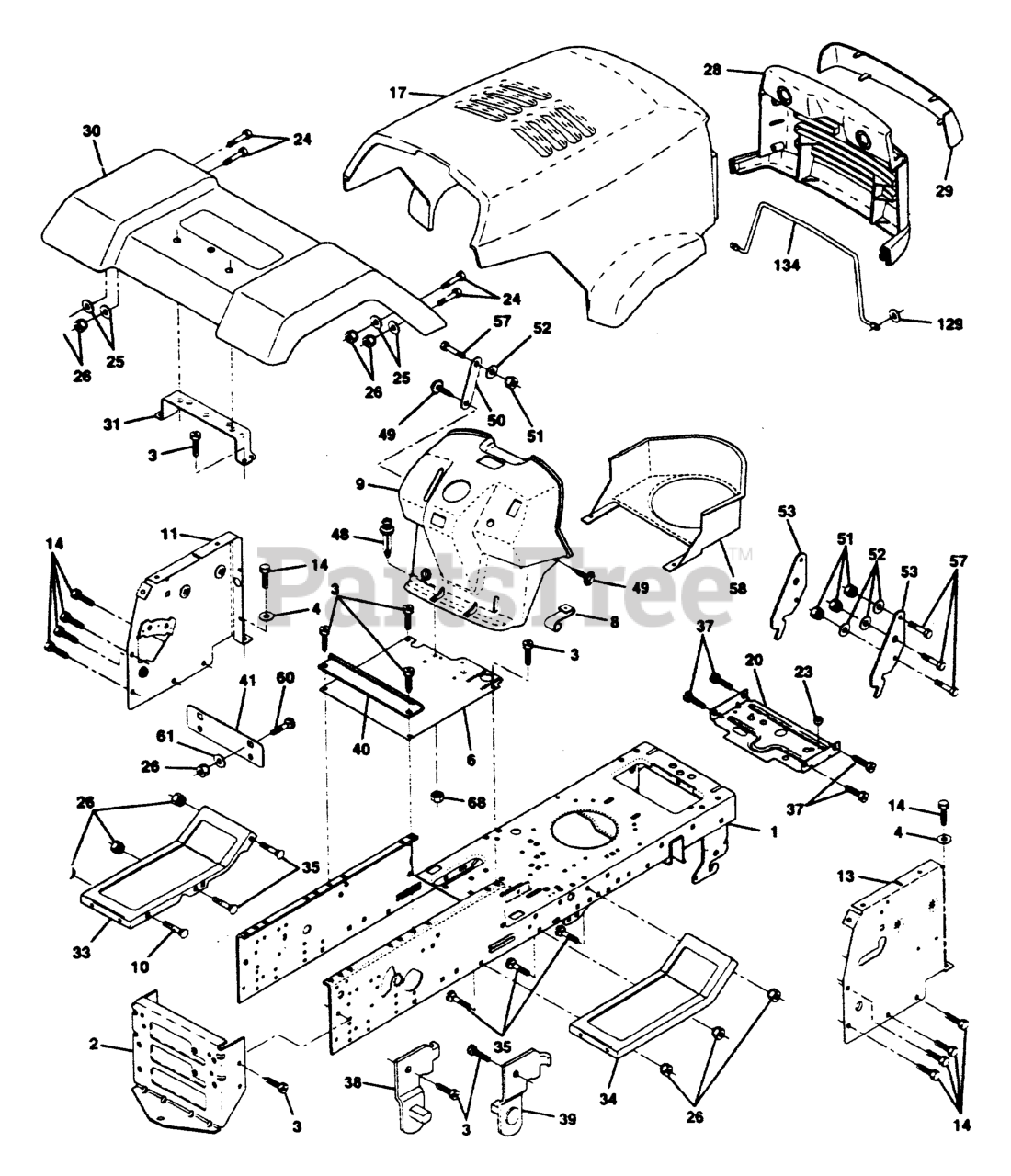

CHASSIS & ENCLOSURES Parts Diagram

  • Title

13

Husqvarna 532146962

PANEL DASH RH
(Superseded to 532172108)

$

$

Not available

50

Husqvarna 532142779

BRACE

$

$

Not available

49

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532139977

SPACER

$

$

Not available

1

Husqvarna 532145501

CHASSIS WELD 11GA.95

$

$

Not available

9

Husqvarna 532147218

PANEL

$160.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 9

0

41

Husqvarna 532139978

PLATE
(Superseded to 532153764)

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532145206

SADDLE LT FENDER

$

$

Not available

17

Husqvarna 532149775

HOOD LT/PL HUSQVARNA
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

38

Husqvarna 532139886

BRACKET LH PIVOT

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532145210

PLATE MTG BATTERY FUEL TAND
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

61

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

53

Husqvarna 532150067

BRACKET PNT PICK OFF LT/PL

$

$

Not available

30

Husqvarna 532143050

FENDER
(Superseded to 532166886)

$

$

Not available

129

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

BRACKET RH PIVOT

$8.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532138096

RIVET PUSH

$

$

Not available

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$10.99

$

Usually ships in 3-10 days

0

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532149777

LENS LT/PL HUSQVARNA

$

$

Not available

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532147203

FOOT REST LH

$

$

Not available

4

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532146956

PANEL PNT DASH LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532150132

ROD SUPPORT HOOD LT/PL HUSQ

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

28

Husqvarna 532149776

GRILLE LT/PL HUSQVARNA
(Superseded to 532156880)

$

$

Not available

68

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532005479

PLUG BUTTON T

$4.99

$

Usually ships in 3-10 days

0
