YTH 160 - Husqvarna Yard Tractor (1996-01) MOWER LIFT / DECK LIFT Parts Diagram

Yard Tractor

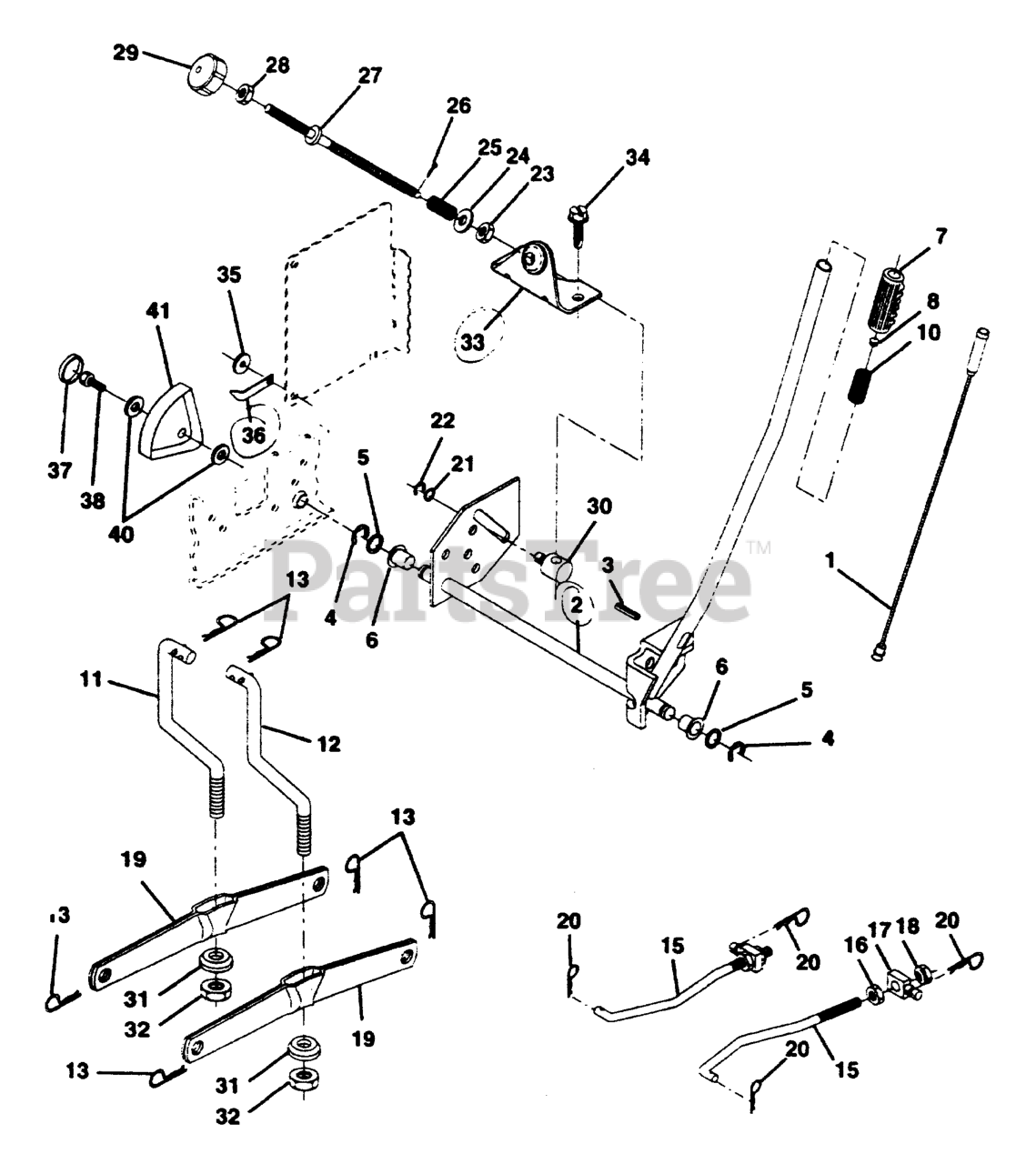

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 532127218

FRONT LINK

$17.99

$

In Stock, Qty 5

0

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

41

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

35

Husqvarna 532120529

WASHER T

$2.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$12.99

$

In Stock, Qty 9

0

38

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532138346

POINTER HGT
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532140168

BRACKET

$

$

Not available

26

Husqvarna 876020308

COTTER PIN
(Superseded to 532003145)

$

$

Not available

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

5

Husqvarna 819211621

WASHER

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 819131016

WASHER

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 532110807

NUT T

$

$

Not available

22

Husqvarna 812000037

Ring, Klip #T5304-37

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

2

Husqvarna 532145117

SHAFT ARM LIFT RH

$

$

Not available

30

Husqvarna 532110810

TRUNION LT

$21.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

40

Husqvarna 819112410

WASHER

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532125631

GRIP HANDLE

$6.99

$

In Stock, only 1 left!

0

25

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532126971

ROD ADJ LIFT

$

$

Not available

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, Qty 5

0

10

Husqvarna 532122512

SPRING, COMP T

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Gauge

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

34

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, only 3 left!

0

1

Husqvarna 532136973

WIRE.INNER.HANDLE.LIFT.LEVER

$

$

Not available
