YTH 18 (954003471) - Jonsered Yard Tractor (1996-01) SEAT Parts Diagram

Yard Tractor

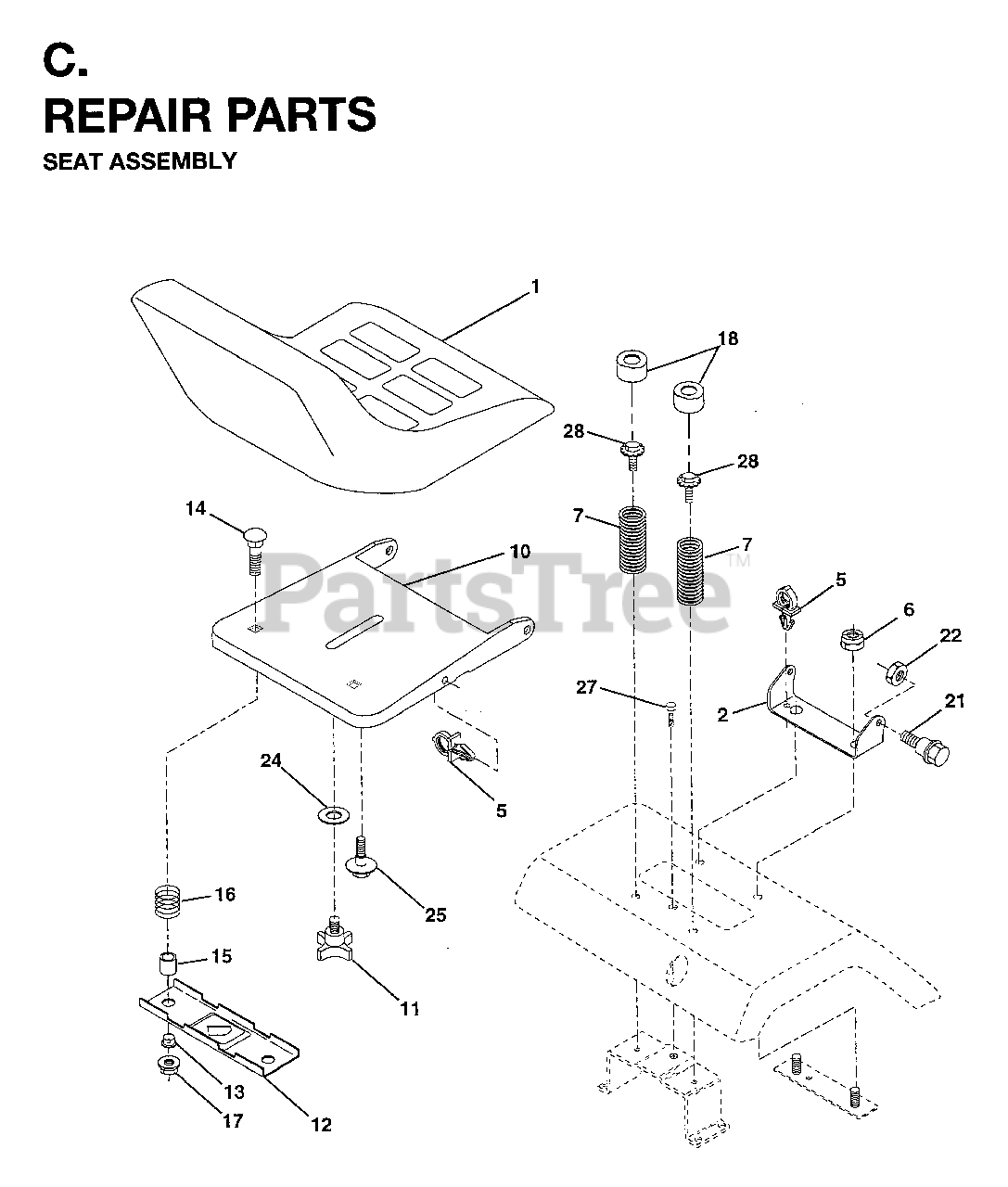

SEAT Parts Diagram

  • Title

1

Jonsered 532127440

SEAT
(Superseded to 532401043)

$

$

Not available

2

Jonsered 532140551

SEAT PIVOT BRKT
(Superseded to 531152401)

$11.99

$

In Stock, only 2 left!

0

5

Jonsered 532145006

PUSH CLIP

$3.49

$

In Stock, Qty 11

0

6

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

7

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 6

0

10

Jonsered 532140552

SEAT PAN
(Superseded to 532195530)

$

$

Not available

11

Jonsered 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$7.99

$

In Stock, only 2 left!

0

12

Jonsered 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

13

Jonsered 532121248

BUSHING

$

$

Not available

14

Jonsered 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

15

Jonsered 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

16

Jonsered 532123740

SPRING COMPRESSED

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 532124238

CAP SPRING

$

$

Not available

21

Jonsered 532139888

BOLT

$4.99

$

In Stock, Qty 6

0

22

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

24

Jonsered 819171912

WASHER

$4.99

$

In Stock, Qty 11

0

25

Jonsered 532127018

BOLT,SHOULD

$5.99

$

In Stock, only 2 left!

0

27

Jonsered 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

28

Jonsered 874780512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0
