YTH 180 (954001022) - Husqvarna Yard Tractor (1994-03) 42INCH CUTTING DECK Parts Diagram

Yard Tractor

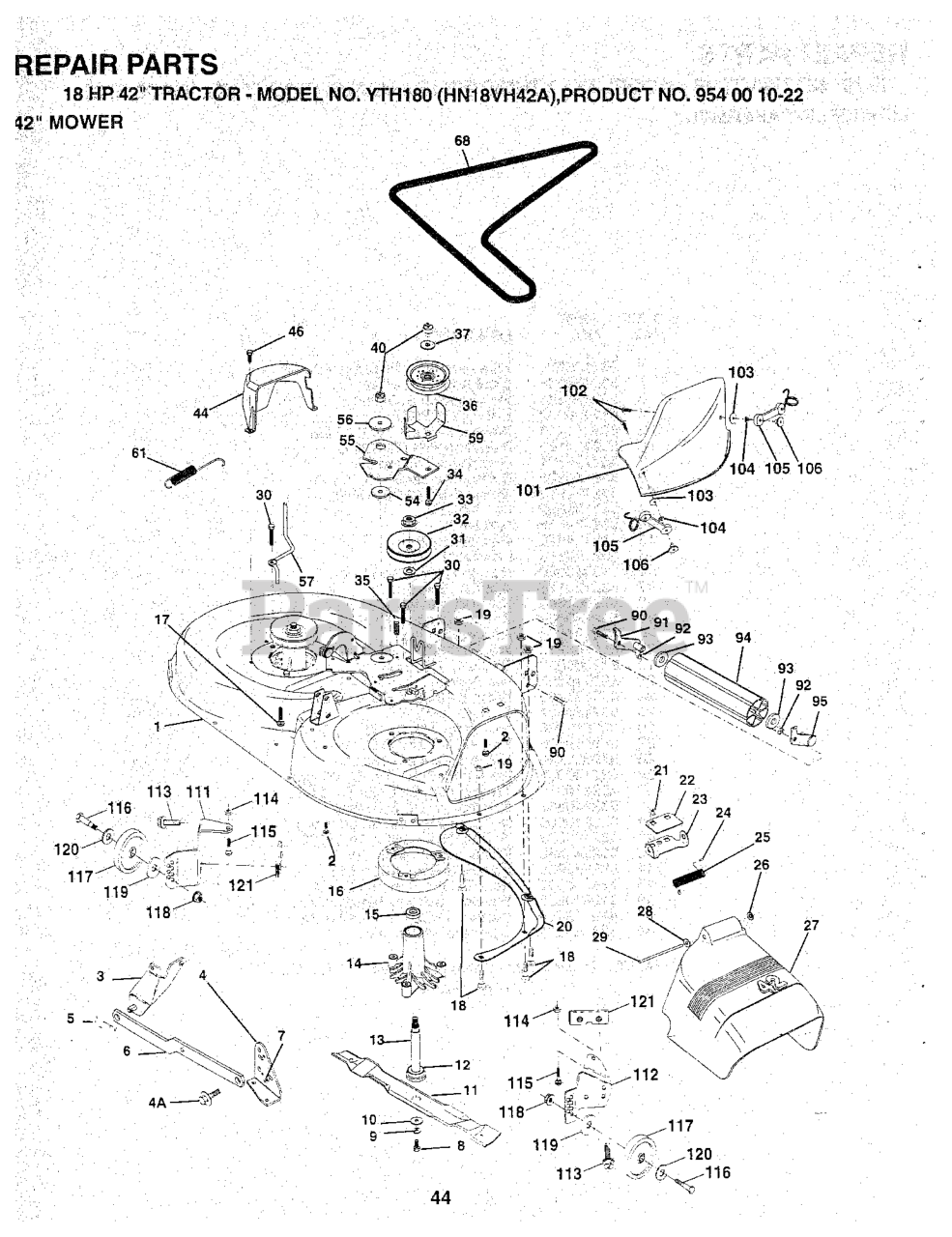

42INCH CUTTING DECK Parts Diagram

  • Title

90

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 13

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, only 4 left!

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

7

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

57

Husqvarna 532140090

KEEPER

$

$

Not available

94

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

Note: LEFT

$9.49

$

In Stock, only 2 left!

0

1

Husqvarna 532140081

DECK ASM MWR 42"
(Superseded to 532176031)

$395.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532134149

BLADE.42".MULCH

$

$

Not available

16

Husqvarna 532136929

STRIPPER
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

4

Husqvarna 532138440

BRKT DECK SW BAR

$

$

Not available

15

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

44

NEEDS DESCRIPTION

Note: LEFT

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 13

0

111

Husqvarna 532140353

BRACKET
(Superseded to 532181040)

Note: LEFT

$

$

Not available

121

Husqvarna 143723

NEEDS DESCRIPTION
(Superseded to 532143723)

$

$

Not available

101

Husqvarna 532136420

COVER MULCH 42"

$34.99

$

In Stock, Qty 8

0

32

Husqvarna 532129861

MANDREL PULLEY
(Superseded to 532173436)

$21.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 531154101)

Note: RIGHT

$14.99

$

In Stock, only 4 left!

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

17

Husqvarna 872110610

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 10

0

114

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

121

Husqvarna 532140476

DECK SERV MB42
(Superseded to 532176207)

Note: "STANDARD DECK, ORDER NOSE ROLLER, GAUGE WHEEL AND MULCHER PLATE COMPONENTS SEPARATELY"

$

$

Not available

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$41.99

$

In Stock, Qty 20+

0

121

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$71.99

$

In Stock, Qty 20+

0

117

Husqvarna 532105455

WHEEL.GAUGE.BLK.4.93

$20.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.99

$

In Stock, only 2 left!

0

27

Husqvarna 532130968

SHIELD.DEFLECTOR.MOWER.42".BLK

$43.99

$

In Stock, Qty 20+

0

92

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 529845901)

$5.99

$

In Stock, Qty 11

0

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

4A

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

30

Husqvarna 532138776

SCREW
(Superseded to 532173984)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$33.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

120

Husqvarna 819171512

Washer 17/32 x 15/16 x 12 Gauge

$

$

Not available

105

Husqvarna 532130758

LATCH ASSEMBLY
(Superseded to 597000601)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$

$

Not available

106

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$8.49

$

In Stock, Qty 10

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 12

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

Note: MANDREL

$14.99

$

In Stock, Qty 20+

0

20

Husqvarna 532136888

BAFFLE
(Superseded to 531167001)

$17.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532140067

RP.V-BELT
(Superseded to 581982501)

$41.99

$

In Stock, only 2 left!

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

55

Husqvarna 532140084

IDLER ARM
(Superseded to 532151785)

$45.99

$

In Stock, only 2 left!

0

61

Husqvarna 532131950

SPRING EXTENSION

$9.99

$

In Stock, Qty 6

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

112

Husqvarna 532132262

BRACKET
(Superseded to 532181040)

Note: RIGHT

$

$

Not available

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$7.49

$

In Stock, Qty 17

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$21.99

$

In Stock, Qty 13

0

104

Husqvarna 819061216

WASHER

$3.99

$

In Stock, Qty 20+

0

102

Husqvarna 871161010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

Note: MACHD

$53.99

$

In Stock, only 2 left!

0

113

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 531149301)

$14.99

$

In Stock, only 2 left!

0

116

Husqvarna 532124892

FENDER
(Superseded to 532121663)

$

$

Not available

115

Husqvarna 872110504

BOLT.CARR.5/16-18X1/2
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

103

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

Usually ships in 3-10 days

0
