YTH 180 (954001022) - Husqvarna Yard Tractor (1994-03) CHASSIS & ENCLOSURES Parts Diagram

Yard Tractor

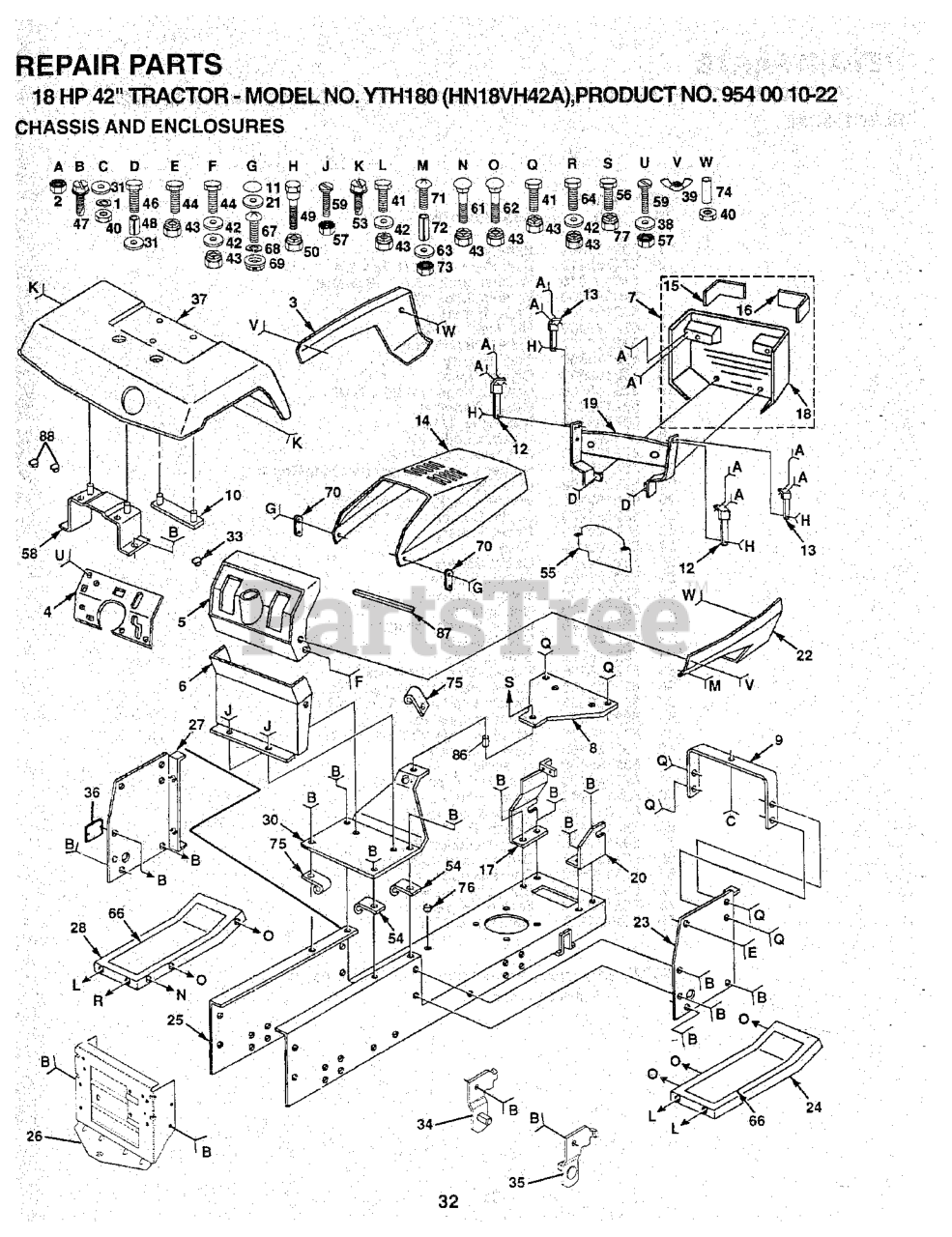

CHASSIS & ENCLOSURES Parts Diagram

  • Title

56

Husqvarna 874760532

Bolt Fin Hex 5/16 - 18 Unc x 2 Gr. 2

$2.99

$

Usually ships in 3-10 days

0

38

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532124574

SUPPORT ASS'Y

$

$

Not available

26

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

86

Husqvarna 532121236

SPACER

$

$

Not available

66

Husqvarna 532108256

PAD FOOTREST T

$

$

Not available

16

Husqvarna 532124251

LENS RH
(Superseded to 532157069)

Note: RIGHT

$

$

Not available

73

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

68

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532140452

DASH

$

$

Not available

72

Husqvarna 532007206

SPACER LT

$7.49

$

In Stock, Qty 15

0

6

Husqvarna 532104805

DASH LOWER YT NLA

$

$

Not available

49

Husqvarna 532123481

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

77

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532110356

SNAP CAP LT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 532110853

SUPPORT RH YTH

Note: LEFT

$

$

Not available

7

Husqvarna 532127320

GRILL COMPLETE
(Superseded to 532157236)

$

$

Not available

33

Husqvarna 532125085

PLUG-DASH T

$

$

Not available

46

Husqvarna 874760440

BOLT

$2.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532136970

PANEL DASH RH

Note: RIGHT

$

$

Not available

12

Husqvarna 532106784

STRAP ASSY LT

Note: REAR

$

$

Not available

76

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

21

Husqvarna 532110357

WASHER LT

$

$

Not available

9

Husqvarna 532124130

SUPPORT ASS'Y

$

$

Not available

10

Husqvarna 532140675

STRAP

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532124250

LENS LH
(Superseded to 532157068)

Note: LEFT

$

$

Not available

70

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532127543

SADDLE

$

$

Not available

20

Husqvarna 532110852

SUPPORT LH YTH

Note: RIGHT

$

$

Not available

75

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

22

Husqvarna 532143365

SIDE PANEL ASSY RH
(Superseded to 532140677)

Note: RIGHT

$

$

Not available

43

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532126493

BAFFLE,REAR UPPER

$

$

Not available

3

Husqvarna 532143364

SIDE PANEL ASSY LH
(Superseded to 532140676)

Note: LEFT

$

$

Not available

8

Husqvarna 532140181

PLATE, BATTERY

$

$

Not available

61

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

69

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532121235

SPACER

$

$

Not available

63

Husqvarna 819070818

WASHER

$9.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532001260

SPACER NLA

$

$

Not available

39

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

87

Husqvarna 532105037

FOAM-STRIP LT

$

$

Not available

27

Husqvarna 532136967

PANEL DASH LH

Note: LEFT

$

$

Not available

13

Husqvarna 532104618

STRAP ASSY LT

Note: FRONT

$

$

Not available

35

Husqvarna 532139887

BRACKET RH PIVOT

Note: RIGHT

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532141626

DASH PLATE
(Superseded to 532140130)

$

$

Not available

28

Husqvarna 532124899

ROLL PIN NLA

Note: LEFT

$

$

Not available

37

Husqvarna 532141449

FENDER
(Superseded to 532167270)

$

$

Not available

31

Husqvarna 819091216

WASHER PM

$

$

Not available

34

Husqvarna 532139886

BRACKET LH PIVOT

Note: LEFT

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532125007

HOOD
(Superseded to 532125454)

$

$

Not available

57

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532140341

CHASSIS
(Superseded to 532145501)

$

$

Not available

59

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124914

PAD,SPACER
(Superseded to 532145243)

Note: RIGHT

$

$

Not available

58

Husqvarna 532137113

FENDER BRKT
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532127325

GRILL
(Superseded to 532157236)

$

$

Not available

71

Husqvarna 874981020

RP SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

88

Husqvarna 532105531

NUT-PUSH YT

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532121794

COVER ACCESS

$

$

Not available

41

Husqvarna 874760612

BOLT

$4.99

$

In Stock, Qty 17

0

54

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0
