YTH 180 (954001022) - Husqvarna Yard Tractor (1994-03) DRIVE Parts Diagram

Yard Tractor

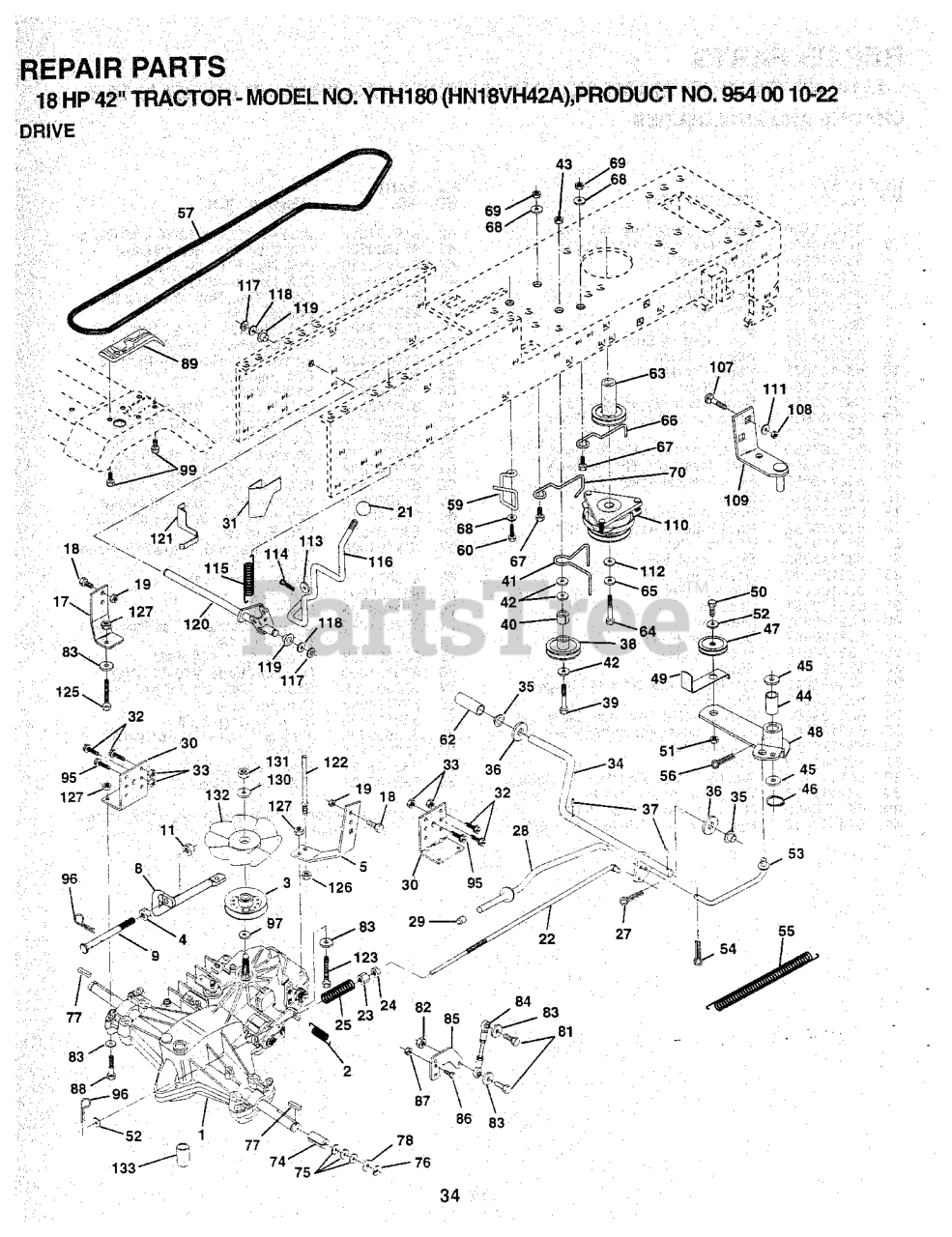

DRIVE Parts Diagram

  • Title

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

111

Husqvarna 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

109

Husqvarna 532137141

BRACKET ASM MTG

$

$

Not available

87

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532110812

WASHER LT

$

$

Not available

28

Husqvarna 532133261

BRAKE PARK ROD

$

$

Not available

83

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

95

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

75

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

89

Husqvarna 532139989

CONSOLE
(Superseded to 532153762)

$

$

Not available

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

56

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

120

Husqvarna 532140154

SHAFT ASSY
(Superseded to 532156046)

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

22

Husqvarna 532140217

ROD BRAKE
(Superseded to 532145627)

$157.99

$

In Stock, only 1 left!

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

17

Husqvarna 532140158

STRAP LH TORQUE

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

119

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

52

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 5

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

131

Husqvarna 532050831

NYLON NUT

$2.99

$

Usually ships in 3-10 days

0

81

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532109070

BELT KEEPER LT NLA

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532121218

KEEPER BELT ENGLH

$

$

Not available

107

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

115

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

1

Husqvarna 532140295

TRANSAXLE ASSY
(Superseded to 532150071)

$

$

Not available

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

108

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

123

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$4.99

$

Usually ships in 3-10 days

0

97

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

126

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

113

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

69

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532140469

KEEPER BELT RH

$

$

Not available

84

Husqvarna 532140548

ROD.TIE.BALL.4.75

$31.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532140157

STRAP RH TORQUE

$

$

Not available

21

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

60

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

66

Husqvarna 532105730

KEEPER,BLT ENG LT

$4.99

$

Usually ships in 3-10 days

0

125

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

82

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

117

Husqvarna 812000008

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

118

Husqvarna 819212016

WASHER D

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 812000039

KLIP RING

$6.49

$

In Stock, Qty 12

0

78

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

24

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532140357

BYPASS CONTROL
(Superseded to 532144832)

$

$

Not available

121

Husqvarna 532140470

KEEPER BELT LH

$6.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

63

Husqvarna 532140189

PULLEY CLU ELEC

$42.99

$

Usually ships in 3-10 days

0

23

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 532141002

SHIFT ROD

$

$

Not available

64

Husqvarna 871170768

BOLT
(Superseded to 532150280)

$4.99

$

In Stock, Qty 11

0

99

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

110

Husqvarna 532137140

CLUTCH.ELECT.CVX.105 FT/LB.
(Superseded to 532142600)

$

$

Not available

34

Husqvarna 532122424

SHAFT FOOT PEDAL

$

$

Not available

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

43

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532140156

CONTROL ARM

$

$

Not available

114

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

133

Husqvarna 532142564

LINE FUEL HYD 4"

$6.49

$

Usually ships in 3-10 days

0

130

Husqvarna 532141322

WASHER

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140550

ROD BYPASS
(Superseded to 532144832)

$

$

Not available

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

44

Husqvarna 532105706

BEARING LT (2 2)

$7.49

$

In Stock, only 1 left!

0

33

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$

$

Not available

132

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

In Stock, only 3 left!

0

4

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532123789

ARM IDLER

$

$

Not available

3

Husqvarna 532140293

PULLEY TRANSAXLE
(Superseded to 532143995)

$34.99

$

In Stock, only 2 left!

0

88

Husqvarna 874780544

BOLT HEX

$

$

Not available

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532142431

SPRING BRAKE

$8.99

$

In Stock, only 1 left!

0

127

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

86

Husqvarna 871070516

SCREW

$4.99

$

Usually ships in 3-10 days

0
