YTH 180 (954001082-A) - Husqvarna Yard Tractor (1994-07) Drive Parts Diagram

Yard Tractor

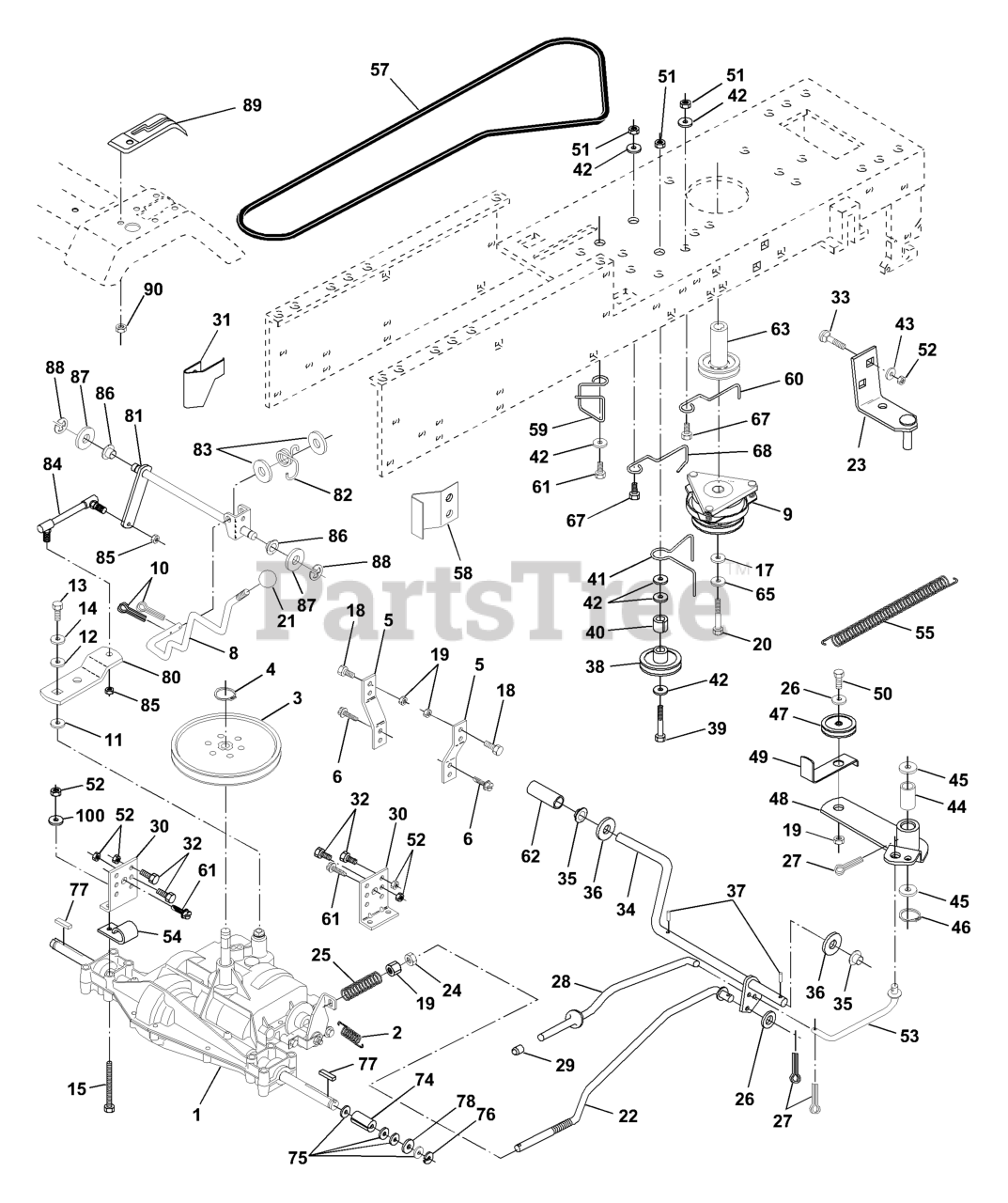

Drive Parts Diagram

  • Title

1

Husqvarna 532142607

TRANSAXLE
(Superseded to 532170269)

$

$

Not available

2

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$7.99

$

In Stock, only 2 left!

0

3

Husqvarna 532123666

PULLEY TRANS

$51.99

$

In Stock, Qty 5

0

4

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, only 2 left!

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532141002

SHIFT ROD

$

$

Not available

9

Husqvarna 532137140

CLUTCH.ELECT.CVX.105 FT/LB.
(Superseded to 532142600)

$

$

Not available

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

WASH-SHFT PLT LT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 819151216

Washer 15/32 X 3/4 X 16 Ga

$

$

Not available

13

Husqvarna 871040412

BOLT LT
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

17

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

18

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532130804

ROD BRAKE

$28.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137141

BRACKET ASM MTG

$

$

Not available

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, only 2 left!

0

28

Husqvarna 532133261

BRAKE PARK ROD

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$

$

Not available

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 532122424

SHAFT FOOT PEDAL

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, Qty 15

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 874760644

BOLT

$

$

Not available

40

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532109070

BELT KEEPER LT NLA

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 819111012

WASHER T
(Superseded to 596039901)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532105706

BEARING LT (2 2)

$6.99

$

In Stock, Qty 14

0

45

Husqvarna 532110812

WASHER LT

$

$

Not available

46

Husqvarna 812000039

KLIP RING

$

$

Not available

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Husqvarna 532123789

ARM IDLER

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

51

Husqvarna 873680600

LOCKNUT

$

$

Not available

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

55

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

57

Husqvarna 532130801

V-BELT
(Superseded to 532138255)

$43.99

$

In Stock, Qty 20+

0

58

Husqvarna 532127274

KEEPER

$

$

Not available

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$

$

Not available

63

Husqvarna 532140189

PULLEY CLU ELEC

$

$

Not available

64

Husqvarna 871170768

BOLT
(Superseded to 532150280)

$3.49

$

In Stock, only 4 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

66

Husqvarna 532121218

KEEPER BELT ENGLH

$

$

Not available

67

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

70

Husqvarna 532105730

KEEPER,BLT ENG LT

$

$

Not available

74

Husqvarna 532109502

SPACER LT

$

$

Not available

75

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

80

Husqvarna 532131487

SHIFT ARM

$

$

Not available

81

Husqvarna 532136933

SHAFT ASMBLY
(Superseded to 532161077)

$

$

Not available

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532132183

TIE ROD

$

$

Not available

85

Husqvarna 873530400

NUT 1/4-28
(Superseded to 532150360)

$

$

Not available

86

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$

$

Not available

87

Husqvarna 819212016

WASHER D

$

$

Not available

88

Husqvarna 812000008

KLIP RING

$9.49

$

In Stock, Qty 10

0

89

Husqvarna 532139991

CONSOLE SHIFT

$

$

Not available

90

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

100

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0
