YTH 180 (954001082-A) - Husqvarna Yard Tractor (1994-07) Seat Assembly Parts Diagram

Yard Tractor

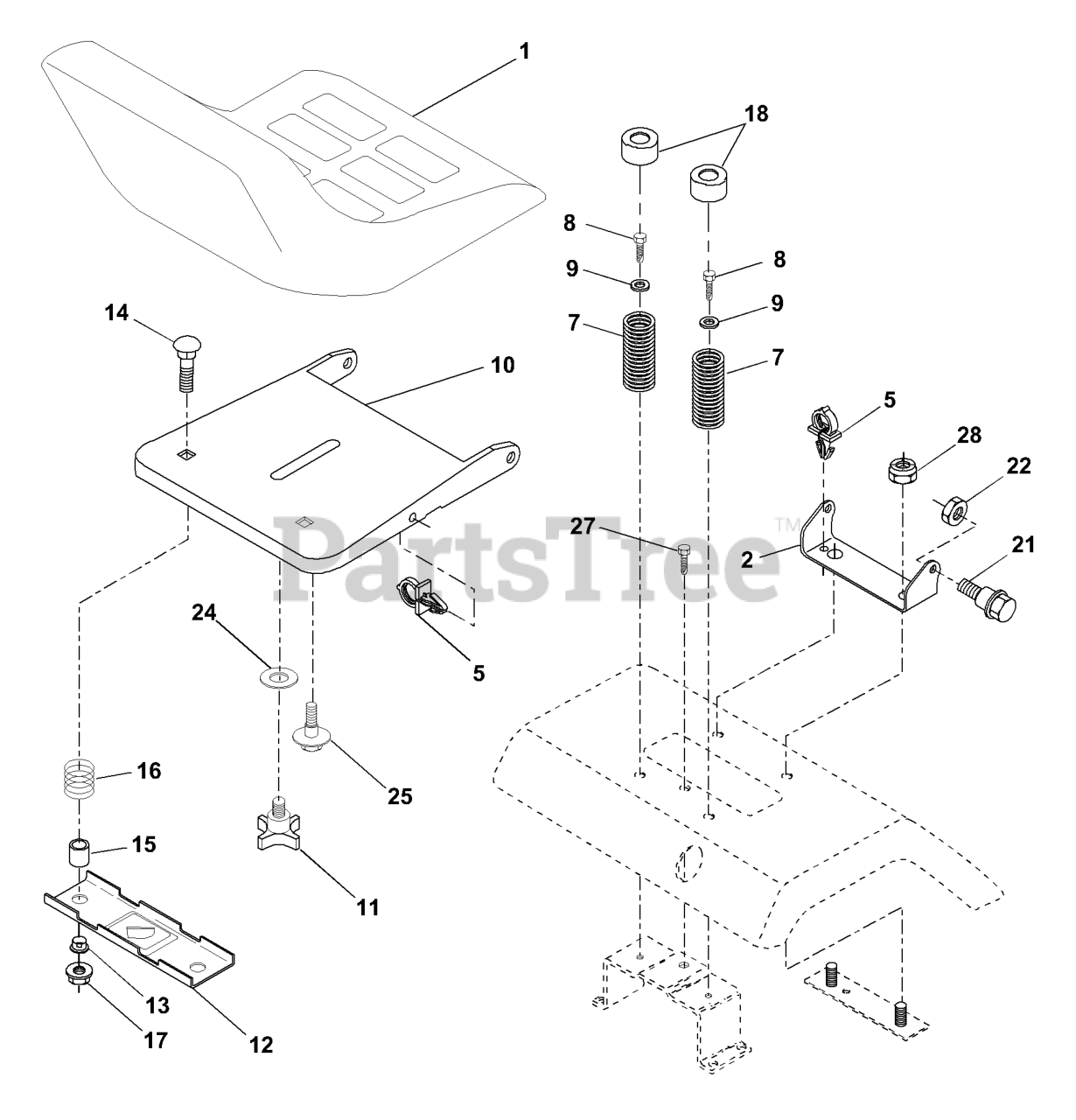

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532124186

SEAT
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532140551

SEAT PIVOT BRKT
(Superseded to 531152401)

$11.99

$

In Stock, only 3 left!

0

5

Husqvarna 532145006

PUSH CLIP

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 817490508

Screw Hwsh Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

9

Husqvarna 819131614

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 532140552

SEAT PAN
(Superseded to 532195530)

$

$

Not available

11

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

BUSHING

$

$

Not available

14

Husqvarna 872050411

Bolt Rdhd Sht Nk 1/4-20x1-3/8

$

$

Not available

15

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 532123740

SPRING COMPRESSED

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532124238

CAP SPRING

$

$

Not available

21

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$4.99

$

In Stock, Qty 16

0

22

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

24

Husqvarna 819171912

WASHER

$4.99

$

In Stock, Qty 11

0

25

Husqvarna 532127018

BOLT,SHOULD

$5.99

$

In Stock, only 1 left!

0

27

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 873680600

LOCKNUT

$

$

Not available
