YTH 180 (954002761-A) - Husqvarna Yard Tractor (1994-10) Electrical Parts Diagram

Yard Tractor

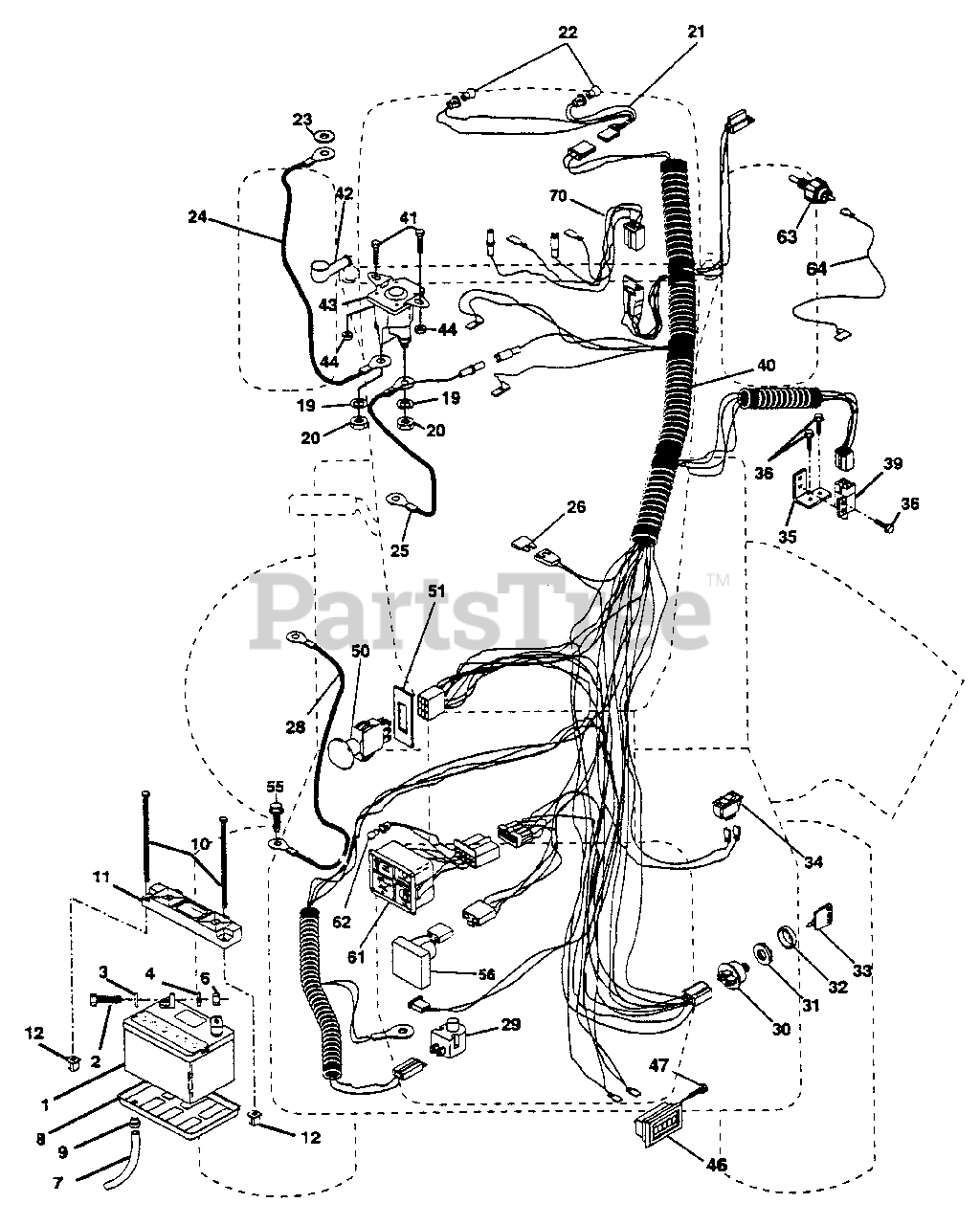

Electrical Parts Diagram

  • Title

1

Husqvarna 532144926

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt, Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

3

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Gauge

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532007697

Tube, Tray, Battery

$

$

Not available

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, BTR FRT 1/4-20 x 7-1/2 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532145209

Holddown Battery Dash Mount
(Superseded to 532150109)

$

$

Not available

12

Husqvarna 532145769

Nut, Push Nylon Battery FRT 1/4"
(Superseded to 532150177)

$

$

Not available

19

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 873350400

Nut, Hex, Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532136850

Harness, Socket, Light

Note: (Includes Key #11)

$

$

Not available

22

Husqvarna 532004152

Bulb, Light

$4.99

$

In Stock, Qty 20+

0

23

UNKNOWN

$

$

Not available

24

Husqvarna 532146148

Cable, Starter, 6 Ga W/16 Wire 22" Red

$18.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146136

Cable, Battery

$

$

Not available

26

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532145491

Cable, Battery

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$10.99

$

In Stock, Qty 18

0

30

Husqvarna 532144921

Switch, Ignition
(Superseded to 532158913)

$67.99

$

In Stock, only 2 left!

0

31

Husqvarna 532140400

Nut, Ignition
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

Cover, Switch, Ignition

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532140401

Key, Molded

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch, Light

$8.99

$

In Stock, Qty 11

0

35

Husqvarna 532108236

Bracket Switch Interlock

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817021008

Screw, Hex Tap #10-24 UNC

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532109553

Switch, Interlock (4 Terminal)
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

40

Husqvarna 532146061

Harness, Ignition

$

$

Not available

41

Husqvarna 871110408

Bolt, Hex 1/4-20 x 1/2 Grade 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 20+

0

44

Husqvarna 873800400

Nut, Lock W/Insert 1/4-20 UNC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532110940

Meter, Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Husqvarna 817011008

Screw #10-24 x 1/2

$

$

Not available

49

Husqvarna 811151000

Washer Lock Internal Tooth 5/8

$

$

Not available

50

Husqvarna 532140404

Switch, P.T.O.
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

Ring, Retainer, Pto

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532127385

Sensor, Low Voltage

$

$

Not available

61

Husqvarna 532126519

Package, Light

$

$

Not available

62

Husqvarna 532110143

Bulb, Light Package

$

$

Not available

63

Husqvarna 532142320

Switch, Engine Oil Pressure

$23.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532144222

Wire Lead Sentry Oil Vanguard

$

$

Not available

70

Husqvarna 532144228

Harness, Engine

$14.99

$

Usually ships in 3-10 days

0
