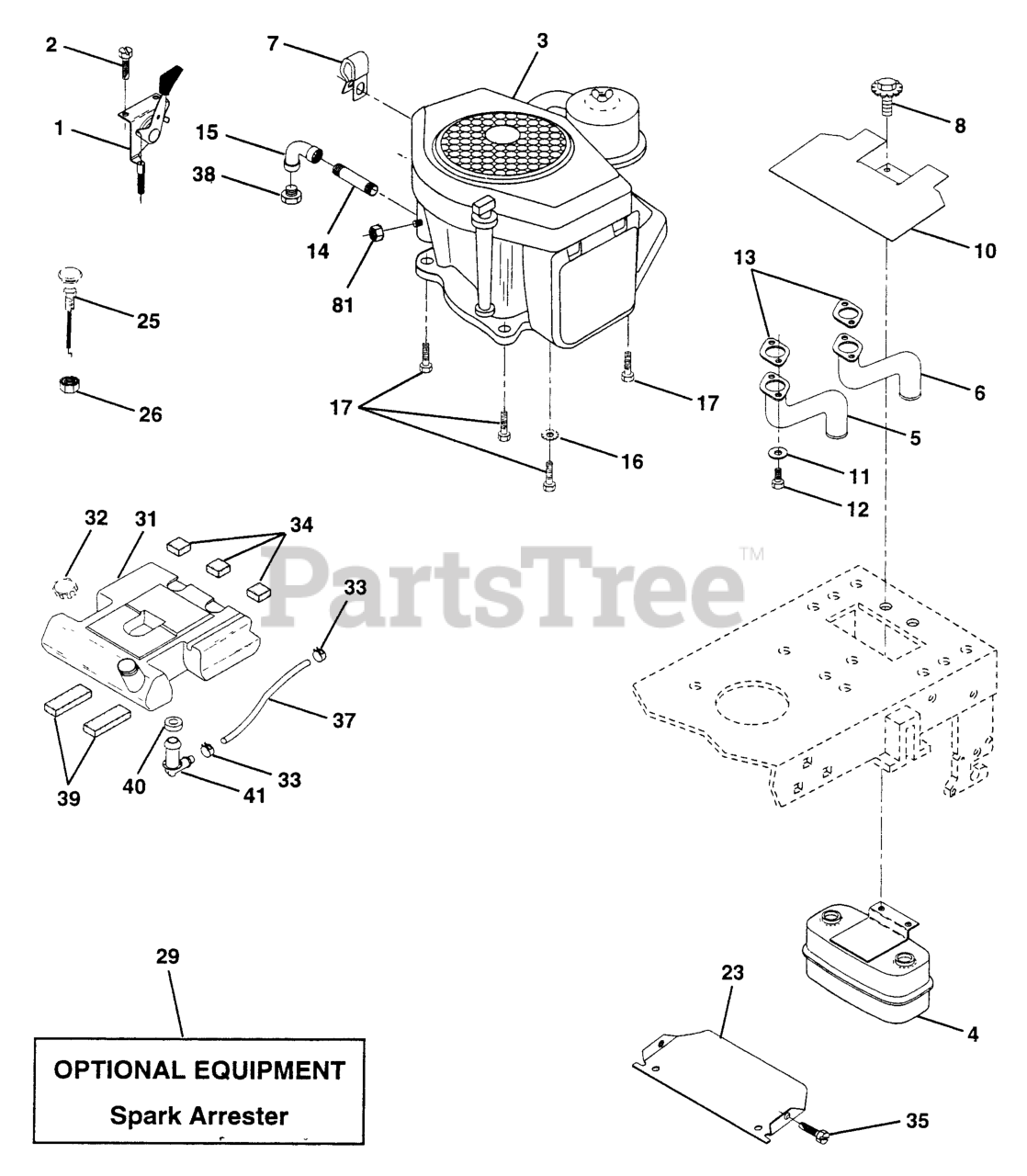

YTH 180 (954140010-B) - Husqvarna Yard Tractor (1996-12) Engine Parts Diagram

Yard Tractor

Engine Parts Diagram

  • Title

1

Husqvarna 532155274

CONTROL THROTTLE
(Superseded to 532170863)

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

3

Engine, Kohler CV18S

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

In Stock, Qty 7

0

5

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$26.99

$

In Stock, Qty 14

0

6

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$22.99

$

In Stock, Qty 11

0

7

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

8

Husqvarna 532150176

BOLT HEX WASHER HD 5/16-18
(Superseded to 532171877)

$5.99

$

In Stock, Qty 12

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$13.99

$

Usually ships in 3-10 days

0

11

Washer Lock Hvy Hlcl 1/4

Note: (Order from Engine Manufacturer)

$

$

Not available

12

Bolt, Fin Hex 1/4-20 x 3/4

Note: (Order from Engine Manufacturer)

$

$

Not available

13

Muffler Gasket

Note: (Order from Engine Manufacturer)

$

$

Not available

14

Husqvarna 813280336

Nipple Pipe 3/8 Npt X 4-1/2"

$

$

Not available

15

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

23

Husqvarna 532156123

SHIELD HEAT

$

$

Not available

25

Husqvarna 532145996

CONTROL, CHOKE

$

$

Not available

26

Husqvarna 873920600

Nut, Keps 3/8-24 Unf

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532153630

FUEL TANK
(Superseded to 532157103)

$

$

Not available

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

37

Husqvarna 532124923

HOSE T
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532139277

STEM FUEL TANK

$7.99

$

In Stock, Qty 20+

0

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0
