YTH 180 (954140010-D) - Husqvarna Yard Tractor (1997-01) MOWER DECK / CUTTING DECK Parts Diagram

Yard Tractor

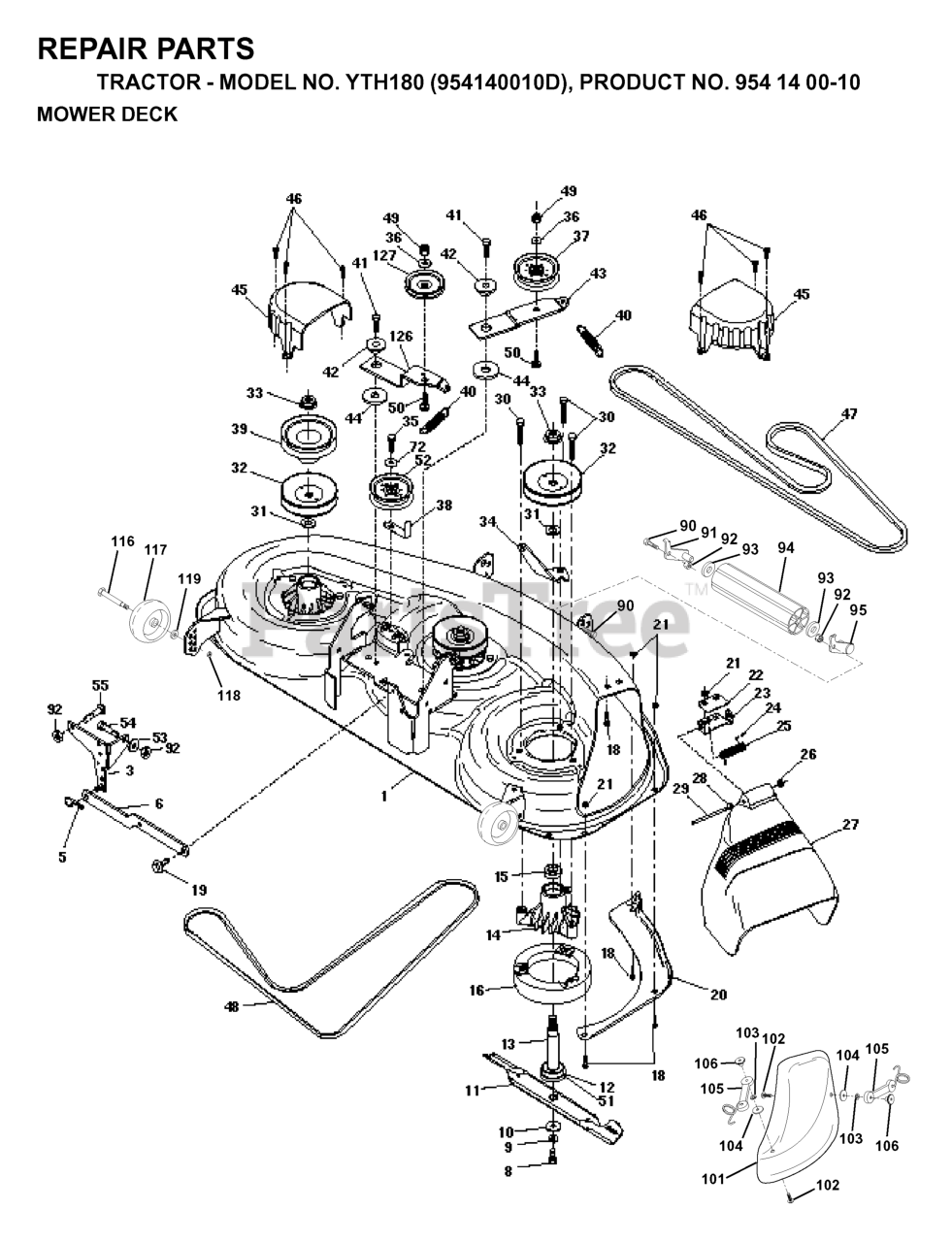

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

49

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532145579

COVER.MULCH.46"3-BLADE.(2 2)

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532149287

TORSION SPRING
(Superseded to 532123713)

$5.99

$

In Stock, Qty 9

0

34

Husqvarna 532144945

ANCHOR, SPRING DECK 46"

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

16

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$7.49

$

In Stock, Qty 10

0

103

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

105

532160793

LATCH ASSY

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532144959

BELT V SECONDARY

$42.99

$

In Stock, Qty 20+

0

38

Husqvarna 532156086

KEEPER.BELT.IDLER

$8.99

$

In Stock, Qty 12

0

54

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 12

0

45

Husqvarna 532145059

COVER MANDREL 46

$

$

Not available

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532157788

DEFLECTOR SHIELD
(Superseded to 532166883)

$

$

Not available

36

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

90

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, Qty 12

0

127

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

- -

Husqvarna 532143651

KIT.MANDREL.ASM.44"/46/50"SRVC

$100.99

$

In Stock, Qty 8

0

39

Husqvarna 532144917

PULLEY.DRIVEN.DECK.46"

$31.99

$

In Stock, only 1 left!

0

10

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 532144949

ARM IDLER DECK 46"

$

$

Not available

44

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 17

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, Qty 5

0

11

Husqvarna 532152443

MULCH BLADE 46"

$15.99

$

In Stock, Qty 7

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532156493

PULLEY IDLER FLAT 46 PRI DRIVE
(Superseded to 532173901)

$

$

Not available

72

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, Qty 5

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$10.99

$

In Stock, Qty 20+

0

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138457

BRACKET SWAY BAR

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

106

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

102

Husqvarna 871161010

SCREW
(Superseded to 871081010)

$3.99

$

In Stock, Qty 20+

0

126

Husqvarna 532144948

ARM IDLER PRIM 46

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532137273

SPRING.SEC.44"VEN

$7.49

$

In Stock, Qty 11

0

53

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 4 left!

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532156948

46" MOWER ASSEMBLY
(Superseded to 532176026)

$

$

Not available

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 13

0

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

In Stock, Qty 20+

0

48

Husqvarna 532139573

V-BELT.PRMRY 46/50 VENT.BLK BK

$49.99

$

In Stock, Qty 6

0

104

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 18

0

20

Husqvarna 532145055

BAFFLE, VORTEX MOWER 46"

$9.99

$

In Stock, only 1 left!

0

55

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

41

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0
