YTH 180 (954140010-G) - Husqvarna Yard Tractor (1998-10) ENGINE Parts Diagram

Yard Tractor

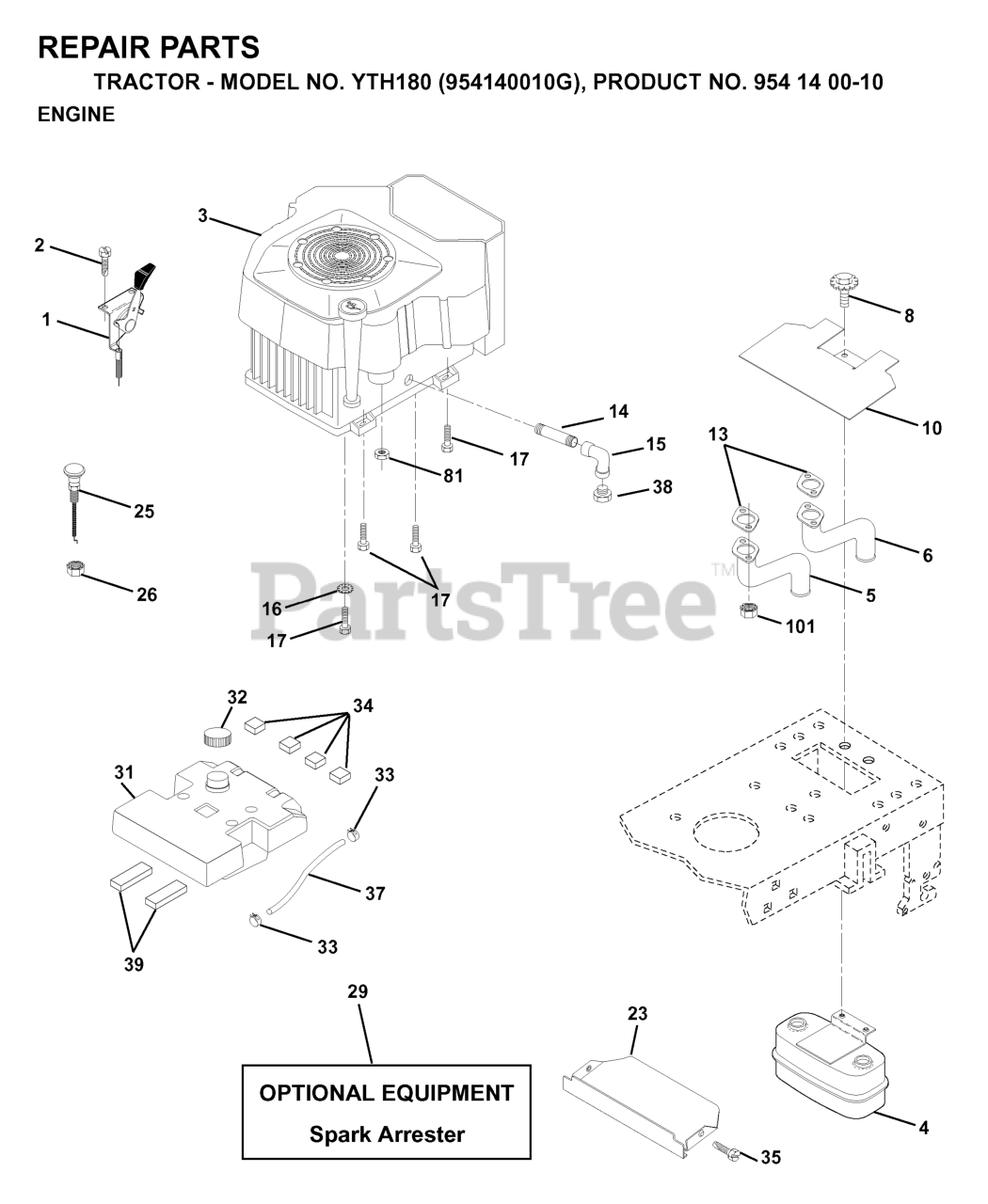

ENGINE Parts Diagram

  • Title

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

In Stock, only 1 left!

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$

$

Not available

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

15

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, only 3 left!

0

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 8

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

8

Husqvarna 532150176

BOLT HEX WASHER HD 5/16-18
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532145996

CONTROL, CHOKE

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$26.99

$

In Stock, only 2 left!

0

37

Husqvarna 532124923

HOSE T
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$22.99

$

In Stock, only 2 left!

0

31

Husqvarna 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

23

Husqvarna 532159880

PROTECTOR

$

$

Not available

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

14

Husqvarna 813280336

Nipple, Pipe 3/8 NPT x 4-1/2

$

$

Not available

1

Husqvarna 532155274

CONTROL THROTTLE
(Superseded to 532170863)

$

$

Not available
