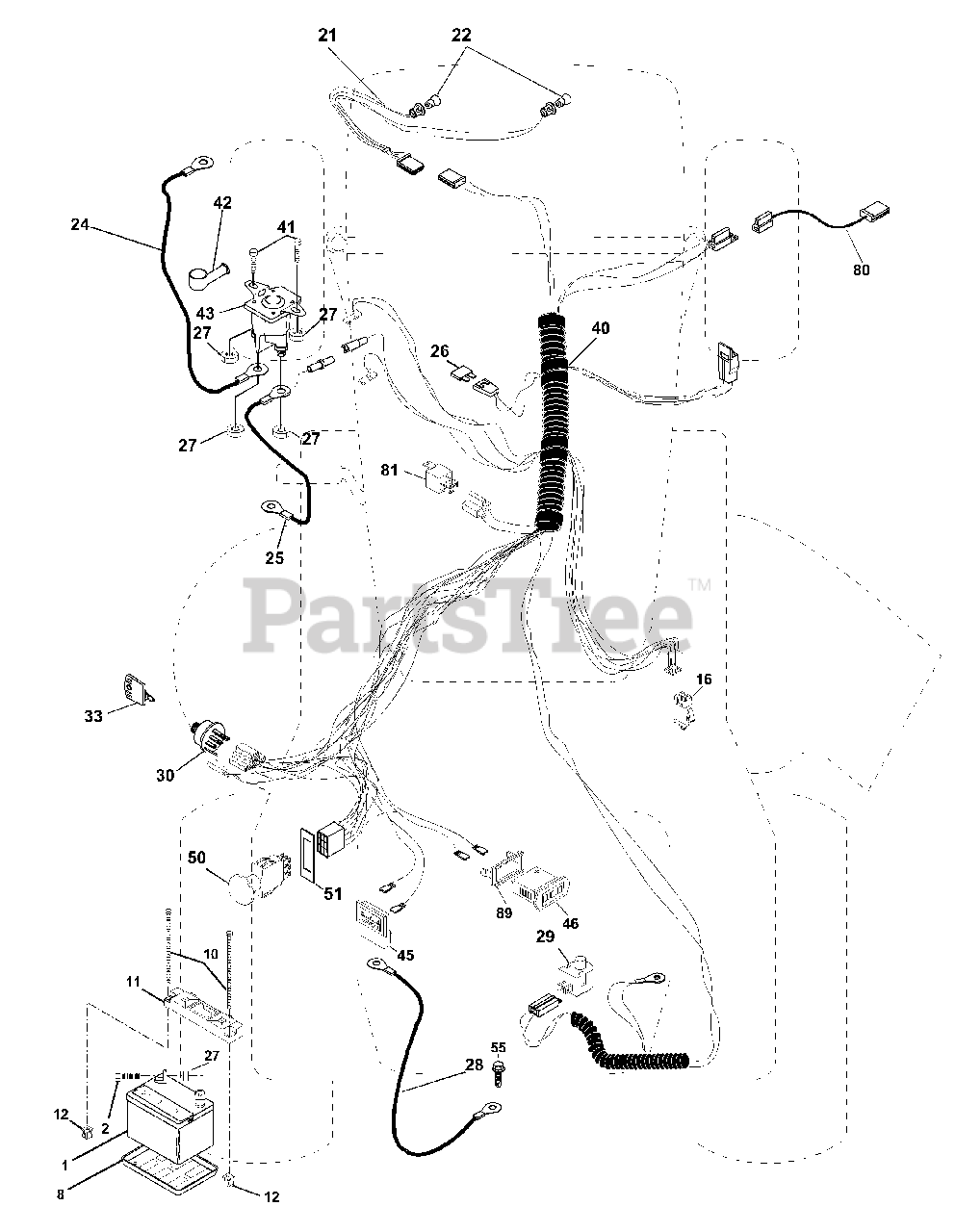

YTH 180 (954140109-B) - Husqvarna Yard Tractor (1999-11) Electrical Parts Diagram

Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery 12 Volt 35 AMP
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532124886

Tray Battery
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt Brt Frt 1/4-20 x 75 Ainc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut Push Nylon 1/4" Battery Frt
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532153664

Switch Interlock Push-In
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

20

Husqvarna 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532166181

Harness Asm Light W/4152j

$

$

Not available

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124780

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146148

Cable Battery 6 Ga 22" red w/16 wire

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

Fuse 15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

Cable Ground 6 Ga 21" black

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532160784

Switch Plunger Nc Gray

$18.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532163968

Switch Ign
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532170221

Harness Ign.
(Superseded to 532179724)

$157.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

45

Husqvarna 532122822

Ammeter Rectangular 15 Amp

$18.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

Meter Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532169417

Switch PTO 3 PDT Black Delta
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

Ring Retainer TTO

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1-1/2 Tyt
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532146685

Harness Clutch Evx

$26.99

$

In Stock, only 4 left!

0

81

Husqvarna 532109748

Relay Asm.

$34.99

$

In Stock, only 1 left!

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0
