YTH 180 (954170023-C) - Husqvarna Yard Tractor (2000-03) ELECTRICAL Parts Diagram

Yard Tractor

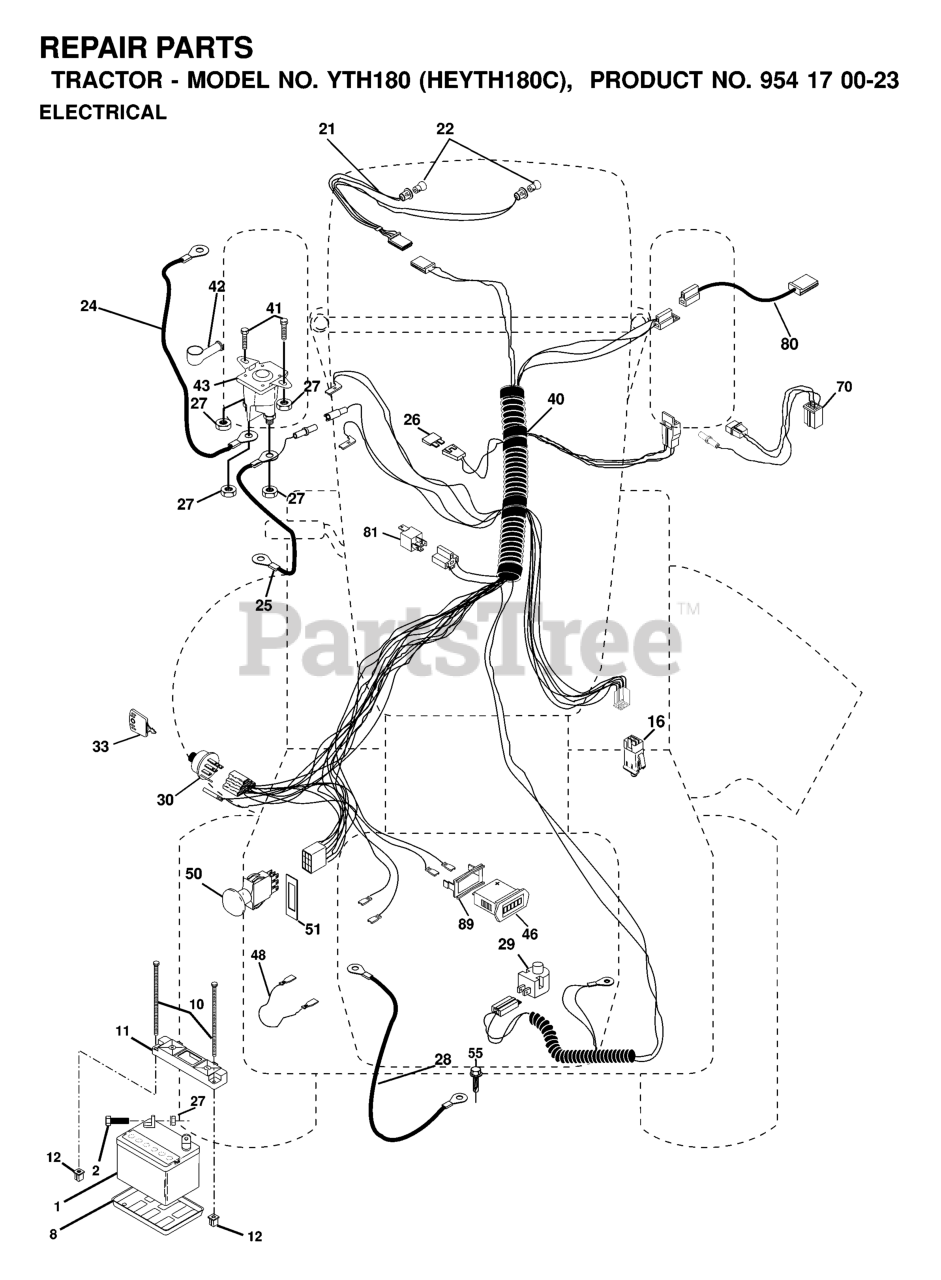

ELECTRICAL Parts Diagram

  • Title

26

Husqvarna 532166180

FUSE 15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, Qty 11

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

70

Husqvarna 532170247

NEEDS DESCRIPTION

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$11.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 19

0

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$15.99

$

In Stock, Qty 20+

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

80

Husqvarna 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 3 left!

0

50

Husqvarna 532169417

PTO SWITCH
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532166181

HARNESS

$

$

Not available

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

40

Husqvarna 532170221

HARNESS IGN.
(Superseded to 532179724)

$157.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

RELAY.ASSY.T

$34.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

30

Husqvarna 532163968

SWITCH IGN
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

In Stock, only 1 left!

0

25

Husqvarna 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0
