YTH 180 (954830134-A) - Husqvarna Yard Tractor (1995-10) TRANSMISSION Parts Diagram

Yard Tractor

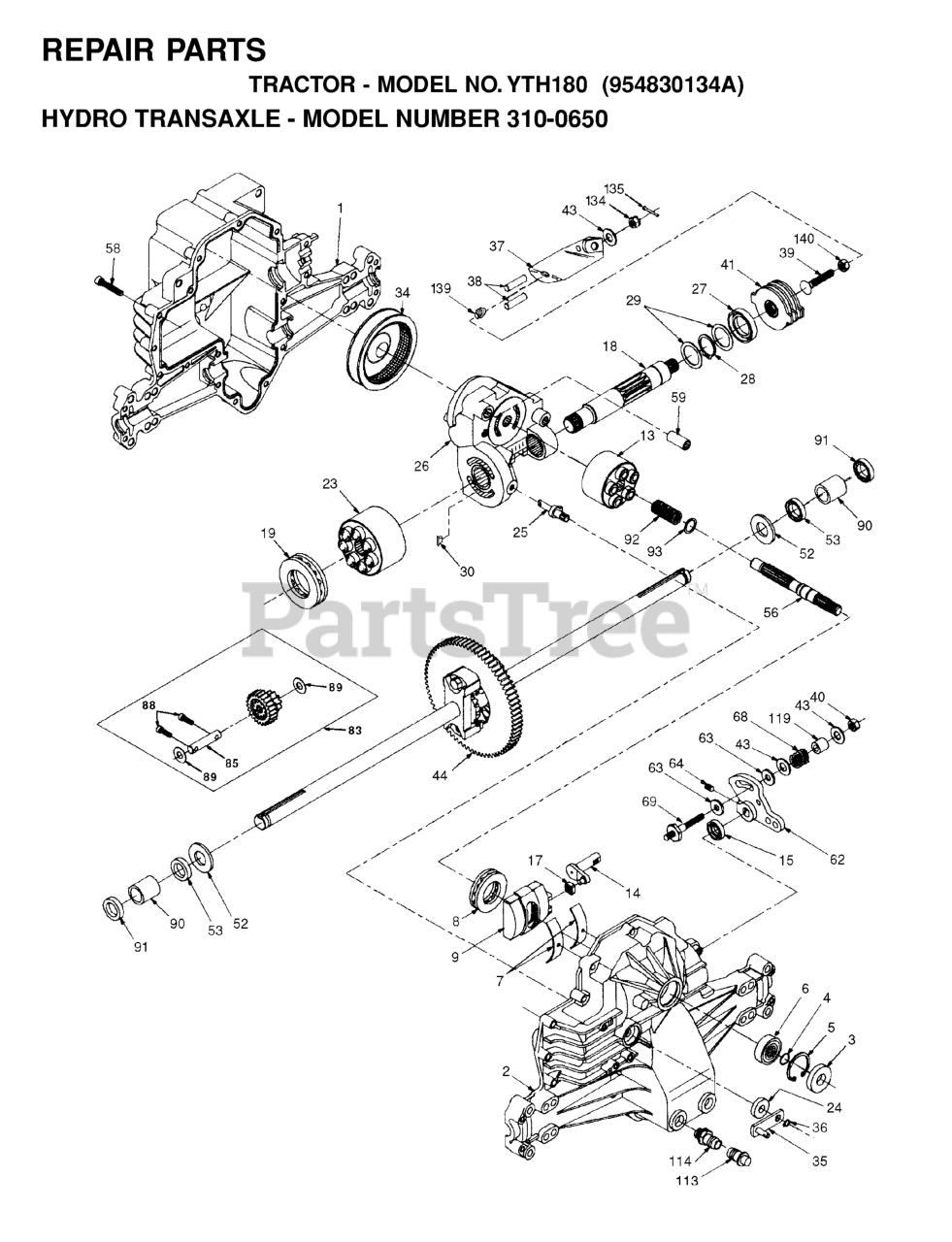

TRANSMISSION Parts Diagram

  • Title

59

Husqvarna 532142965

PIN

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532150771

BEARING, THRUST 50551

$36.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532144610

STUD 5/16-24 50284

$9.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532142967

DAMPENER PUCK

$7.49

$

Usually ships in 3-10 days

0

92

Husqvarna 532142977

SPRING 2003014

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532142934

BALL BEARING

$60.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532142918

O-RING KIT 70110

$

$

Not available

1

Husqvarna 532142930

LOWER HOUSING

$

$

Not available

134

Husqvarna 532144607

NUT.CAS.HYD.44142
(Superseded to 584281701)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532142931

HOUSING UPPER 70255

$424.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532142920

SCREW.SET.50018

$9.99

$

Usually ships in 3-10 days

0

140

Husqvarna 532150776

NUT, HEX 5/16-24

$

$

Not available

93

Husqvarna 532142978

WASHER

$7.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532142966

CONTROL ARM 50254

$40.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532150829

KIT SVC DIFFRENTIAL 70130

$970.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532150775

SPRING, COMPRESSION 50431

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532142973

CAPSCREW

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532142935

CRADLE BEARING

$30.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532142928

RING RETAINING 2003016

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532142945

LIP SEAL

$

$

Not available

90

Husqvarna 532142975

SLEEVE.BEARING 50118

$27.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532142963

SHAFT.INPUT.50005

$157.99

$

Usually ships in 3-10 days

0

135

Husqvarna 532144608

ID DOT HYDD
(Superseded to 532122656)

$

$

Not available

23

Husqvarna 532142944

BLOCK, CYL ASSY

$

$

Not available

119

Husqvarna 532142980

SPACER.HYDRO GEAR 50278
(Superseded to 584282801)

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532142991

WASHER.HYDRO-GEAR 44875

$7.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532142976

RP SEAL, WIPER
(Superseded to 532169054)

$18.99

$

In Stock, only 2 left!

0

14

Husqvarna 532142939

TRUNNION ARM

$218.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532142952

BYPASS ARM

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532142932

SEAL.LIP.H-G.(9008000-0128)

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532142941

SLOT GUIDE

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532142937

SWASHPLATE (2003087)

$160.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532142933

RING.RETAINING.(2003052)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532150772

SHAFT, MOTOR

$

$

Not available

58

Husqvarna 532142964

BOLT #44876

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532142950

WASHER

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532142949

RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532142955

ACTUATING PIN 44891

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532142951

ELEMENT, OIL FILTER
(Superseded to 532169893)

$121.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532142946

BYPASS ACTUATOR

$18.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532150773

BEARING, THRUST 50552

$48.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532142961

SEAL.HYDRO.53901

$8.99

$

In Stock, only 1 left!

0

43

Husqvarna 532142884

WASHER .34X.88X.06.44130

$5.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532142917

CAP, VENT ASSY
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532150778

LOCKNUT, HEX 5/16-24

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532142969

SPRING HELICAL COMP 50277

$

$

Not available

27

Husqvarna 532142948

LIP SEAL

$9.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532150806

JACKSHAFT

$23.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532150774

CENTER SECTION ASS'Y KIT
(Superseded to 532169051)

$461.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532142971

JACK SHAFT ASSY

$188.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532142974

WASHER 50132

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532142940

LIP SEAL

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532142938

BLOCK, CYL ASSY
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142954

ACTUATING ARM
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532142958

BRAKE ROTOR 70135 HYDRO-GEAR

$103.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532142953

RETAINING RING 44870

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532150777

BOLT 5/16-24 X 1-3/4

$5.99

$

Usually ships in 3-10 days

0
