YTH 1842 (917243820) - Husqvarna 42" Yard Tractor (2017-12) DRIVE Parts Diagram

42" Yard Tractor

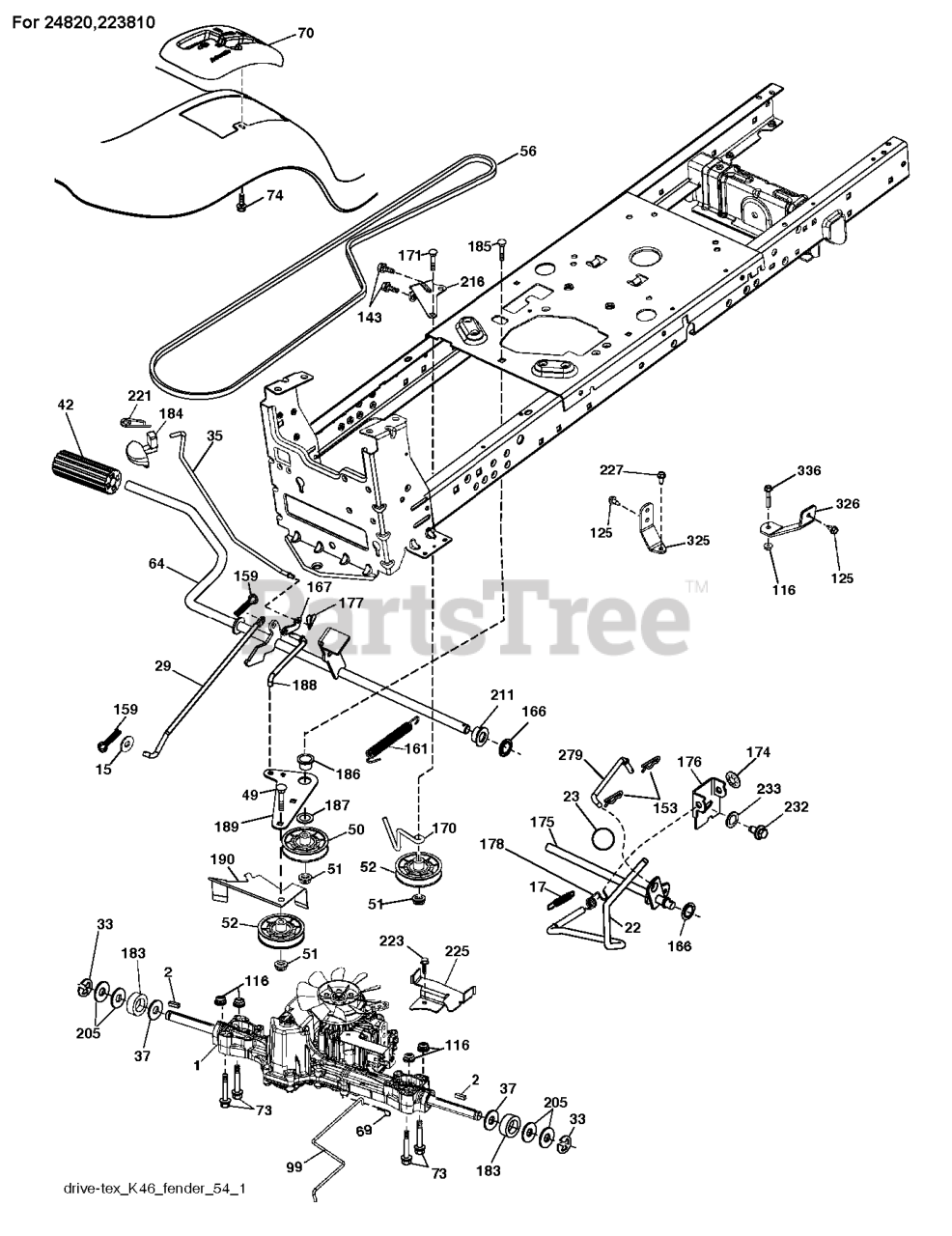

DRIVE Parts Diagram

  • Title

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, Qty 11

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

223

Husqvarna 598662601

BOLTS

$2.49

$

Usually ships in 3-10 days

0

211

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

99

Husqvarna 582404501

ARM.PIVOTING.TCRD.GEN2.5.BAGGE

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532406208

SHAFT ASM SHIFT

$24.99

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

279

Husqvarna 532406207

LINK.SHIFT.T/A.K46.FEND.TX

$15.99

$

In Stock, only 1 left!

0

42

Husqvarna 532008883

PEDAL COVER
(Superseded to 510089501)

$6.49

$

In Stock, Qty 16

0

49

Husqvarna 596136201

Bolts

$3.99

$

In Stock, Qty 8

0

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 590605902

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

$6.49

$

Usually ships in 3-10 days

0

187

Husqvarna 596135501

Washers

$3.99

$

In Stock, Qty 17

0

29

Husqvarna 532403806

ROD.BRAKE.K46

$31.99

$

In Stock, only 1 left!

0

143

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

70

Husqvarna 532439971

CONSOLE.SHIFT.STL.HYD.TEX.GREY

$15.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

Usually ships in 3-10 days

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$4.99

$

In Stock, Qty 13

0

56

Husqvarna 592855201

Belts

$31.99

$

In Stock, Qty 20+

0

74

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$7.49

$

In Stock, Qty 13

0

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

73

Husqvarna 596136501

Bolts

$3.99

$

In Stock, only 4 left!

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

326

Husqvarna 585670802

BRCKT.PNT.TRQ.STP.46.20TIRE.RH

$

$

Not available

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

In Stock, only 2 left!

0

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

233

Husqvarna 596135201

Washers

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

225

Husqvarna 532403319

KEEPER.BELT.TRANSAXLE.K46

$3.49

$

In Stock, only 3 left!

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 16

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

325

Husqvarna 585668502

BRACKET.TRQ.STP.46.20".TIRE.LH

$3.99

$

Usually ships in 3-10 days

0

171

Husqvarna 596136301

Bolts

$3.99

$

In Stock, Qty 20+

0

336

Husqvarna 587259602

Bolts

$3.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

153

Husqvarna 532004497

RETAINER M

$10.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110622

BOLT

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

232

Husqvarna 596238601

Bolts

$3.99

$

In Stock, only 2 left!

0

227

Husqvarna 596135901

Bolts

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532197660

ROD.SHIFT.FENDER.TLT.2006

$182.99

$

Usually ships in 3-10 days

0

159

Husqvarna 596029501

Pins

$3.99

$

In Stock, only 1 left!

0

177

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$4.99

$

In Stock, Qty 6

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

1

000000000

Note: Transaxle, Tufftorq K46BA (532448348)

$

$

Not available
