YTH 1842 (954569790-C) - Husqvarna 42" Yard Tractor (2003-02) Chassis And Enclosures Parts Diagram

42" Yard Tractor

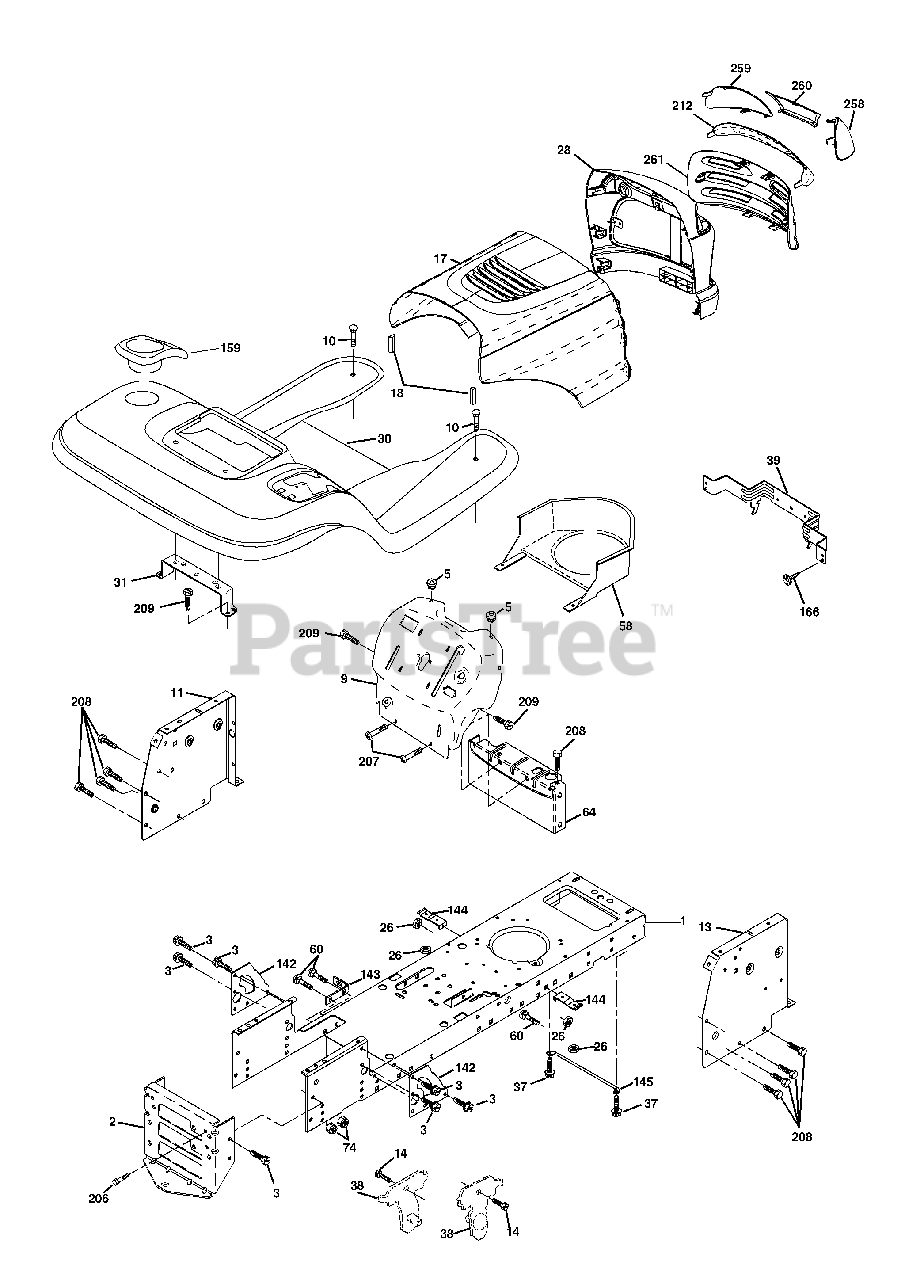

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis Stamping
(Superseded to 579841401)

$241.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar, 12 Ga.

$40.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532155272

Bumper Hood/Dash

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 532171853

Dash Slkscr
(Superseded to 532168336)

$

$

Not available

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532174996

Panel Dash Lh

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532181719

Panel Dash Rh
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532185211

Hood LT/PL
(Superseded to 532185682)

$74.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532184921

Bumper Hood

$7.49

$

In Stock, Qty 10

0

26

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532185292

Grille/Lens Asm

$194.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532181001

Fender Footrest
(Superseded to 583713401)

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

Bracket Fender

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$9.99

$

In Stock, only 2 left!

0

39

Husqvarna 532174714

Bracket Pivot
(Superseded to 532407807)

$26.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Air Duct Engine P/L

$

$

Not available

60

Husqvarna 872140606

Bolt Rd Hd Sqnk 3/8-16 Unc x 3/4

$

$

Not available

64

Husqvarna 532154798

Dash Lower STLT

$31.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

Plate Reinforcement STLT

$7.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532154966

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.49

$

In Stock, Qty 10

0

144

Husqvarna 532175582

Bracket Footrest

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532166508

Cupholder
(Superseded to 532155123)

$

$

Not available

166

Husqvarna 532171875

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$12.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 20+

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2

$6.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 817000612

Screw Hex Wsh Thdr. 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

212

Husqvarna 532183548

Insert Lens Reflective

$

$

Not available

258

Husqvarna 532185214

Lens Husq Laser LT Clear RH
(Superseded to 532183379)

$9.99

$

In Stock, only 1 left!

0

259

Husqvarna 532185213

Lens Husq Laser LT Clear LH
(Superseded to 532183378)

$9.99

$

In Stock, only 1 left!

0

260

Husqvarna 532185429

Cover Lens

$

$

Not available

261

Husqvarna 532185433

Insert Grille

$24.99

$

Usually ships in 3-10 days

0

Husqvarna 532005479

Plug Button

$4.99

$

Usually ships in 3-10 days

0
