YTH 1846 (917223840) - Husqvarna 46" Yard Tractor (2017-12) ENGINE Parts Diagram

46" Yard Tractor

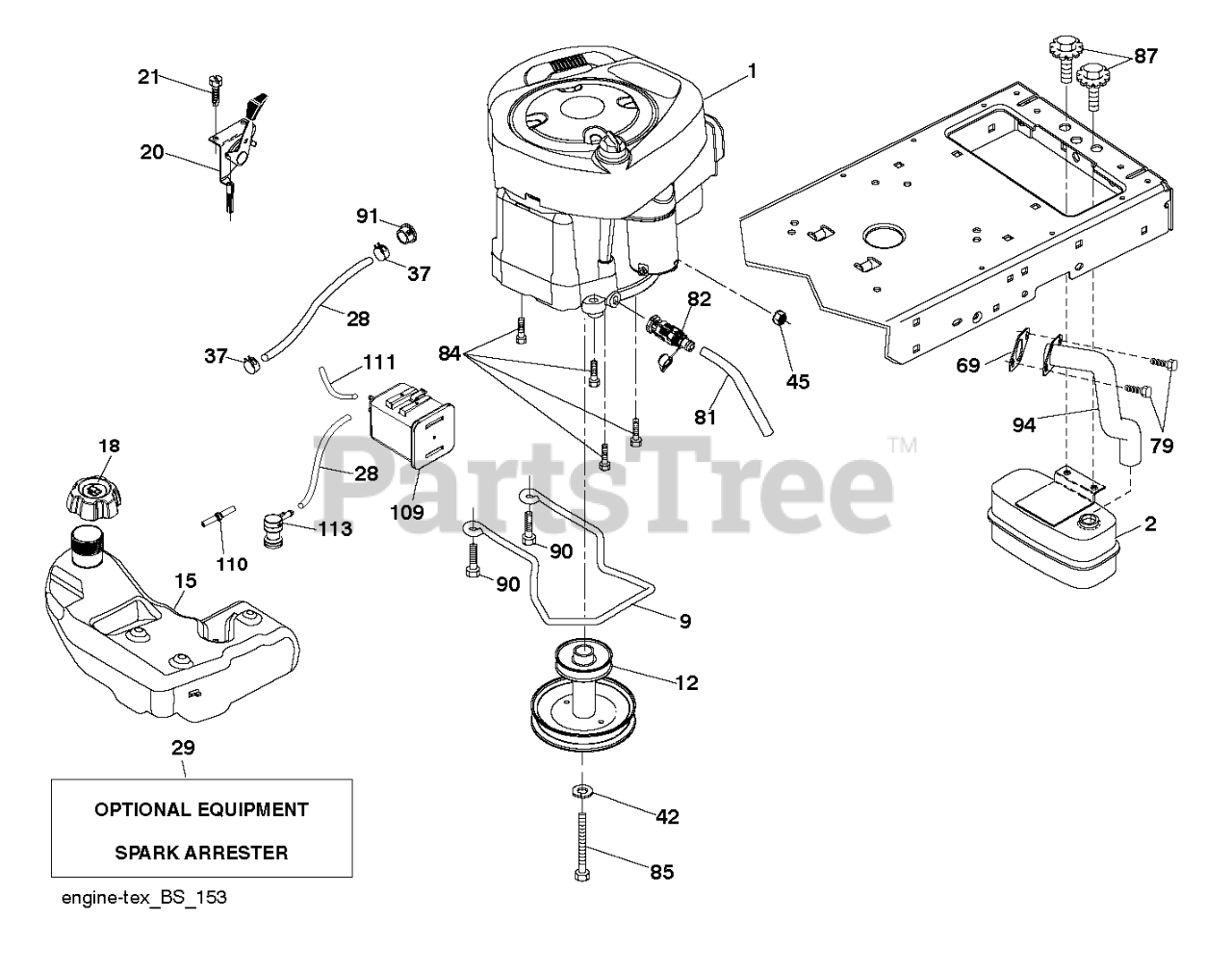

ENGINE Parts Diagram

  • Title

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 2 left!

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$26.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 596501502

Keepers

$13.99

$

In Stock, only 2 left!

0

1

000000000

Note: ENGINE B&S MODEL NO. 33R777-0009-G1 (588640901)

$

$

Not available

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$34.99

$

Usually ships in 3-10 days

0

18

Husqvarna 529989703

FUEL CAP

Note: Fits 2.00" filler neck

$22.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

111

Husqvarna 596941501

TUBE.PURGE.FUEL.1875
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0

15

Husqvarna 599837601

FUEL TANKS
(Superseded to 598703202)

Note: Fits 2.75" filler neck

$433.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.49

$

In Stock, only 4 left!

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

$51.99

$

In Stock, only 2 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 11

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.49

$

In Stock, Qty 9

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$26.99

$

In Stock, only 2 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$13.99

$

In Stock, only 2 left!

0

12

Husqvarna 586728901

PULLEY.ENGINE
(Superseded to 532405472)

$43.99

$

In Stock, only 2 left!

0

45

Husqvarna 596133601

Hardware

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 599502201

Fuel Caps

Note: Fits 2.75" filler neck

$85.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

79

Husqvarna 596134201

Screws

$3.49

$

In Stock, Qty 20+

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, Qty 18

0

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0
